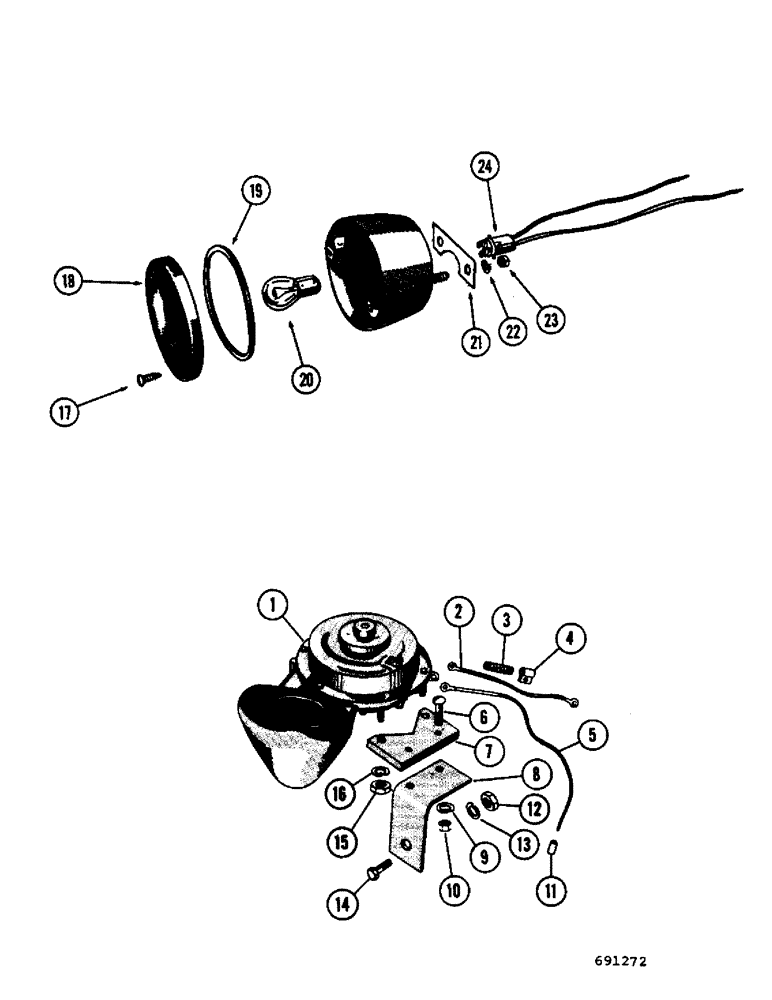

Запчасти Case W7 (138) - A9974 HORN, A16732 COMBINATION STOP AND TAIL LAMP (04) - ELECTRICAL SYSTEMS

1

A9974

HORN ASSEMBLY - order A56136

1шт.

2

A13792

WIRE - horn to steering column (Black 8")

1шт.

3

A12458

SLEEVE

LOOM -, Serial Range: clip-wire

3шт.

4

A7922

CLIP

- wire and loom

3шт.

5

A13791

WIRE - horn to conn. (Black 40")

1шт.

6

174-100

SCREW,Sl Rnd Hd, #10 - 32 x 3/4"

RHMS - #10 x 32 NC x 3/4"

2шт.

7

A12490

BLOCK - insulating, horn mounting

1шт.

8

A12489

BRACKET - horn mounting

1шт.

9

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

10

129-27

NUT,Hex, #10 - 32

- hex., #10 - 32 NC

2шт.

11

A27213

CONNECTOR - wire to steering column

1шт.

12

25-146

JAM NUT,Jam, 3/8"-16, G5

- hex., jam, 3/8" - 16 NC

2шт.

13

92-6

LOCK WASHER,3/8"

2шт.

14

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

15

25-114

NUT,1/4"-28, G5

- hex., 1/4" - 28 NF

2шт.

16

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

A16732

LAMP - combination stop and tail (When stock is exhausted, order L10741 lamp for service, Parts list figure 136), Includes: Ref. 17 - 24

2шт.

17

187-553

SCREW,Slotted Pan Hd, #8 x 5/8"

- lens, A16732 combination stop and tail lamp

1шт.

18

B50336

LENS

A16732 combination stop and tail lamp

1шт.

19

A40862

GASKET - lens, A16732 combination stop and tail lamp

1шт.

20

R11078

LAMP

BULB - mfrs. #1034, A16732 combination stop and tail lamp

1шт.

21

A16697

STRAP - mounting, stop and taillight, A16732 combination stop and tail lamp

1шт.

22

92-4

LOCK WASHER,1/4"

WASHER, LOCK, , A16732 combination stop and tail lamp 1/4"

2шт.

23

25-104

NUT,1/4"-20, G5

A16732 Combination stop and tail lamp 1/4"-20, G5

2шт.

24

A16731

PLUG

AND WIRE ASSEMBLY, A16732 combination stop and tail lamp

1шт.
