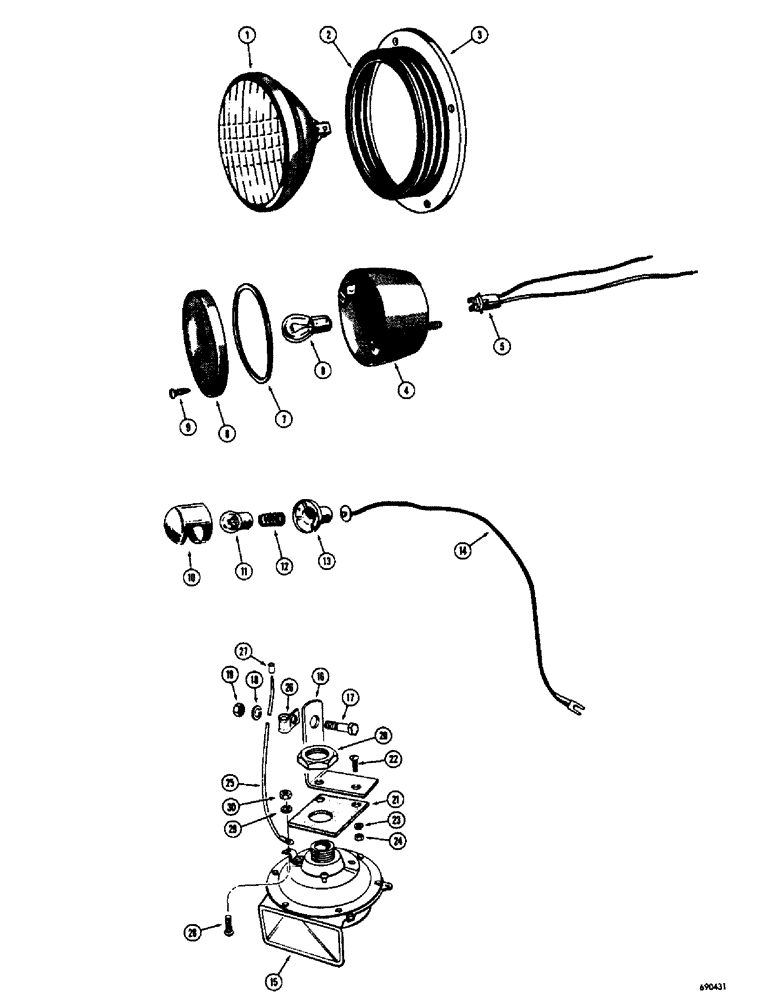

Запчасти Case W7 (136) - A15932 FRONT AND REAR LIGHTS, L10741 STOP LIGHT, A7642 DASH LAMP, A19581 HORN (04) - ELECTRICAL SYSTEMS

A15932

X

LIGHT - front and rear, Includes: Ref. 1 - 3

4шт.

1

A24572

LAMP

UNIT - sealed beam, 12 volt (Includes gasket)

1шт.

2

D31441

RETAINER

RING - cover, rubber

1шт.

3

B50296

RING

BRACKET - light mounting

1шт.

L10741

STOP LIGHT

LIGHT - stop and tail, Includes: Ref. 4 - 9

2шт.

4

NSS

NOT SOLD SEPARAT

BODY - light, L10741 stop light

1шт.

5

NSS

NOT SOLD SEPARAT

SOCKET AND WIRE - light, L10741 stop light

1шт.

6

B50336

LENS

- light, L10741 stop light

1шт.

7

A40862

GASKET - lens, L10741 stop light

1шт.

8

R11078

LAMP

BULB - light, 12 volt, L10741 stop light

1шт.

9

187-1020

SCREW,Cross Hd, #8 x 3/4"

- self-tapping, Phillips head (#8), L10741 stop light

2шт.

A7642

LAMP

LIGHT - dash, A7642 dash lamp, Includes: Ref. 10 - 14

2шт.

10

B50319

COVER - dash light, A7642 dash lamp

1шт.

11

71421

BULB,R5W, 12V, 5W

- dash light, A7642 dash lamp

1шт.

12

B50262

SPRING - socket, A7642 dash lamp

1шт.

13

B50320

SOCKET - dash light, A7642 dash lamp

1шт.

14

A40161

WIRE - connecting, A7642 dash lamp

1шт.

15

A19581

HORN

- warning, A19581 horn

1шт.

16

A12489

BRACKET - horn mounting, A19581 horn

1шт.

17

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

A19581 horn Hex, 3/8"-16 x 1 1/4", G5, Full Thd

1шт.

18

92-6

LOCK WASHER,3/8"

A19581 horn 3/8"

1шт.

19

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC), A19581 horn

1шт.

20

L30866

LOCK NUT

- horn to mounting plate, A19581 horn

1шт.

21

A19582

INSULATOR - horn mounting, A19581 horn

1шт.

22

173-97

SCREW,Sl Rnd Hd, #10 - 24 x 1/2"

- machine, round head (#10 - 24 NC x 1/2"), A19581 horn

2шт.

23

92-3

LOCK WASHER,#10

WASHER, LOCK, , A19581 horn #10

2шт.

24

129-7

NUT,Hex, #10 - 24

- hex. (#10 - 24 NC), A19581 horn

2шт.

25

A13792

WIRE - horn to button control, A19581 horn

1шт.

26

A7922

CLIP

- wire to mounting bracket, A19581 horn

1шт.

27

A27213

CONNECTOR - wire to horn control, A19581 horn

1шт.

28

173-97

SCREW,Sl Rnd Hd, #10 - 24 x 1/2"

- machine, round head (#10 - 24 NC x 1/2"), A19581 horn

1шт.

29

92-3

LOCK WASHER,#10

WASHER, LOCK, , A19581 horn #10

1шт.

30

129-7

NUT,Hex, #10 - 24

- hex. (#10 - 24 NC), A19581 horn

1шт.
