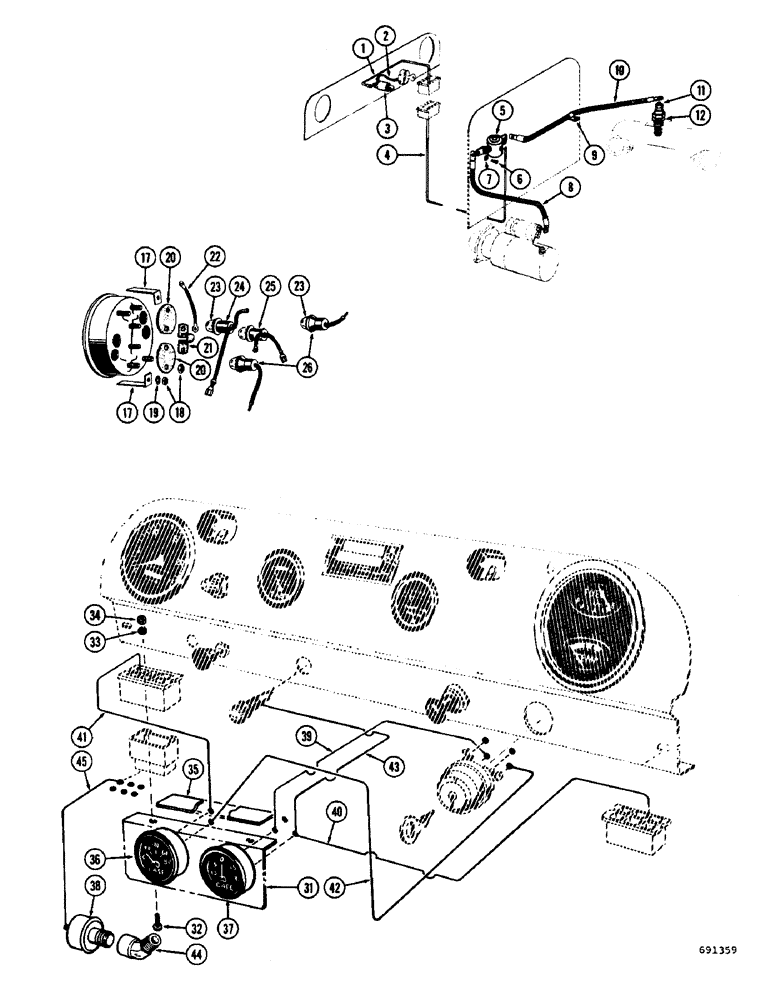

Запчасти Case W7 (134) - MANIFOLD HEATER, A13739 INSTRUMENT CLUSTER, INSTRUMENT GAUGE AUX. PANEL (04) - ELECTRICAL SYSTEMS

1

A13750

WIRE - heater switch to R.H. plug

1шт.

2

A13752

WIRE - starter switch "B" to heater switch

1шт.

3

A30969

SWITCH

- heater, push button

1шт.

4

A14657

WIRE - R.H. socket to solenoid switch (103" long) Red

1шт.

5

A21481

SOLENOID

SWITCH - solenoid, heater

1шт.

6

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

7

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

8

A21483

CABLE

- heater solenoid to starter solenoid (23-1/2" long)

1шт.

9

49838

CLAMP

CLIP - cable to front water manifold bolt

1шт.

10

A21485

CABLE

- heater solenoid to manifold heater (25" long)

1шт.

11

A37775

HEATER

- manifold

1шт.

12

A20916

MANIFOLD GASKET

GASKET - manifold heater

1шт.

A13739

GAUGE ASSY.

CLUSTER ASSEMBLY - instrument

1шт.

17

A14552

CLAMP - insulator, A13739 instrument cluster

2шт.

18

129-7

NUT,Hex, #10 - 24

- hex. (#10 - 24 NC), A13739 instrument cluster

2шт.

19

92-3

LOCK WASHER,#10

WASHER, LOCK, , A13739 instrument cluster #10

6шт.

20

A14551

INSULATOR - round, temperature and fuel gauge, A13739 instrument cluster

2шт.

21

A14550

INSULATOR - temperature gauge to fuel gauge, A13739 instrument cluster

1шт.

22

A14549

WIRE - temperature gauge to fuel gauge, A13739 instrument cluster

1шт.

23

A14553

BULB

- 12 volt (#57), A13739 instrument cluster

4шт.

24

A14548

SOCKET AND WIRE ASSEMBLY - generator warning light, A13739 instrument clust

1шт.

25

A14547

SOCKET AND WIRE ASSEMBLY - oil pressure light, A13739 instrument cluster

1шт.

26

G45029

SOCKET AND WIRE ASSEMBLY - fuel and temperature gauge, A13739 instrument cluster

2шт.

31

A18354

PANEL - instrument, auxiliary, instrument gauge auxiliary panel

1шт.

32

173-240

SCREW - machine, round head (#10 - 32 NF x 3/4"), instrument gauge auxlilary panel

2шт.

33

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, , Instrument gauge auxiliary panel #10

2шт.

34

129-27

NUT,Hex, #10 - 32

- hex. (#10 - 32 NF), instrument gauge auxiliary panel

2шт.

35

A7390

PAD - instrument panel, instrument gauge auxiliary panel

1шт.

36

A19346

ELECTRICAL GAUGE

GAUGE ASSEMBLY - oil pressure, instrument gauge auxiliary panel

1шт.

37

A19348

ELECTRICAL GAUGE

GAUGE ASSEMBLY - ammeter, instrument gauge auxiliary panel

1шт.

38

A35031

SENDER UNIT

SENDING UNIT - oil pressure, instrument gauge auxiliary panel

1шт.

39

A18403

WIRE - ammeter to ignition terminal switch "B", instrument gauge auxiliary panel

1шт.

40

A18717

WIRE - ammeter to wire block, instrument gauge auxiliary panel

1шт.

41

A13743

WIRE - oil gauge to L.H. wire block, instrument gauge auxiliary panel

1шт.

42

A18403

WIRE - oil gauge to ignition switch, instrument gauge auxiliary panel

1шт.

43

A13755

WIRE - ammeter to fuse, instrument gauge auxiliary panel

1шт.

44

221-1401

ELBOW,45º, 1/8"-27, NPT

- street, 45 degrees, instrument gauge auxiliary panel

1шт.

45

A17277

WIRE - oil pressure sender to plug, instrument gauge auxiliary panel

1шт.
