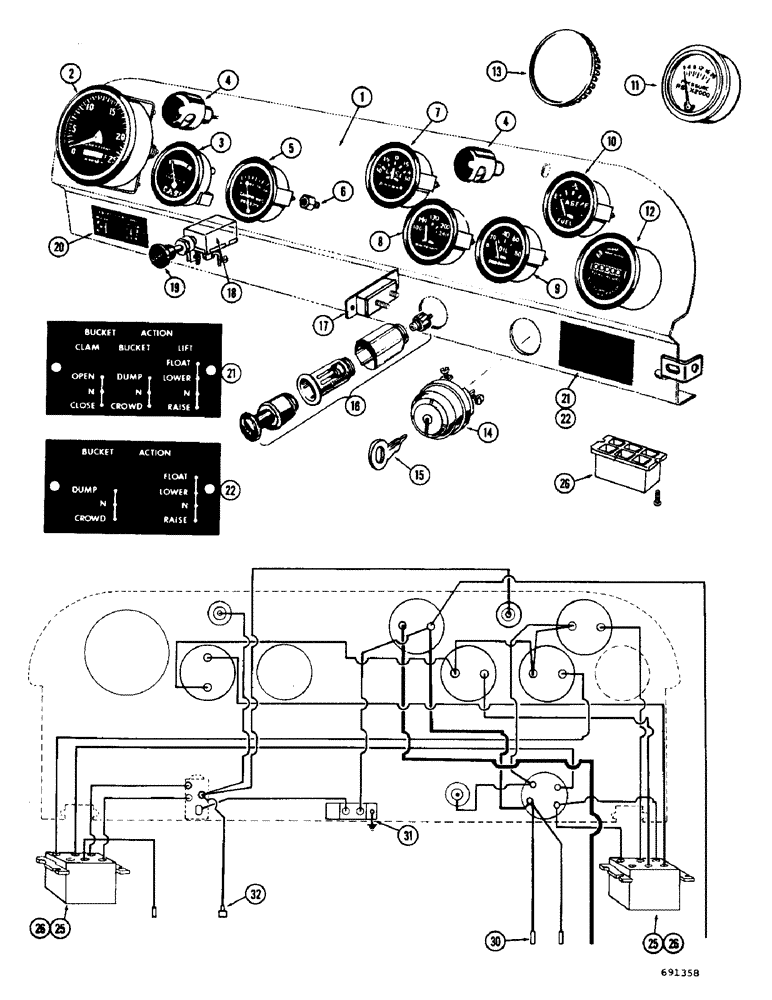

Запчасти Case W7 (132) - INSTRUMENT PANEL, SERIAL NO. 9804742 AND AFTER (04) - ELECTRICAL SYSTEMS

1

L10187

PANEL - instrument

1шт.

2

A11190

TACHOMETER

ASSEMBLY - engine (Includes hourmeter)

1шт.

3

A13756

GAUGE

- converter oil temperature

1шт.

4

A7642

LAMP

ASSEMBLY - dash panel (See parts list figure 136)

2шт.

5

A56447

ELECTRICAL GAUGE

GAUGE - clutch pressure

1шт.

6

222-681

FITTING,5/16"-24 x 1/8" NPT Fem, Comp

COUPLING ASSEMBLY - converter tube to clutch pressure gauge (Flex fitting)

1шт.

NSS

NOT SOLD SEPARAT

COUPLING - flex

1шт.

222-100

TUBE NUT,1/8" Tube

SLEEVE - flex fitting

1шт.

222-110

TUBE NUT,3/8"-24

NUT - flex fitting

1шт.

7

A55699

ELECTRICAL GAUGE

GAUGE ASSEMBLY - ammeter

1шт.

8

A19347

ELECTRICAL GAUGE

GAUGE ASSEMBLY - engine temperature

1шт.

9

A19346

ELECTRICAL GAUGE

GAUGE ASSEMBLY - engine oil pressure

1шт.

10

A19345

ELECTRICAL GAUGE

GAUGE ASSEMBLY - fuel

1шт.

11

A19522

ELECTRICAL GAUGE

GAUGE ASSEMBLY - hydraulic pressure (Optional)

1шт.

12

A19520

HOURMETER

GAUGE ASSEMBLY - hourmeter (Optional)

1шт.

13

205-68

HOLE PLUG BUTTON,2 3/32"

PLUG - button, gauge opening (Used without A19522 or A19520 gauge assemblies)

1шт.

14

A11373

SWITCH

- ignition & starter (Includes keys), Includes: Ref. 15

1шт.

15

A20346

KEY

- starter switch

1шт.

16

NSS

NOT SOLD SEPARAT

LIGHTER ASSEMBLY - cigarette (See parts list figure 124)

1шт.

17

A22877

BREAKER,40A

- circuit, light switch

1шт.

18

A20201

SWITCH

ASSEMBLY - light (With knobs), Includes: Ref. 19

1шт.

19

A7817

KNOB

- light switch

1шт.

20

A17607

PLATE ASSY.

PLATE - transmission shift pattern

1шт.

21

A18406

PLATE ASSY.

PLATE - bucket action (3 spool valve)

1шт.

22

A19277

PLATE ASSY.

PLATE - bucket action (2 spool valve)

1шт.

25

L12282

HARNESS

ASSEMBLY - wire, instrument panel, Includes: Ref. 26

1шт.

26

A13742

BLOCK - wire plug

2шт.

NSS

NOT SOLD SEPARAT

WIRE - heater switch (7-1/2" long) Purple

1шт.

NSS

NOT SOLD SEPARAT

WIRE - light switch to rear (5-1/4" long) Blue

1шт.

NSS

NOT SOLD SEPARAT

WIRE - neutral start switch (3" long) Red and white

1шт.

NSS

NOT SOLD SEPARAT

WIRE - stop light (25-3/4" long) Tan

1шт.

NSS

NOT SOLD SEPARAT

WIRE - oil pressure gauge to sender (3" long) Yellow and black

1шт.

NSS

NOT SOLD SEPARAT

WIRE - switch to taillight (5-1/4" long) Yellow

1шт.

NSS

NOT SOLD SEPARAT

WIRE - switch to breaker (4" long) Orange (12 gauge)

1шт.

NSS

NOT SOLD SEPARAT

WIRE - breaker to stoplight switch (25-3/4" long) Orange (14 gauge)

1шт.

NSS

NOT SOLD SEPARAT

WIRE - switch to headlight (4-1/2" long) Pink

1шт.

NSS

NOT SOLD SEPARAT

WIRE - ammeter to ignition switch and circuit breaker (7-3/4" long) Orange and black

1шт.

NSS

NOT SOLD SEPARAT

WIRE - ignition switch accessory (2-1/2" long) Purple

1шт.

NSS

NOT SOLD SEPARAT

WIRE - fuel gauge to sender (2-1/2" long) Tan and black

1шт.

NSS

NOT SOLD SEPARAT

WIRE - engine temperature gauge (1-3/4" long) Pink and black

1шт.

NSS

NOT SOLD SEPARAT

WIRE - converter temperature gauge (3" long) Blue

1шт.

30

A27213

CONNECTOR - 2 wire

1шт.

31

A56181

ELECTRICAL WIRE

WIRE - breaker to ground (24" long) Black

1шт.

32

A8210

CONNECTOR, ELEC

CONNECTOR - 3 wire

1шт.

L11541

CABLE TIE,203.2mm L, Nylon

STRAP - wire harness to panel (Not illustrated)

2шт.
