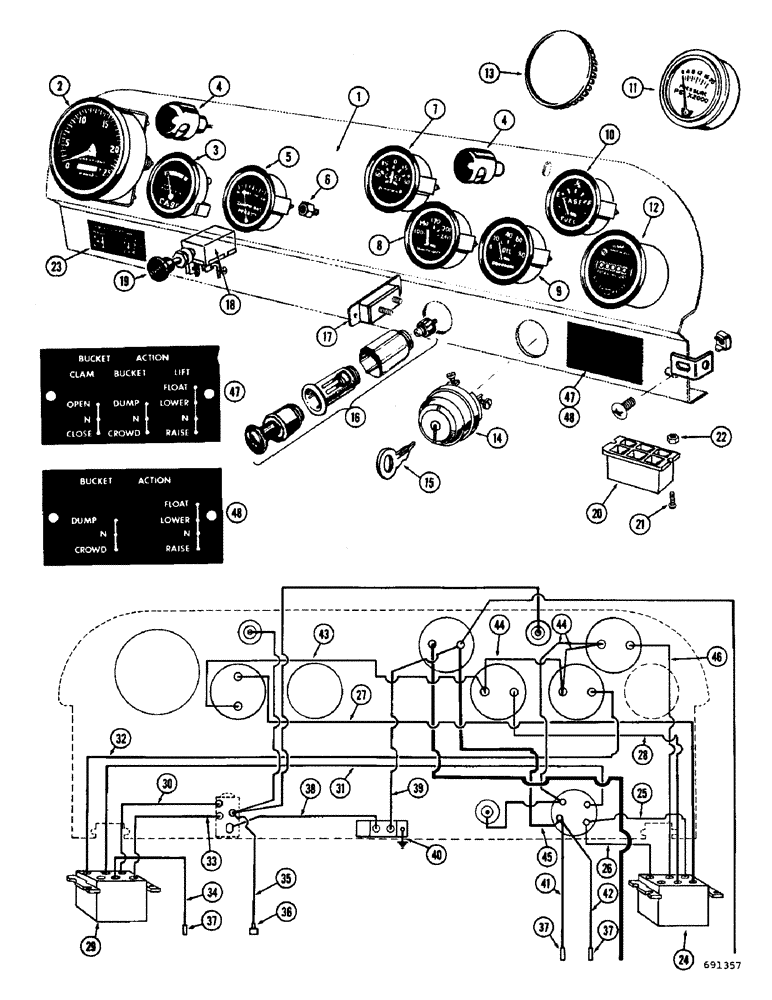

Запчасти Case W7 (130) - INSTRUMENT PANEL, SERIAL NO. 9802395 THRU 9804741 (04) - ELECTRICAL SYSTEMS

L11402

PANEL ASSEMBLY - instrument

1шт.

1

L10187

PANEL - instrument

1шт.

2

A11190

TACHOMETER

ASSEMBLY - engine (Includes hourmeter)

1шт.

3

A13756

GAUGE

ASSEMBLY - converter oil temperature

1шт.

4

A7642

LAMP

LIGHT ASSEMBLY - dash panel (See parts list figure 136)

2шт.

5

A56447

ELECTRICAL GAUGE

GAUGE ASSEMBLY - clutch pressure

1шт.

6

222-681

FITTING,5/16"-24 x 1/8" NPT Fem, Comp

COUPLING ASSEMBLY - converter tube to clutch pressure gauge (Flex fitting)

1шт.

NSS

NOT SOLD SEPARAT

COUPLING - flex

1шт.

222-100

TUBE NUT,1/8" Tube

SLEEVE - flex fitting

1шт.

222-110

TUBE NUT,3/8"-24

NUT - flex fitting

1шт.

7

A55699

ELECTRICAL GAUGE

GAUGE ASSEMBLY - ammeter, 60 amp

1шт.

8

A19347

ELECTRICAL GAUGE

GAUGE ASSEMBLY - engine temperature

1шт.

9

A19346

ELECTRICAL GAUGE

GAUGE ASSEMBLY - engine oil pressure

1шт.

10

A19345

ELECTRICAL GAUGE

GAUGE ASSEMBLY - fuel

1шт.

11

A19522

ELECTRICAL GAUGE

GAUGE ASSEMBLY - hydraulic pressure (Optional)

1шт.

12

A19520

HOURMETER

GAUGE ASSEMBLY - hourmeter, 12 volt (Optional)

1шт.

13

205-68

HOLE PLUG BUTTON,2 3/32"

PLUG - button, gauge opening (Used without A19522 or A19520 gauge assemblies)

1шт.

14

A11373

SWITCH

- ignition & starter (With keys), Includes: Ref. 15

1шт.

15

A20346

KEY

- ignition switch

1шт.

16

NSS

NOT SOLD SEPARAT

LIGHTER ASSEMBLY - cigarete (See parts list figure 124)

1шт.

17

A22877

BREAKER,40A

- circuit

1шт.

18

A20201

SWITCH

ASSEMBLY - light (With knobs), Includes: Ref. 19

1шт.

19

A7817

KNOB

- light switch

1шт.

20

A13742

BLOCK - electrical wiring

2шт.

21

173-61

SCREW,Sl Rnd Hd, #6 - 32 x 1/2"

- machine, round head (#6 - 32 NC x 1/2")

4шт.

22

129-5

NUT,#6-32

4шт.

23

A17607

PLATE ASSY.

PLATE - transmission shift pattern

1шт.

24

L10078

PLUG ASSEMBLY - panel wiring R.H., Includes: Ref. 25 - 29, (Includes ref. no. 46)

1шт.

25

A13743

WIRE - plug to ignition switch terminal "IGN" (7" long) Red

1шт.

26

A19356

WIRE - plug to ignition switch terminal "IGN" (6-1/2" long) Blue

1шт.

27

A19353

WIRE - plug to converter temperature gauge (23" long) Black

1шт.

28

A19355

WIRE - plug to engine temperature gauge (12" long) Green

1шт.

29

L10079

PLUG ASSEMBLY - panel wiring L.H., Includes: Ref. 30 - 34

1шт.

30

A19357

WIRE - plug to light switch terminal "H" (9-1/2" long) Black

1шт.

31

A19359

WIRE - plug to ignition switch terminal "SOL" (24-3/4" long)

1шт.

32

A19361

WIRE - plug to engine oil pressure gauge (24-3/4" long) White

1шт.

33

A19358

WIRE - plug to light switch terminal "A" (8-1/2" long) Yellow

1шт.

34

A19360

WIRE - plug to stop light switch (28" long) Blue

1шт.

35

A19367

WIRE - light switch terminal "R" to connector (18" long) Black

1шт.

36

A8210

CONNECTOR, ELEC

CONNECTOR - 3 wire

1шт.

37

A27213

CONNECTOR - 2 wire

3шт.

38

A19365

WIRE - light switch terminal "B" to circuit breaker (8" long) Black

1шт.

39

A19364

WIRE - circuit breaker to ammeter (6" long) Black

1шт.

40

A56181

ELECTRICAL WIRE

WIRE - circuit breaker to chassis ground (24" long) Black

1шт.

41

A19508

WIRE - ignition switch terminal "B" to stop light switch (28" long) Blue

1шт.

42

A19367

WIRE - ignition switch terminal "B" to horn wire (18" long) Black

1шт.

43

A19366

WIRE - converter temperature gauge to engine temperature gauge (11-1/4" long) Black

1шт.

44

A19363

WIRE - engine temperature gauge to oil pressure gauge; and fuel gauge to oil pressure gauge and ignition switch terminal "ACC" (3-3/4" long) Black

3шт.

45

A19369

WIRE - ammeter to ignition switch terminal "B" (8-1/4" long) Red

1шт.

46

A19354

WIRE - plug to fuel gauge (7-1/2" long) White

1шт.

47

A18406

PLATE ASSY.

PLATE - bucket action (3 spool valve)

1шт.

48

A19277

PLATE ASSY.

PLATE - bucket action (2 spool valve)

1шт.
