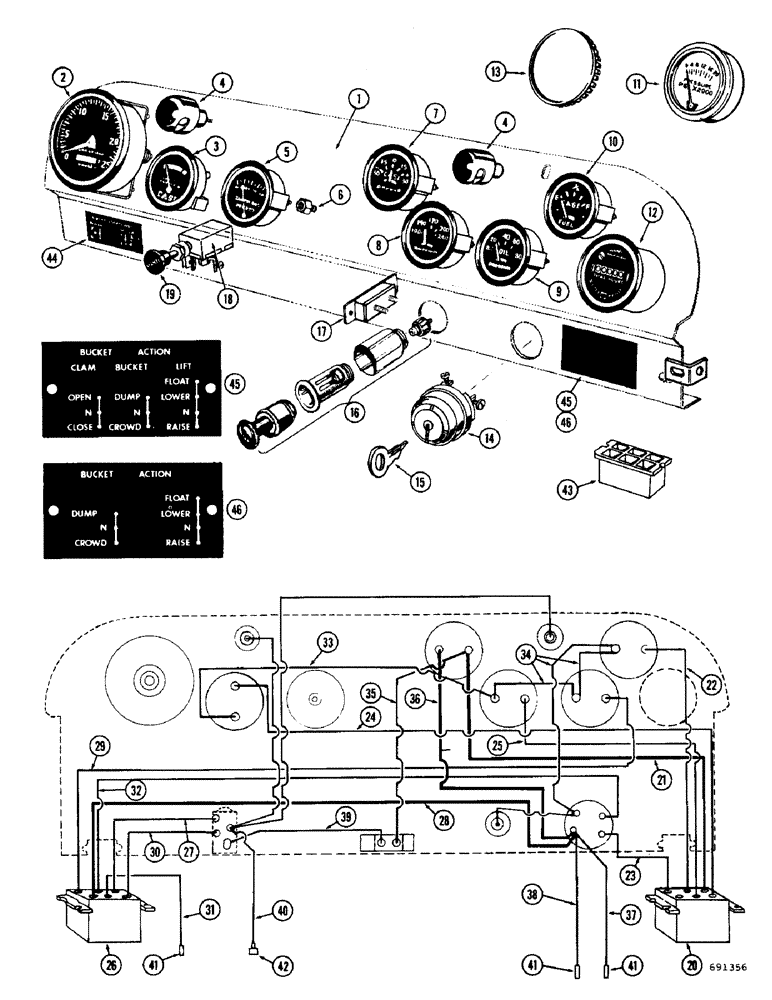

Запчасти Case W7 (128) - INSTRUMENT PANEL, SERIAL NO. 9801417 THRU 9802395 (04) - ELECTRICAL SYSTEMS

L10186

PANEL ASSEMBLY - instrument

1шт.

1

L10187

PANEL - instrument

1шт.

2

A11190

TACHOMETER

ASSEMBLY - engine

1шт.

3

A13756

GAUGE

ASSEMBLY - converter temperature

1шт.

4

A7642

LAMP

ASSEMBLY - instrument panel (See parts list figure 136)

2шт.

5

A56447

ELECTRICAL GAUGE

GAUGE ASSEMBLY - clutch pressure

1шт.

6

222-681

FITTING,5/16"-24 x 1/8" NPT Fem, Comp

COUPLING ASSEMBLY - clutch pressure gage tube (Flex fitting)

1шт.

NSS

NOT SOLD SEPARAT

COUPLING - flex

1шт.

222-100

TUBE NUT,1/8" Tube

SLEEVE - flex fitting

1шт.

222-110

TUBE NUT,3/8"-24

NUT - flex fitting

1шт.

7

A19348

ELECTRICAL GAUGE

GAUGE ASSEMBLY - ammeter

1шт.

8

A19347

ELECTRICAL GAUGE

GAUGE ASSEMBLY - engine temperature

1шт.

9

A19346

ELECTRICAL GAUGE

GAUGE ASSEMBLY - engine oil pressure

1шт.

10

A19345

ELECTRICAL GAUGE

GAUGE ASSEMBLY - fuel level

1шт.

11

A19522

ELECTRICAL GAUGE

GAUGE ASSEMBLY - hydraulic pressure (Optional)

1шт.

12

A19520

HOURMETER

GAUGE ASSEMBLY - hourmeter, 12 volt (Optional)

1шт.

13

205-68

HOLE PLUG BUTTON,2 3/32"

PLUG - button, gauge opening (Used without A19522 or A19520 gauge assemblies)

1шт.

14

A11373

SWITCH

- ignition & starter, Includes Ref 15

1шт.

15

A20346

KEY

- ignition switch

1шт.

16

NSS

NOT SOLD SEPARAT

LIGHTER ASSEMBLY - cigarette (See parts list figure 124)

1шт.

17

A22877

BREAKER,40A

- circuit

1шт.

18

A20201

SWITCH

ASSEMBLY - lighting (With knob), Includes: Ref. 19

1шт.

19

A7817

KNOB

- light switch

1шт.

20

A19350

PLUG ASSEMBLY - panel wiring R.H., Includes: Ref. 21 - 25

1шт.

21

A19352

WIRE - plug to ammeter (16-1/2" long) Red

1шт.

22

A19354

WIRE - plug to fuel gauge (7-1/2" long) White

1шт.

23

A19356

WIRE - plug to ignition switch terminal "I" (6-1/2" long) Blue

1шт.

24

A19353

WIRE - plug to converter temperature gauge (23" long) Black

1шт.

25

A19355

WIRE - plug to engine temperature gauge (12" long) Green

1шт.

26

A19351

PLUG ASSEMBLY - panel wiring L.H., Includes: Ref. 27 - 32

1шт.

27

A19357

WIRE - plug to light switch terminal "H" (9-1/2" long) Black

1шт.

28

A19359

WIRE - plug to ignition switch terminal "SOL" (24-3/4" long) Green

1шт.

29

A19361

WIRE - plug to oil pressure gauge (24-3/4" long) White

1шт.

30

A19358

WIRE - plug to light switch terminal "A" (8-1/2" long) Yellow

1шт.

31

A19360

WIRE - plug to stop light connector (28" long) Blue

1шт.

32

A19362

WIRE - plug ignition switch terminal "B" (24-1/4" long) Red

1шт.

33

A19366

WIRE - converter temperature gauge to engine temperature gauge (11-1/4" long) Black

1шт.

34

A19363

WIRE - engine temperature gauge to engine oil pressure gauge; and fuel gauge to engine temperature gauge and ignition switch terminal "ACC" (3-3/4" long) Black

3шт.

35

A19364

WIRE - ammeter to circuit breaker (6" long) Black

1шт.

36

A19369

WIRE - ammeter to ignition switch terminal "B" (8-1/2" long) Red

1шт.

37

A19367

WIRE - ignition switch terminal "B" to horn connector (18" long) Black

1шт.

38

A19508

WIRE - ignition switch terminal "B" to stop light connector (28" long) Blue

1шт.

39

A19365

WIRE - light switch terminal "B" to circuit breaker (8" long) Black

1шт.

40

A19367

WIRE - light switch terminal "R" to front light connector (18" long) Black

1шт.

41

A27213

CONNECTOR - 2 wire

3шт.

42

A8210

CONNECTOR, ELEC

CONNECTOR - 3 wire

1шт.

43

A13742

BLOCK - wire plug L.H. and R.H.

2шт.

44

A17607

PLATE ASSY.

PLATE - transmission shift pattern

1шт.

45

A18406

PLATE ASSY.

PLATE - bucket action (3 spool)

1шт.

46

A19277

PLATE ASSY.

PLATE - bucket action (2 spool)

1шт.
