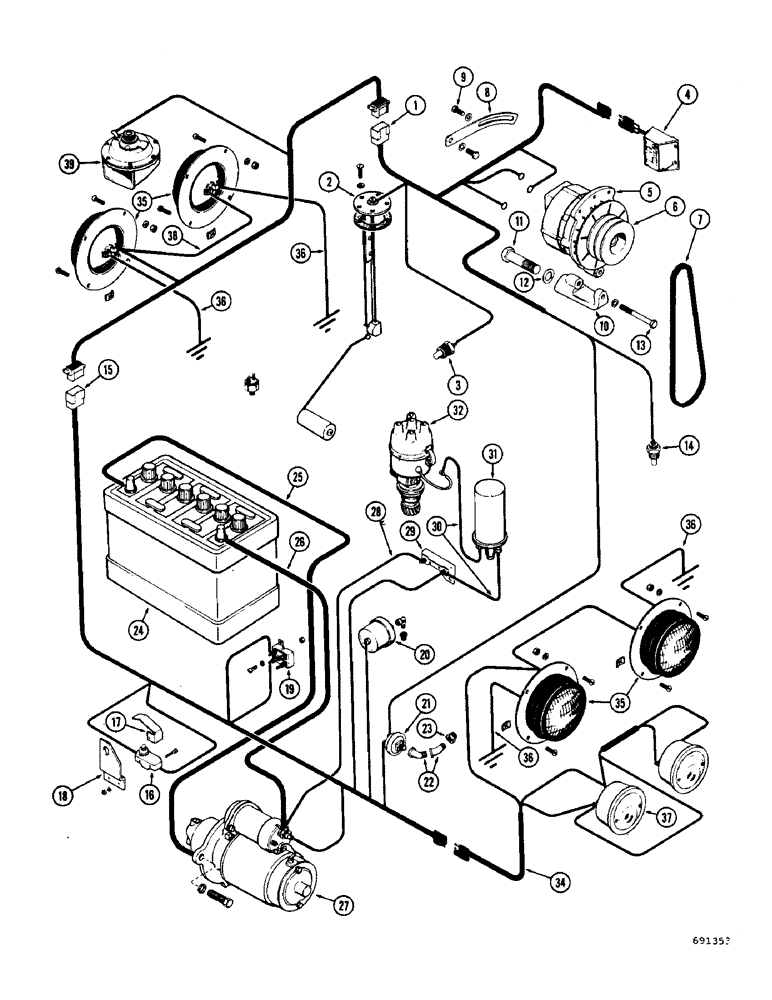

Запчасти Case W7 (120) - ALTERNATOR ELECTRICAL SYSTEM, (GASOLINE), SERIAL NO. 9804742 & AFTER (04) - ELECTRICAL SYSTEMS

1

L12281

HARNESS

ASSY. - R.H. rear

1шт.

2

A17219

UNIT

- sender, fuel gauge

1шт.

3

A13795

SENDER UNIT

UNIT - sender, converter temperature

1шт.

4

L11351

REGULATOR

- voltage

1шт.

5

A41340

ALTERNATOR

ASSEMBLY - 55 amp. (Parts list figure 74)

1шт.

5

104022A1R

REMAN-ALTERNATOR

Remanufactured Alternator

1шт.

5

104022A1C

CORE-ALTERNATOR

Return Number, 12 VOLT, 55 Amp Alternator

1шт.

6

A41057

PULLEY

- alternator (Order separate)

1шт.

7

A21457

SET OF BELTS,50.50" L

SET OF 2 BELTS , Matched, Alternator drive 50.50" L

1шт.

8

A34548

STRAP

- adjusting, alternator

1шт.

9

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

1шт.

10

A34704

BRACKET

- alternator mounting

1шт.

11

13-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 5

1шт.

12

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

13

13-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

HHCS - 3/8" - 16 NC x 3-1/4"

1шт.

14

A12462

UNIT - sender, engine temperature

1шт.

15

L12279

HARNESS

ASSEMBLY - L.H. rear

1шт.

16

A19513

SWITCH

- neutral start

1шт.

17

L11390

GUARD - neutral start switch

1шт.

18

L12289

CLIP

- neutral start switch

1шт.

19

L11343

BREAKER

- circuit, alternator

1шт.

20

A35031

SENDER UNIT

UNIT - sender, engine oil pressure

1шт.

21

D28798

SWITCH

- safety, voltage regulator

1шт.

22

221-404

FITTING

ELBOW - street, 45 degrees (1/8" NPT)

2шт.

23

221-52

BUSHING,Hex, 3/8" x 1/8" NPT

- reducer, 3/8" NPT to 1/8" NPT

1шт.

24

L15518

BATTERY - electrical (12 volt)

1шт.

25

L11392

CABLE

- positive terminal to solenoid (35")

1шт.

26

L11393

CABLE

- negative terminal to grond (36")

1шт.

27

A21281

STARTING MOTOR

STARTER ASSEMBLY - electrical (Parts list figures 80 and 82)

1шт.

28

A8743

WIRE - starter "R" term. to resistor (White 8")

1шт.

29

A20934

X

RESISTOR - primary circuit

1шт.

30

A28015

WIRE - coil to resistor & distributor

2шт.

31

A20949

X

COIL AND BRACKET ASSEMBLY - electrical

1шт.

32

A24508

DISTRIBUTOR

ASSEMBLY - ignition (Parts list figure 70)

1шт.

34

L12280

HARNESS

ASSEMBLY - wire, rear lights

1шт.

35

A15932

X

LIGHT ASSEMBLY - front and rear (Parts list figure 136)

4шт.

36

A15941

ELECTRICAL WIRE

WIRE - ground, lamp (Black 6")

4шт.

37

L10741

STOP LIGHT

LIGHT ASSEMBLY - stop and tail (Parts list figure 136)

2шт.

38

L11352

ELECTRICAL WIRE

WIRE ASSEMBLY - front lights

1шт.

39

A19581

HORN

ASSEMBLY - warning (Parts list figure 136)

1шт.
