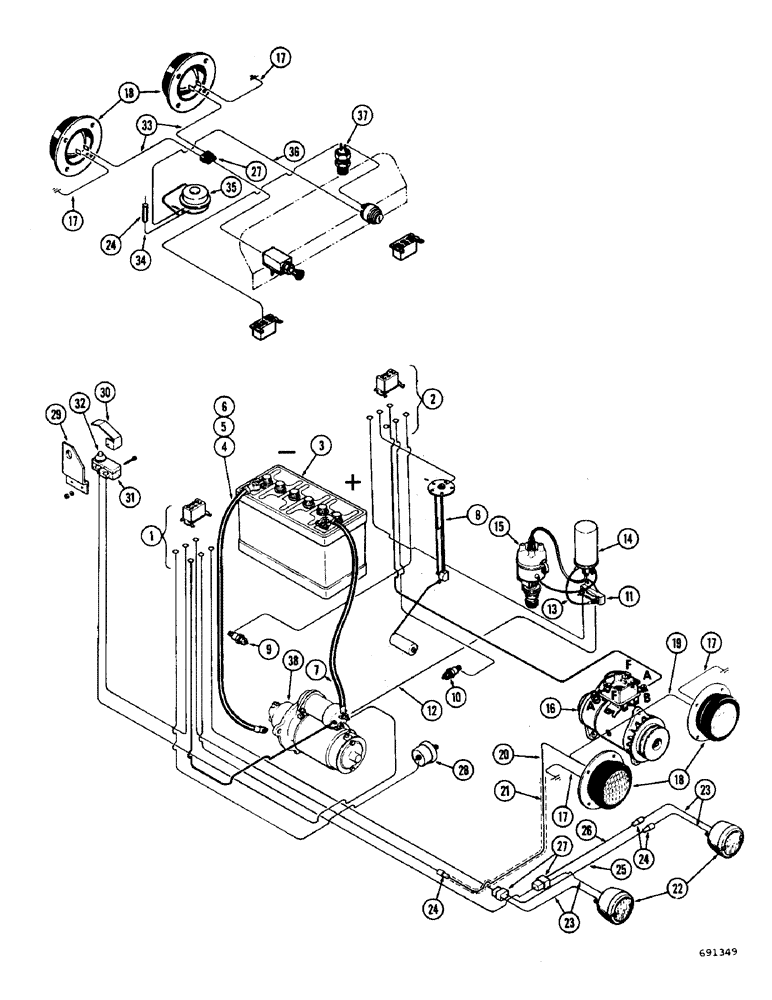

Запчасти Case W7 (112) - GENERATOR ELECTRICAL SYSTEM, (GASOLINE), SN. 9801417 & AFTER (04) - ELECTRICAL SYSTEMS

1

L10190

SOCKET

ASSEMBLY - chassis wiring, L.H.

1шт.

2

L10188

SOCKET ASSEMBLY - chassis wiring, R.H.

1шт.

3

D44175

DRY BATTERY

- 12 volt

1шт.

4

L11393

CABLE

- battery ground to starter mounting bolt, 36" long, Start Serial: 9802832

1шт.

5

49836

CLAMP

CLIP - battery ground cable (Use with L11393 cable)

1шт.

6

A27069

CABLE

- battery ground to chassis, Serial Range: -9802832

1шт.

7

L11392

CABLE

- battery to starter solenoid (35" long)

1шт.

8

A17219

UNIT

SENDING UNIT - fuel tank level

1шт.

9

A13795

SENDER UNIT

SENDING UNIT - converter temperature

1шт.

10

A21462

SENDER UNIT

SENDING UNIT - engine temperature

1шт.

11

A24504

RESISTOR

- ballast (Auto-Lite 201020)

1шт.

12

A8743

WIRE - resistor to starter "R" terminal (8" long) White

1шт.

13

A28015

WIRE - resistor to coil (13" long) White

1шт.

14

A24503

COIL

ASSEMBLY - ignition (Auto-Lite 200734)

1шт.

15

A24508

DISTRIBUTOR

ASSEMBLY - ignition (Auto-Lite IBT 4402) (See parts list figure 70)

1шт.

16

A33983

GENERATOR

ASSEMBLY - engine (See parts list figure 78)

1шт.

17

A15941

ELECTRICAL WIRE

WIRE - ground, front and rear light (6" long) Black

4шт.

18

A15932

X

LIGHT ASSEMBLY - front and rear (See parts list figure 136)

4шт.

19

A16367

ELECTRICAL WIRE

WIRE - jumper, rear lights (20" long) Black

1шт.

20

A15948

ELECTRICAL WIRE

WIRE - rear L.H. light to harness connector (46" long) Black

1шт.

21

A27201

LOOM - wiring, left rear light (29" long)

1шт.

22

REF

INSTRUCTION

LIGHT ASSEMBLY - rear, stop and tail (See figures 136 and 138 for proper light)

2шт.

23

A16731

PLUG

WIRE ASSEMBLY - rear stop light

2шт.

24

A27213

CONNECTOR - wire

5шт.

25

A13252

ELECTRICAL WIRE

WIRE - stop light connector to connector (18" long) White

1шт.

27

A8210

CONNECTOR, ELEC

CONNECTOR - 3 wire

3шт.

28

A35031

SENDER UNIT

SENDING UNIT - engine oil pressure

1шт.

29

A19514

PLATE - mounting, neutral start switch

1шт.

30

L11390

GUARD - button, neutral start switch

1шт.

31

A19513

SWITCH

ASSEMBLY - neutral safety start

1шт.

32

A19515

BUTTON - neutral start switch

1шт.

33

A17271

WIRE - front lamp to connector (22" long) Black

2шт.

34

A13792

WIRE - horn to steering column connector (8" long) Black

1шт.

35

A19581

HORN

ASSEMBLY - warning (See parts list figure136)

1шт.

36

A18924

WIRE - horn to instrument panel connector (34" long) Black

1шт.

37

A12491

SWITCH

ASSY - brake, stop light

1шт.

38

REF

INSTRUCTION

STARTER ASSEMBLY - electrical figures 84 and 85A for proper starter

1шт.
