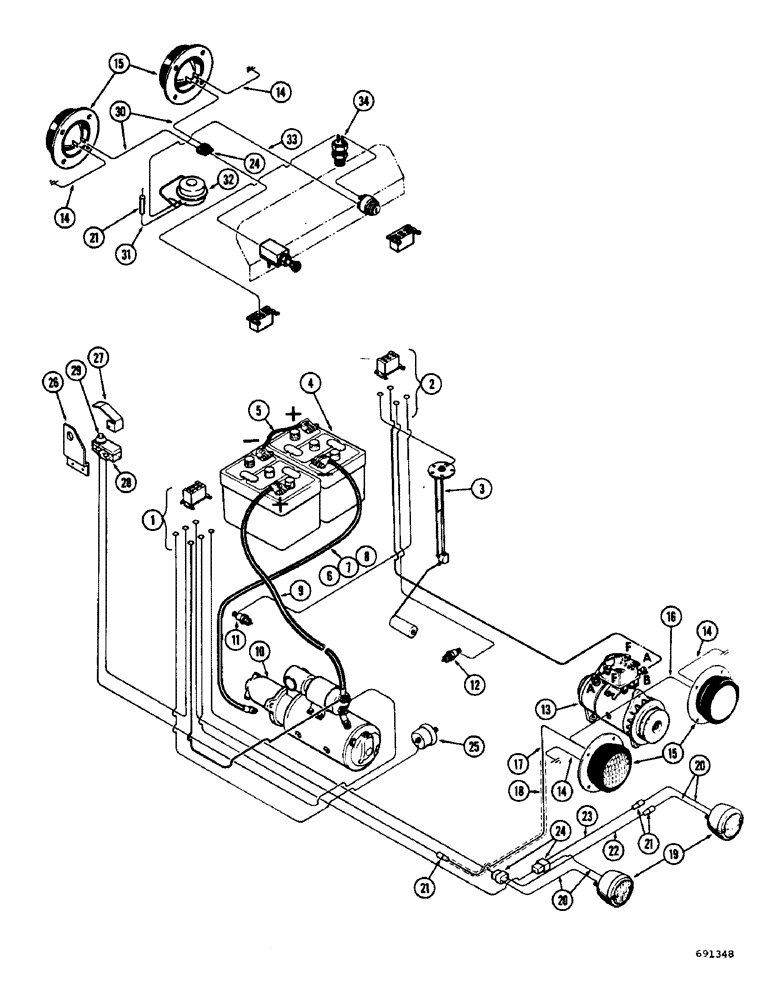

Запчасти Case W7 (110) - GENERATOR ELECTRICAL SYSTEM, (DIESEL), SERIAL NO. 9801417 AND AFTER (04) - ELECTRICAL SYSTEMS

1

L10190

SOCKET

ASSEMBLY - chassis wiring, LH

1шт.

2

L10189

SOCKET

ASSEMBLY - chassis wiring, RH

1шт.

3

A17219

UNIT

SENDING - fuel tank level

1шт.

4

F53478

DRY BATTERY

6 volt, (Prestolite 4-A8Y)

2шт.

5

L11391

CABLE

Jumper

1шт.

6

L11393

CABLE

Battery, ground to starter mounting bolt (36" long)

1шт.

7

49836

CLAMP

CLIP - cable (Use with L11393 cable)

1шт.

8

A27069

CABLE

Battery ground to chassis (Prior to S/N 9801417)

1шт.

9

L11392

CABLE

Battery to starter motor (35" long)

1шт.

10

A21281

STARTING MOTOR

ASSEMBLY (See parts list figure 80)

1шт.

11

A13795

SENDER UNIT

SENDER Converter temperature

1шт.

12

A21462

SENDER UNIT

SENDER Engine temperature

1шт.

13

A33983

GENERATOR

ASSEMBLY - engine (See parts list figure 78)

1шт.

14

A15941

ELECTRICAL WIRE

WIRE Ground, front and rear lamp (6" long) Black

4шт.

15

A15932

X

LIGHT ASSEMBLY - front and rear (See parts list figure 136)

4шт.

16

A16367

ELECTRICAL WIRE

WIRE Jumper (20" long) Black

1шт.

17

A15948

ELECTRICAL WIRE

WIRE Rear LH light to connector (46" long) Black

1шт.

18

A27201

SPARE PART Light wire (29" long)

1шт.

19

REF

INSTRUCTION

LIGHT ASSEMBLY - rear, stop and tail (See figures 136 and 138 for proper light)

2шт.

20

A16731

PLUG

WIRE ASSEMBLY - rear stop and taillight

2шт.

21

A27213

SPARE PART 2 wire

5шт.

22

A13252

ELECTRICAL WIRE

WIRE Stop light connector to connector (18" long) Black

1шт.

23

A13251

ELECTRICAL WIRE

WIRE Stop light connector to connector (18" long) White

1шт.

24

A8210

CONNECTOR, ELEC

CONNECTOR 3 wire

3шт.

25

A35031

SENDER UNIT

SENDER Engine oil pressure

1шт.

26

A19514

SPARE PART Mounting, neutral start switch

1шт.

27

L11390

SPARE PART Button, neutral start switch

1шт.

28

A19513

SWITCH

ASSEMBLY - neutral start safety

1шт.

29

A19515

SPARE PART BUTTON - neutral start switch

1шт.

30

A17271

WIRE - front lamps to connector (22" long) Black

2шт.

31

A13792

SPARE PART Horn to steering column connector (8" long) Black

1шт.

32

A19581

HORN

ASSEMBLY - warning (See parts list figure 136)

1шт.

33

A18924

SPARE PART Horn to instrument panel connector (34" long) Black

1шт.

34

A12491

SWITCH

SWITCH ASSY - brake, stop light

1шт.
