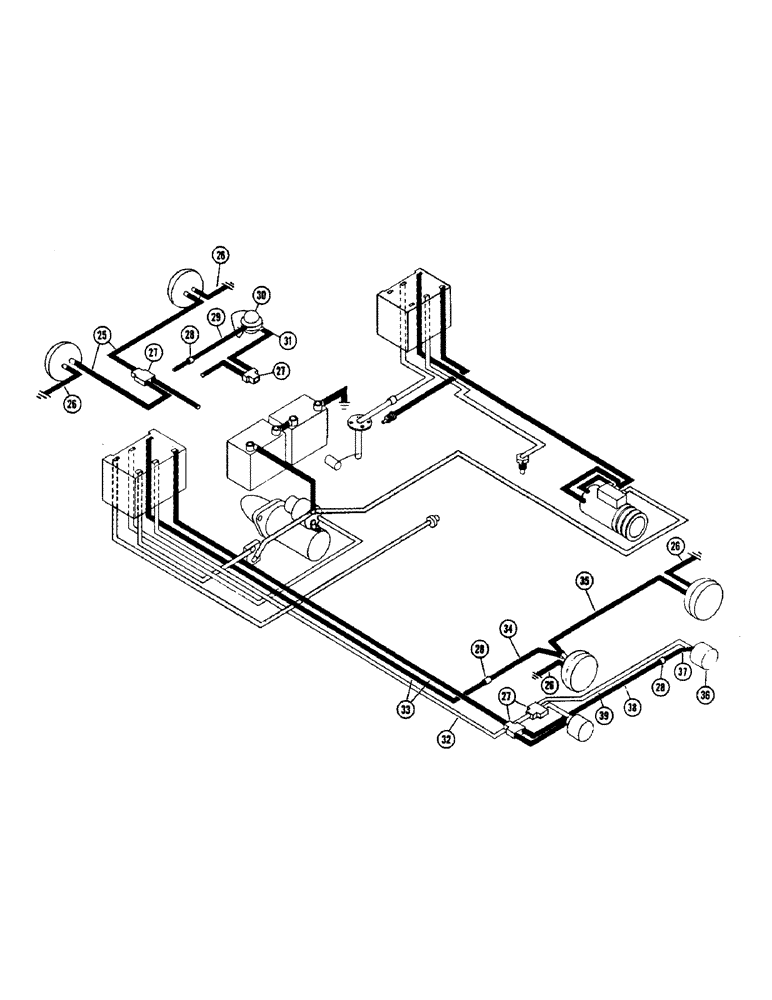

Запчасти Case W7 (108) - GENERATOR ELECTRICAL SYSTEM, (GASOLINE AND DIESEL), PRIOR TO SN. 9801417 (04) - ELECTRICAL SYSTEMS

75-412

SCREW,Rd, 1/4" x 3/4"

- machine, round head (1/4" - 20 NC x 3/4") Front light

8шт.

75-416

SCREW,Rd, 1/4" - 20 x 1"

- machine, round head (1/4" - 20 NC x 1") Rear light

8шт.

131-132

SPRING NUT,Tinn, U, 1/4"-20

- Tinnerman (1/4" - 20 NC)

12шт.

25-104

NUT,1/4"-20, G5

4шт.

193-8

LOCK WASHER,Ext Tooth, 1/4"

WASHER, LOCK, Ext Tooth, 1/4"

4шт.

25

A17271

WIRE - front light to connector (22" long) Black

2шт.

26

A15941

ELECTRICAL WIRE

WIRE - front and rear light to ground (Black, 6" long)

4шт.

27

A8210

CONNECTOR, ELEC

CONNECTOR - wire (Front and rear lights, stop and tail lights, and horn)

4шт.

28

A27213

CONNECTOR - wire (Stop and tail lights, and horn)

4шт.

29

A13792

WIRE - horn to connector and steering column (Black, 8" long)

1шт.

30

A56136

HORN

- warning (See parts list figure 138)

1шт.

31

A13791

WIRE - horn to connector (Black, 40" long)

1шт.

32

A17282

WIRE - stop and taillight (114" long) White

1шт.

33

A17284

WIRE - rear light and stop and taillight (114" long) Black

2шт.

34

A15948

ELECTRICAL WIRE

WIRE - L.H. rear light to connector (46" long) Black

1шт.

A7922

CLIP

- wire, L.H. rear light

1шт.

A27201

LOOM - wire, L.H. rear light (29" long)

1шт.

35

A16367

ELECTRICAL WIRE

WIRE - rear light to rear light (20" long) Black

1шт.

A17287

CLIP - rear light, Serial Range: wire-grille

1шт.

36

REF

INSTRUCTION

LIGHT - stop and tail (See figures 136 and 138 for proper light), Includes: Ref. 37

2шт.

37

A16731

PLUG

SOCKET AND WIRE ASSEMBLY - stop and taillight

2шт.

38

A13252

ELECTRICAL WIRE

WIRE - R.H. stop and taillight (18" long) Black

1шт.

39

A13251

ELECTRICAL WIRE

WIRE - R.H. stop and taillight (18" long) White

1шт.

A12458

SLEEVE

LOOM - wire, stop and taillight (Ref. 38 and 39)

2шт.

A27814

X

CLIP - wire, stop and taillight (Ref. 38 and 39)

1шт.

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

1шт.

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

25-104

NUT,1/4"-20, G5

1шт.
