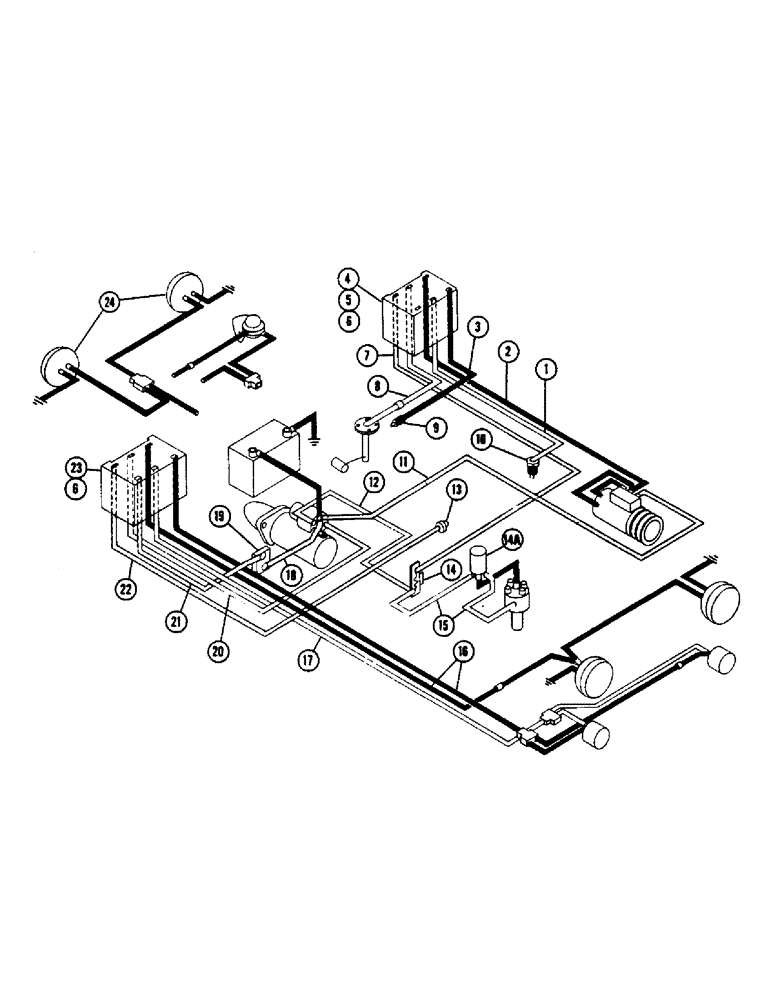

Запчасти Case W7 (106) - GENERATOR ELECTRICAL SYSTEM, (GASOLINE & DIESEL), PRIOR TO SN. 9801417 (04) - ELECTRICAL SYSTEMS

1

A15255

WIRE - sender, engine temperature (120" long) White

1шт.

2

A17280

WIRE - "A" terminal, voltage regulator (112" long) Black

1шт.

3

A17279

WIRE - sender, converter temperature (72" long) Black

1шт.

4

A17274

SOCKET AND WIRE ASSEMBLY - R.H. (Diesel)

1шт.

5

A17276

SOCKET AND WIRE ASSEMBLY - R.H. (Gasoline)

1шт.

6

A13777

BLOCK - socket (Less wires) L.H. and R.H.

2шт.

7

A17281

WIRE - resistor (98" long) Red (Gasoline only)

1шт.

8

A17278

WIRE - sender, fuel gauge (92" long) White

1шт.

9

A13795

SENDER UNIT

SENDER - converter oil temperature

1шт.

10

A21462

SENDER UNIT

SENDER - engine temperature

1шт.

11

A7658

WIRE - voltage regulator to solenoid (60" long) Black

1шт.

12

A8743

WIRE - resistor to solenoid (8" long) White (Gasoline only)

1шт.

13

A35031

SENDER UNIT

SENDING UNIT - engine oil pressure (Use with oil pressure gauge)

1шт.

13

A13794

TRANSMITTER

SENDING UNIT - engine oil pressure (Use with cluster gauge light)

1шт.

129-27

NUT,Hex, #10 - 32

- hex. (#10 - 32 NF)

1шт.

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

195-12

WASHER,#10

- plain () #10

1шт.

14

A24504

RESISTOR

- electrical (Gasoline only)

1шт.

14a

A40778

COIL

- electrical (Gasoline only)

1шт.

15

A28015

WIRE - coil to resistor and distributor (13" long) White (Gasoline only)

2шт.

16

A17284

WIRE - rear lamp (114" long) Black

2шт.

17

A17282

WIRE - stop light (114" long) White

1шт.

18

A17288

WIRE - circuit breaker to starter (18" long) Red

1шт.

19

A22877

BREAKER,40A

- circuit

1шт.

174-97

SCREW,Sl Rnd Hd, #10 - 32 x 1/2"

- machine, round head (#10 - 32 NF x 1/2")

2шт.

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

20

A17283

WIRE - starter solenoid (102" long) White

1шт.

21

A14748

WIRE - circuit breaker (82" long) Red

1шт.

22

A17277

WIRE - sender, engine oil pressure (93" long) Red

1шт.

23

A17275

SOCKET AND WIRE ASSEMBLY - L.H.

1шт.

A7922

CLIP

- wire, fuel sender (Ref. no. 8)

2шт.

A7922

CLIP

- wire assembly, R.H. and L.H. (Ref. 4, 5 and 23)

4шт.

A7922

CLIP

- voltage regulator wire to solenoid (Ref. 11)

1шт.

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

7шт.

25-104

NUT,1/4"-20, G5

7шт.

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

7шт.

A12458

SLEEVE

LOOM -, Serial Range: clips-wire

7шт.

A26673

CLIP

- wire assembly to radiator grille cap

1шт.

13-424

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

Hex, 1/4"-20 x 1 1/2", G5

1шт.

25-104

NUT,1/4"-20, G5

1шт.

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

A28015

CLIP - wire assembly to front frame plate

4шт.

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

4шт.

25-104

NUT,1/4"-20, G5

4шт.

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

A28674

CONDUIT - wire assembly to L.H. and R.H. operator compartment wall

2шт.

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

4шт.

25-104

NUT,1/4"-20, G5

4шт.

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

24

A15932

X

LIGHT - front and rear (See parts list figure 136)

4шт.
