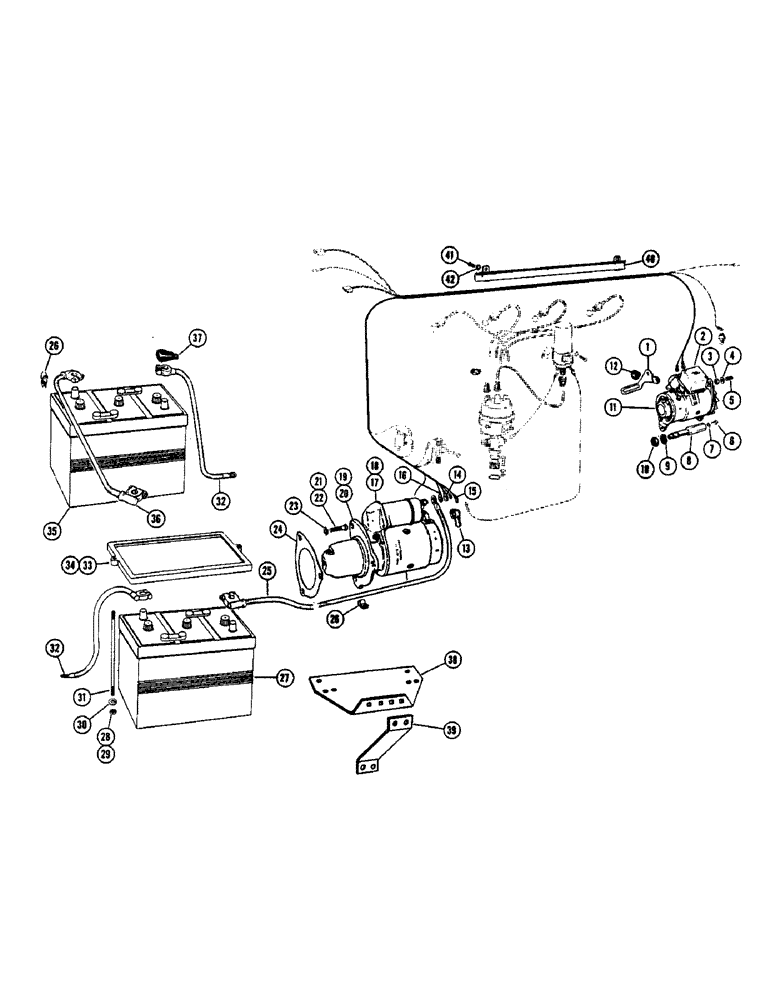

Запчасти Case W7 (104) - GENERATOR ELECTRICAL SYSTEM, (GASOLINE & DIESEL), PRIOR TO SN. 98011417 (04) - ELECTRICAL SYSTEMS

1

A15607

STRAP

- generator adjusting

1шт.

2

A20792

REGULATOR

- voltage (Delco no. 1118991)

1шт.

3

25-156

JAM NUT,Jam, 3/8"-24, G5

- hex., jam (3/8" - 24 NF)

1шт.

4

92-6

LOCK WASHER,3/8"

1шт.

5

A7391

STUD

- adjusting strap, generator

1шт.

6

25774R1

BOLT,Hex, 3/8" - 24 x 2", Gr 8

HHCS - 3/8" - 24 NF x 2"

2шт.

7

92-6

LOCK WASHER,3/8"

2шт.

8

A34887

CARRIER

- generator

1шт.

9

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

10

25-1112

NUT,3/4"-16, G5

- hex. (3/4" - 16 NF)

1шт.

11

REF

INSTRUCTION

GENERATOR - 12 volt (Includes regulator) See parts list figure 78

1шт.

12

193-521

SCREW - machine, indented round head (5/16" - 18 NC x 3/4") with Shakeproof washer

1шт.

13

A21753

CAP

NIPPLE - rubber, starter cable terminal

1шт.

14

A7658

WIRE -, Serial Range: solenoid-regulator

1шт.

15

A8743

WIRE -, Serial Range: solenoid-resistor

1шт.

16

A17288

WIRE - solenoid to circuit breaker

1шт.

17

A23564

X

SOLENOID - starter, diesel (Delco no. 1119890)

1шт.

18

A21585

SWITCH

SOLENOID - starter, gasoline (Delco no. 1114356)

1шт.

19

REF

INSTRUCTION

STARTER - 12 volt, gasoline (See figures 84 or 85A for proper starter)

1шт.

20

A21281

STARTING MOTOR

STARTER - 12 volt, diesel (Delco no. 113634) Parts list figures 80 and 82

1шт.

21

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

22

13-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

Hex, 1/2"-13 x 2 3/4", G5

1шт.

23

92-8

LOCK WASHER,1/2"

3шт.

24

A27933

GASKET

- starter mounting

1шт.

25

A17285

CABLE -, Serial Range: starter-battery

1шт.

26

A28019

CLIP - battery cable to rear plate

1шт.

27

D44175

DRY BATTERY

- electrical, 12 volt (Gasoline)

1шт.

28

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC) 1 on each bolt

4шт.

29

25-116

NUT,Hex, 3/8"-24, G5

- hex. (3/8" - 24 NF)

8шт.

30

92-6

LOCK WASHER,3/8"

2 on each bolt 3/8"

8шт.

31

A12357

STUD

BOLT - battery holddown (2 used on gasoline, 4 on diesel)

4шт.

32

A27069

CABLE

- battery ground

1шт.

33

A17125

FRAME - battery holddown, gasoline

1шт.

34

A17128

SUPPORT

FRAME - battery holddown, diesel

2шт.

35

F53748

BATTERY - electrical, 6 volt (Prestolite 4-A8Y) Diesel

2шт.

36

A17286

CABLE - battery to battery (Diesel)

1шт.

37

A27072

COVER

- positive terminal (1 used on gasoline, 2 on diesel)

2шт.

38

A17123

TRAY - battery (1 used on gasoline, 2 on diesel)

2шт.

11-616

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G2

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1", G2

4шт.

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

4шт.

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

4шт.

92-6

LOCK WASHER,3/8"

8шт.

39

A17124

SUPPORT

BRACE - battery tray (1 used on gasoline, 2 on diesel)

2шт.

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

4шт.

92-6

LOCK WASHER,3/8"

4шт.

40

A7532

CONDUIT - generator wire, engine block

1шт.

41

13-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

2шт.

42

92-5

LOCK WASHER,5/16"

2шт.
