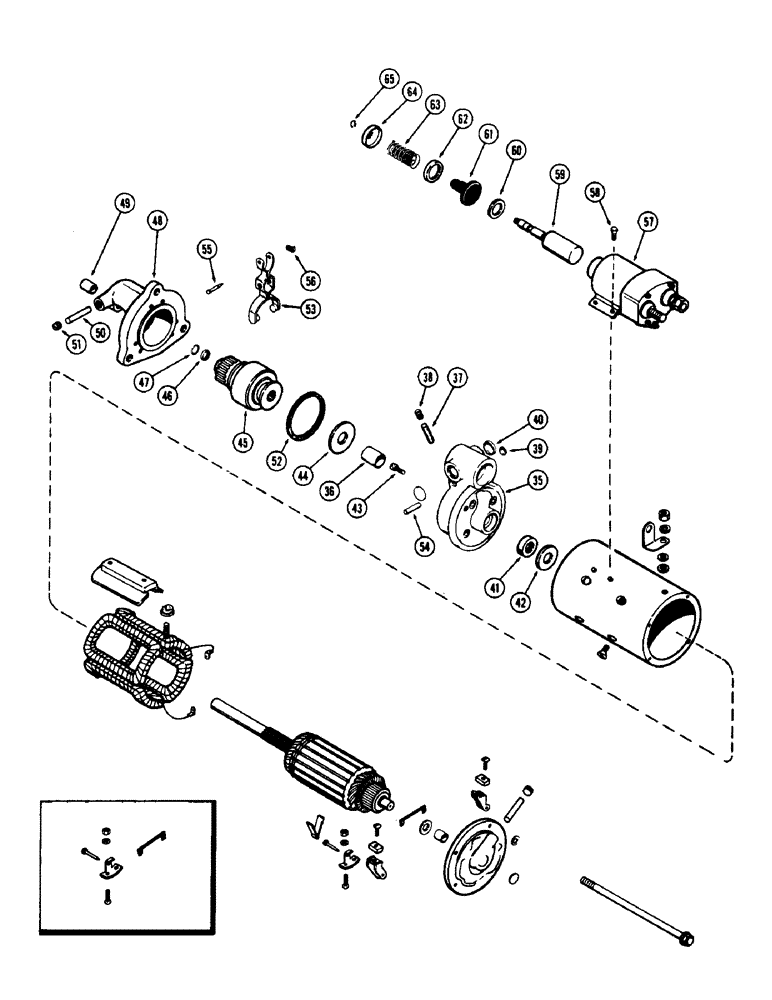

Запчасти Case W7 (082) - A21281 STARTER, (301) DIESEL ENGINE (04) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
A21281
STARTING MOTOR
STARTER - continued from figure 80, Includes: Ref. 35 - 65
1шт.
35
A25405
HOUSING
HOUSING ASSY. - lever, Includes: Ref. 36 - 40
1шт.
36
A40944
BUSHING
BUSHING - lever housing
1шт.
37
A41417
WICK
WICK - oil, lever housing
1шт.
38
221-1041
PLUG
PLUG - pipe, oil wick hole
1шт.
39
A42009
SPARE PART PLUG - expansion, lever housing, 1/2" dia.
1шт.
40
A42013
PLUG
PLUG - expansion, lever housing, 1-3/16" dia.
1шт.
41
A25407
OIL SEAL
SEAL - oil, lever housing
1шт.
42
A42202
WASHER
WASHER - spacer, lever hsg. & armature
1шт.
43
NSS
NOT SOLD SEPARAT
BOLT - attaching, lever & drive housing
4шт.
44
R15043
WASHER
WASHER - brake, lever hosing & drive
1шт.
45
A25338
DRIVE
DRIVE ASSY. - Bendix
1шт.
45
87421542
REMAN-STARTER DRIVE
Drive Assy, Starter
1шт.
45
87421543
CORE-STARTER
Return Part Number
1шт.
46
R15049
COLLAR
COLLAR - pinion stop
1шт.
47
R15048
RING
RING - pinion stop retaining
1шт.
48
A25347
SPARE PART HOUSING ASSY. - drive end, Includes: Ref. 49 - 51
1шт.
49
A40838
SPARE PART BUSHING - drive housing
1шт.
50
R15023
WICK
WICK - oil, drive housing
1шт.
51
221-1041
PLUG
PLUG - pipe, oil wick hole
1шт.
52
A41508
GASKET
GASKET - drive housing to lever housing
1шт.
53
A25398
LEVER
LEVER - shift, starter
1шт.
54
A25402
STUD
STUD - lever, shift pivot
1шт.
55
A25400
PIN
PIN - lever ot plunger
1шт.
56
A25406
OIL SEAL
RING - lever pin retaining
1шт.
57
A40461
IGNITION SWITCH
SOLENOID ASSY. - (See figure 85C)
1шт.
58
R15139
WASHER
SPARE PART SCREW - solenoid attaching
4шт.
59
A25394
PLUNGER
PLUNGER - solenoid
1шт.
60
A42008
WASHER
WASHER - spring limit
1шт.
61
R21576
BOOT
BOOT - dust, solenoid
1шт.
62
R21572
RETAINER
RETAINER - plunger return spring, inner
1шт.
63
R21569
X
SPRING - return, plunger
1шт.
64
R21571
RETAINER
RETAINER - plunger return spring, outer
1шт.
65
G46146
SNAP RING,#37, Ext
RING - snap, , return spring retaining #37, Ext
1шт.
Выбрано товаров: 34
