Запчасти Case W7 (080) - A21281 STARTER, (301) DIESEL ENGINE (04) - ELECTRICAL SYSTEMS

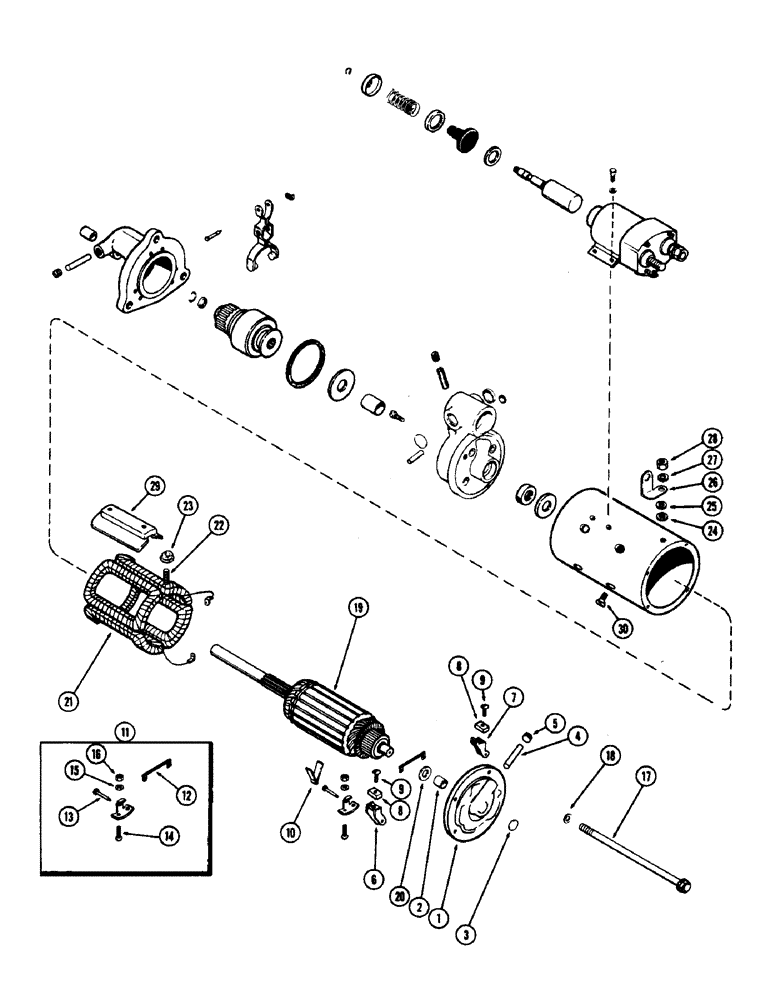

Схема запчастей Case W7 - (080) - A21281 STARTER, (301) DIESEL ENGINE (04) - ELECTRICAL SYSTEMS

Артикул

Название

Примечание

Количество

A21281

STARTING MOTOR

STARTER ASSY. - (Delco #1113634), Includes: Ref. 1 - 30

1шт.

1

R15019

FUNNEL

END ASSY. - frame, commutator, Includes: Ref. 2 - 5

1шт.

2

R15020

BUSHING

- commutator end

1шт.

3

R15021

PLUG

- expansion, end frame

1шт.

4

R15023

WICK

- oil, end frame

1шт.

5

221-1041

PLUG

- pipe, oil wick hole

1шт.

6

A40217

HOLDER

- ground brush

2шт.

7

R21590

HOLDER

- insulated brush

2шт.

8

A20897

BRUSH, COMMUTATOR

BRUSH - starter

4шт.

9

187-323

SCREW

- attaching, brush

4шт.

10

R15025

SPRING

- brush

2шт.

11

R15029

BRUSH

SUPPORT KIT - brush holder, Includes: Ref. 12 - 16

2шт.

12

R15030

ELECTRICAL WIRE

LEAD - ground, brush

1шт.

13

R15035

PIN

- brush holder

1шт.

14

175-449

SCREW,Phil Truss Hd, #10 - 32 x 3/4"

- brush holder support

2шт.

15

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, , Support screw #10

2шт.

16

R15032

X

NUT - support screw

2шт.

17

A25373

BOLT

- thru, starter body

2шт.

18

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, , thru bolt 5/16"

2шт.

19

A40800

ARMATURE

- starter

1шт.

20

A41917

WASHER,14.25mm ID x 24.89mm OD x 1.57mm Thk

- brake, comm. end

1шт.

21

R21557

COIL ASSY.

- field

1шт.

22

R15017

STUD

- terminal

1шт.

23

R15010

BUSHING

- terminal stud insulation (In frame)

1шт.

24

A42010

WASHER

- insulated, terminal stud

1шт.

25

R15013

WASHER

- terminal stud

1шт.

26

A25370

CONNECTOR, ELEC

CONNECTOR - term., Serial Range: stud-solenoid

1шт.

27

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , Terminal stud 3/8"

1шт.

28

R15014

NUT

- terminal stud

1шт.

29

R15115

SHOE

- pole

1шт.

30

74-610

SCREW,3/8" - 24 x 5/8"

- pole shoe

4шт.

Выбрано товаров: 31
