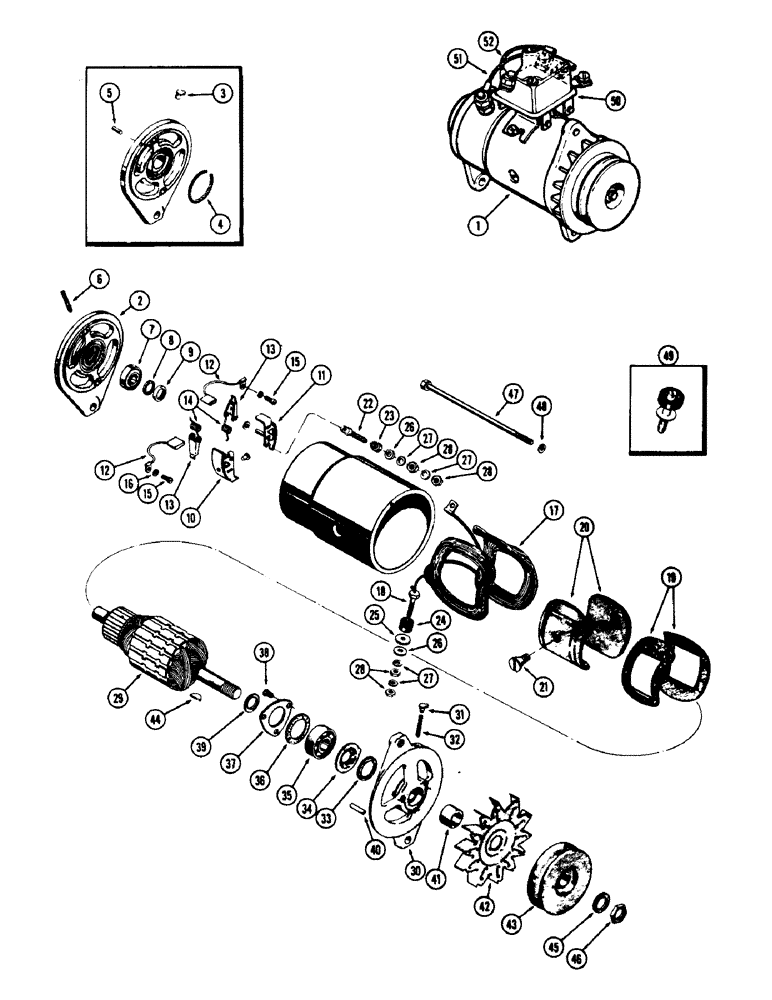

Запчасти Case W7 (078) - A33983 & A22684 GENERATORS, 301 DIESEL AND 284 SPARK IGNITION ENG. (04) - ELECTRICAL SYSTEMS

1

A33983

GENERATOR

GENERATOR ASSY. - engine (Delco #1100444), Includes: Ref. 2 - 52

1шт.

A22684

SPARE PART GENERATOR ASSY. - engine (Delco #1100407) (Order A33983), Includes: Ref. 2 - 52

1шт.

104017A1R

REMAN-GENERATOR

Remanufactured 12 VOLT 25 AMP Generator

1шт.

104017A1C

CORE-GENERATOR

Return Number, 12 VOLT 25 AMP Generator

1шт.

2

A25413

HOUSING

HOUSING ASSY. - commutator end, Includes: Ref. 3 - 5

1шт.

3

219-202

OILER

OILER - commutator end

1шт.

4

R15087

SPARE PART CLAMP - bearing (Rubber)

1шт.

5

R15095

SPARE PART PIN - locating, commutator end (1/4 x 3/4")

1шт.

6

R16165

SPARE PART WICK - oil, commutator end, Includes: Ref. 7

1шт.

7

A25461

BALL BEARING,0.6693" ID x 1.5748" OD x 0.4724"

BEARING - ball, commutator end

1шт.

8

A41929

WHEEL

WASHER - comm. end (Felt) (29/32 x 1-1/2 x 3/32")

1шт.

9

A41928

SPARE PART CUP - felt washer retainer

1шт.

10

A40703

NOZZLE HOLDER

HOLDER ASSY. - ground brush

1шт.

11

A40704

NOZZLE HOLDER

HOLDER ASSY. - insulated brush

1шт.

12

R4286

BRUSH, COMMUTATOR

BRUSH BRUSH - main

2шт.

13

R15090

ARM

ARM - brush

2шт.

14

R16161

VALVE SPRING

SPRING - brush

2шт.

15

182-513

SCREW,Sl Pan Hd, #6 - 32 x 1/4"

SCREW - brush lead (#6 x 1/4" N.C. rd. hd.)

2шт.

16

192-15

LOCK WASHER,Helical Spring, #6, 0.145" ID, CST, ZND

Washer, Lock, #6

2шт.

17

R16149

COIL ASSY.

COIL ASSY. - field, Includes: Ref. 18 and 19

1шт.

18

NSS

NOT SOLD SEPARAT

STUD - terminal, field coil (Order ref. 49)

1шт.

19

R16152

INSULATOR

INSULATOR - field coil

2шт.

20

A40700

SPARE PART SHOE - pole

2шт.

21

74-610

SCREW,3/8" - 24 x 5/8"

SCREW - pole shoe

2шт.

22

A40701

STUD

STUD - armature terminal

1шт.

23

R16147

BUSHING

BUSHING - armature terminal insulation

1шт.

24

NSS

NOT SOLD SEPARAT

BUSHING - field terminal insulation (Order ref. 49)

1шт.

25

R16148

WASHER

WASHER - insulation, field stud (See ref. 49)

1шт.

26

A41927

WASHER

WASHER - terminal stud (7/32 x 9/16 x 1/32")

2шт.

27

192-17

LOCK WASHER,#12

Washer, Lock, , Terminal stud #12

4шт.

28

86512084

NUT,#12-24

- terminal stud #12-24

4шт.

29

A40377

ARMATURE

ARMATURE ASSY. - (Used w/A33983 generator)

1шт.

29

A25429

X

ARMATURE ASSY. - (Used w/A22684 generator)

1шт.

30

A25442

HOUSING

HOUSING ASSY. - drive end, Includes: Ref. 31 and 32

1шт.

31

219-202

OILER

OILER - housing

1шт.

32

R16165

SPARE PART WICK - oil, housing

1шт.

33

R16168

WASHER

WASHER - felt, drive hsg. (29/32 x 1-9/32 x 1/8")

1шт.

34

R16169

LARGE PLATE

PLATE, LARGE RETAINER - felt washer

1шт.

35

G10623

BALL BEARING

BEARING - ball, drive housing

1шт.

36

R16170

GASKET

GASKET - bearing retainer

1шт.

37

R15101

PLATE

PLATE - retainer, drive housing bearing

1шт.

38

A41959

SCREW,#10 - 32 x 3/8"

SCREW - mounting, retainer plate

3шт.

39

R15100

SPARE PART WASHER - spacer, inner drive housing

1шт.

40

NSS

NOT SOLD SEPARAT

PIN - dowel, drive housing locating

1шт.

41

R16166

BUSHING

COLLAR - spacer inner drive housing

1шт.

42

A25449

FAN

FAN - vent, drive end

1шт.

43

A22366

PULLEY

PULLEY - drive, generator

1шт.

44

126-111

WOODRUFF KEY,#5, 1/8" x 5/8", HT

WOODRUFF KEY, , Drive end #5, 1/8" x 5/8", HT

1шт.

45

R16171

SPRING WASHER

WASHER - lock, shaft nut

1шт.

46

A25546

NUT

NUT - armature shaft, drive end

1шт.

47

A40129

BOLT

BOLT - thru

2шт.

48

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, , thru bolt 5/16"

2шт.

49

A40702

STUD

STUD KIT - field coil terminal

1шт.

50

A20792

REGULATOR

REGULATOR ASSY. - voltage

1шт.

51

A41930

SPARE PART WIRE - arm. term. to vol. reg. (6" long)

1шт.

52

R16179

ELECTRICAL WIRE

WIRE WIRE - field term. to vol. reg. (4" long)

1шт.
