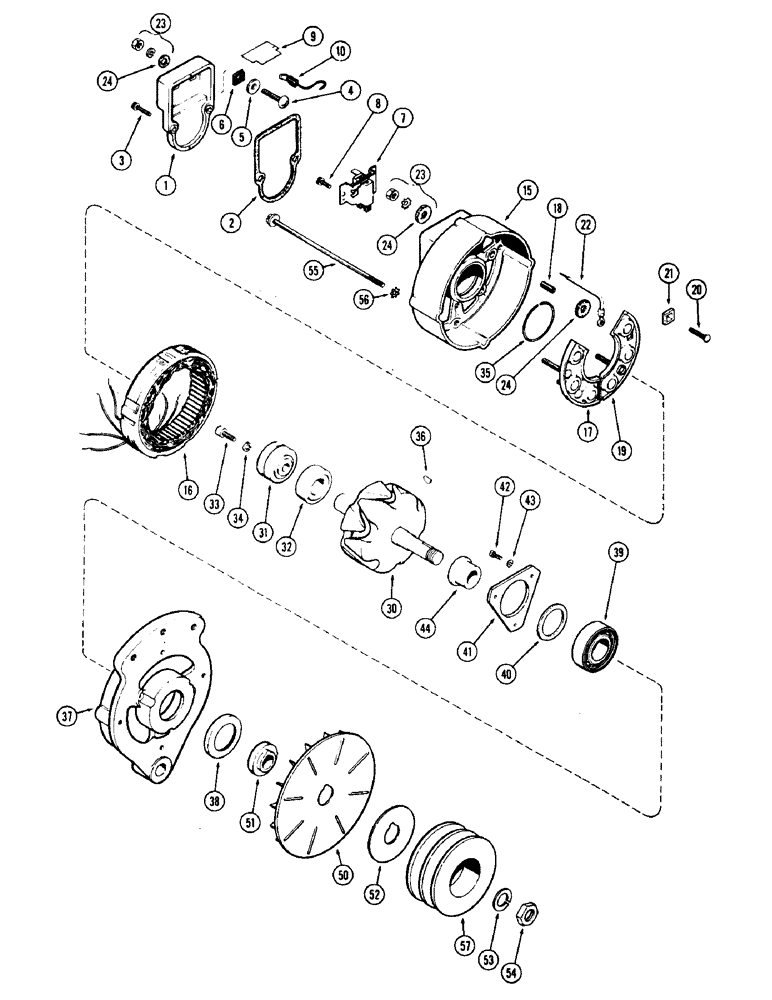

Запчасти Case W7 (074) - A41340 ALTERNATOR, 301 DIESEL AND 284 SPARK IGNITION ENGINES (04) - ELECTRICAL SYSTEMS

A41340

ALTERNATOR

ALTERNATOR ASSY. - 55 amp. (Motorola #MH12N-601), Includes: Ref. 1 - 56

1шт.

104022A1R

REMAN-ALTERNATOR

Remanufactured Alternator

1шт.

104022A1C

CORE-ALTERNATOR

Return Number, 12 VOLT, 55 Amp Alternator

1шт.

1

A41435

COVER ASSY

COVER - rear housing

1шт.

2

A41341

GASKET

GASKET -, Serial Range: cover-body

1шт.

3

187-482

SPARE PART SCREW - cover, #8 x 3/4" hex. hd. self tapping

2шт.

4

A41036

SCREW

BOLT - field wire, #10 N.F., rd. hd.

1шт.

5

G49045

WASHER

WASHER - terminal, 17/64 x 39/64" x 16 ga.

1шт.

6

A41041

INSULATOR

INSULATOR - brush

1шт.

7

A41048

BRUSH, COMMUTATOR

BRUSH HOLDER ASSY. - brush

1шт.

8

187-480

SCREW,Hex Hd, #8 x 1/2"

SCREW - holder, #8 x 1/2" hex., self tapping

2шт.

9

A41042

INSULATOR

INSULATOR - brush

1шт.

10

A41046

ELECTRICAL WIRE

WIRE CABLE - internal field

1шт.

15

A41045

COVER

HOUSING - rear

1шт.

16

A41327

ARMATURE

STATOR ASSY. - alternator

1шт.

17

A41056

DIODE

DIODE ASSY. - negative (Black)

1шт.

18

A41040

INSULATOR

SLEEVE - nylon, 13/64 x 17/16 x 68", cut as required

1шт.

19

A41438

DIODE

DIODE ASSY. - positive (Red)

1шт.

20

A41436

SCREW

STUD - rectifier ring, positive diode

1шт.

21

A41041

INSULATOR

INSULATOR - rectifier stud

1шт.

22

A41432

CABLE PULLING GRIP

CABLE - phase top (For positive diode)

1шт.

23

A41060

LOCK NUT

NUT - lock, package (Pack of 7 w/lockwashers), Includes: Ref. 24

1шт.

24

A41038

WASHER

WASHER - insulating, 13/64 x 3/4 x 1/16"

1шт.

30

A41442

ROTOR

ROTOR ASSY. - alternator, Includes: Ref. 31 - 34

1шт.

31

A41032

SLIP RING

RING - slip

1шт.

32

A41439

BEARING

BEARING - sealed, 21/32 x 1-37/64 x 15/32"

1шт.

33

163-4

SCREW,Hex, #10 - 32 x 5/8"

SCREW - cap, #10 x 5/8" N.C. sckt. hd.

1шт.

34

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

1шт.

35

A41049

RUBBER SEAL

RETAINER - rear housing

1шт.

36

126-111

WOODRUFF KEY,#5, 1/8" x 5/8", HT

WOODRUFF KEY, , Pulley #5, 1/8" x 5/8", HT

1шт.

37

A41437

HOUSING

HOUSING - front (w/adapter)

1шт.

38

A41047

SEAL ASSY.

SEAL - bearing, front housing

1шт.

39

A41054

X

BEARING - sealed, front, 63/64 x 2-3/64 x 19/32"

1шт.

40

A41039

RETAINER

WASHER - felt, 1-1/4 x 1-5/8 x 3/32"

1шт.

41

A41050

SPARE PART RETAINER - felt washer

1шт.

42

182-84

SCREW,Slotted Pan Hd, #8-32 x 3/8"

SCREW - #8 x 3/8" N.C. pan hd.

3шт.

43

192-16

LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND

Washer, Lock, #8

3шт.

44

A41052

SLEEVE

SLEEVE - shaft

1шт.

50

A41058

X

FAN - cooling, alternator

1шт.

51

A41053

SPARE PART SPACER - fan

1шт.

52

A41051

SPACER

SPACER - pulley

1шт.

53

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

54

A41035

NUT

NUT - pulley, 5/8" N.F. hex.

1шт.

55

A41037

BOLT

BOLT - rear housing

4шт.

56

193-41

WASHER,Ext-Int Tooth, #8

WASHER, LOCK, Ext-Int Tooth, #8

4шт.

57

A41057

PULLEY

PULLEY - alternator drive

1шт.
