Запчасти Case W7 (072) - A22846 DISTRIBUTOR, (284) SPARK IGNITION ENGINE (04) - ELECTRICAL SYSTEMS

A22846

X

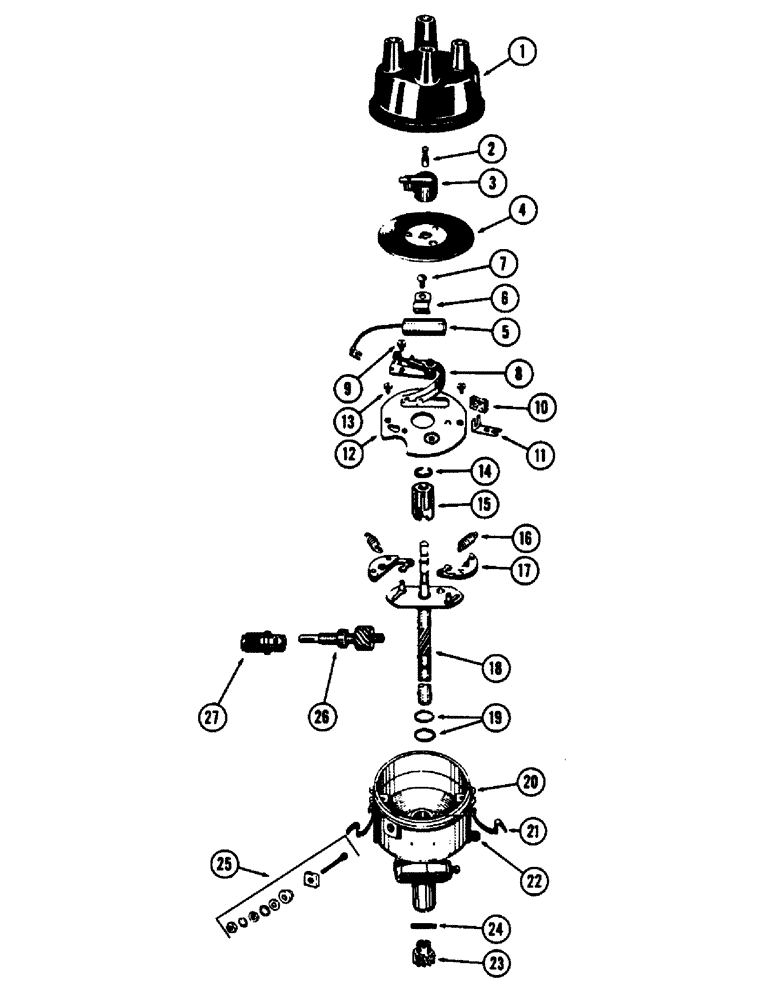

DISTRIBUTOR ASSY. - ignition (Wico #X30269) (Order A24508, see figure 70), Includes: Ref. 1 - 27

1шт.

1

A20785

CAP

ASSY. - distributor

1шт.

2

A19802

BRUSH & SPRING ASSY. - contract, carbon

1шт.

3

A20784

ROTOR

ASSY. - distributor

1шт.

4

A20783

SEAL

PLATE ASSY. - dust seal

1шт.

5

A21540

CONDENSER

- distributor

1шт.

6

A19804

CLAMP - condenser

1шт.

7

A19805

SCREW - condenser clamp

1шт.

8

A20780

CONTACT

- breaker

1шт.

9

A19806

SCREW - contact set clamp

1шт.

10

A22137

WIPER - cam, felt

1шт.

11

A19808

BRACKET - cam wiper

1шт.

12

A19809

PLATE ASSY. - breaker

1шт.

13

A19805

SCREW - breaker clamp

2шт.

14

A19811

CIRCLIP,#43, .375" Dia, E-Type

RING - retaining, , breaker cam #43, .375" Dia, E-Type

1шт.

15

A19812

CAM - breaker

1шт.

16

A19813

SPRING KIT - advance (Set of 2)

1шт.

17

A19814

WEIGHT

KIT - advance (Set of 2)

1шт.

18

A19815

SHAFT ASSY. - drive

1шт.

19

A19816

SEAL - oil, drive shaft

2шт.

20

NSS

NOT SOLD SEPARAT

BASE ASSY. - distributor

1шт.

21

A19818

CLIP

- spring, cap retaining

2шт.

22

A19819

OILER - drive shaft

1шт.

23

A19820

GEAR

- drive

1шт.

24

A19821

PIN - roll, drive gear retaining

1шт.

25

A19822

STUD KIT - connection

1шт.

26

A19823

SHAFT ASSY. - tach. drive

1шт.

27

A19824

HOUSING - tach. drive shaft

1шт.
