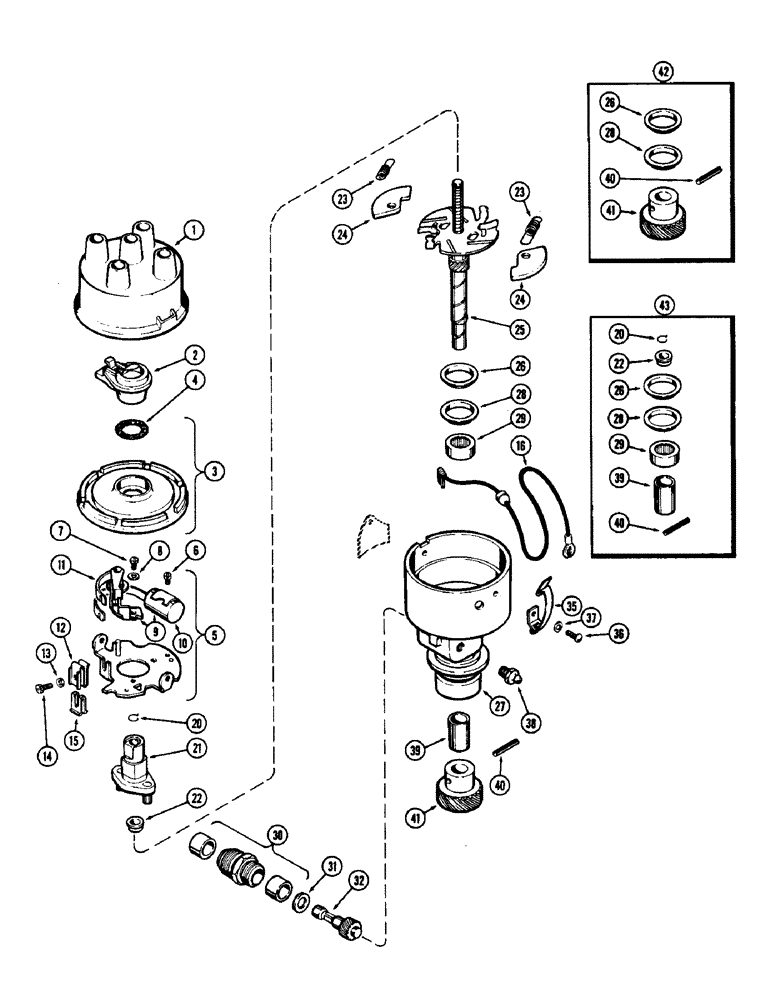

Запчасти Case W7 (070) - A24508 DISTRIBUTOR, (284) SPARK IGNITION ENGINE (04) - ELECTRICAL SYSTEMS

A24508

DISTRIBUTOR

ASSY. - ignition (Auto-Lite or Prestolite #IBT 4402), Includes: Ref. 1 - 43

1шт.

1

A24564

CAP

ASSY. - distributor

1шт.

2

A24566

ROTOR

ASSY. - distributor

1шт.

3

A24763

PLATE

ASSY. - seal, Includes: Ref. 4

1шт.

4

A24764

WASHER

- plate sealing (Felt)

1шт.

5

A40330

PLATE

ASSY. - breaker, Includes: Ref. 6 - 16

1шт.

6

169-56

SCREW - condenser mtg., #6 x 3/16" N.C. fill. hd.

1шт.

7

A24776

SCREW,Locking, #8 - 32 x 3/16"

- contact breaker, #8 x 3/16" N.C. fill. hd.

1шт.

8

195-509

WASHER,3/16"

- #8

1шт.

9

A40930

KIT

CONTACT KIT - points & condenser, Includes: Ref. 10 and 11

1шт.

10

NSS

NOT SOLD SEPARAT

CONDENSER - distributor (Order ref. 9)

1шт.

11

NSS

NOT SOLD SEPARAT

CONTACT - breaker (Order ref. 9)

1шт.

12

A24774

CLIP

- retaining

1шт.

13

195-506

WASHER,#6

- #6

1шт.

14

A24775

SCREW,0.138"-32 x 1/32"

- spring clamp, #6 x 5/8" N.C. hex.

1шт.

15

A24773

INSULATOR

- spring clamp

1шт.

16

A24772

HARNESS

LEAD ASSY. - primary

1шт.

20

A24756

RING - snap, cam retaining

1шт.

21

A24762

CAM & TOP ASSY. - distributor

1шт.

22

A24757

SPACER - cam

1шт.

23

A24778

SPRING KIT

- governor weights (Set of 2)

1шт.

24

A24754

WEIGHT - governor

2шт.

25

A24768

DRIVE SHAFT

SHAFT - distributor drive

1шт.

26

A24753

WASHER

- drive, shaft outer

1шт.

27

NSS

NOT SOLD SEPARAT

BASE ASSY. - distributor (Order A24508)

1шт.

28

A24752

WASHER

- drive shaft inner

1шт.

29

NSS

NOT SOLD SEPARAT

BEARING - needle (Order ref. 43)

1шт.

30

A24781

HOUSING ASSY. - tach. drive (w/bushing)

1шт.

31

A24755

WASHER - thrust, tach. drive shaft

1шт.

32

A24761

SHAFT

& GEAR ASSY. - tach. drive

1шт.

35

A40329

SPRING

CLAMP ASSY. - distributor cap, Includes: Ref. 36 and 37

2шт.

36

A24779

SCREW - clamp, #8 x 15/16" N.C. rd. hd., mach.

2шт.

37

192-16

LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND

Washer, Lock, #8

2шт.

38

219-6

LUBE NIPPLE,1/4" - 28 NPTF

FITTING - grease, 1/4" P.T.

1шт.

39

NSS

NOT SOLD SEPARAT

BEARING - housing (Bronze) (Order ref. 43)

1шт.

40

138-60

LOCK PIN,1/8" x 15/16", Slotted

PIN, , Gear 1/8" x 15/16", Slotted

1шт.

41

NSS

NOT SOLD SEPARAT

GEAR - drive shaft (Order ref. 42)

1шт.

42

A40332

GEAR

KIT - repair, gear & washer

1шт.

43

A40331

BEARING

KIT - repair-thrust washer & bearing

1шт.
