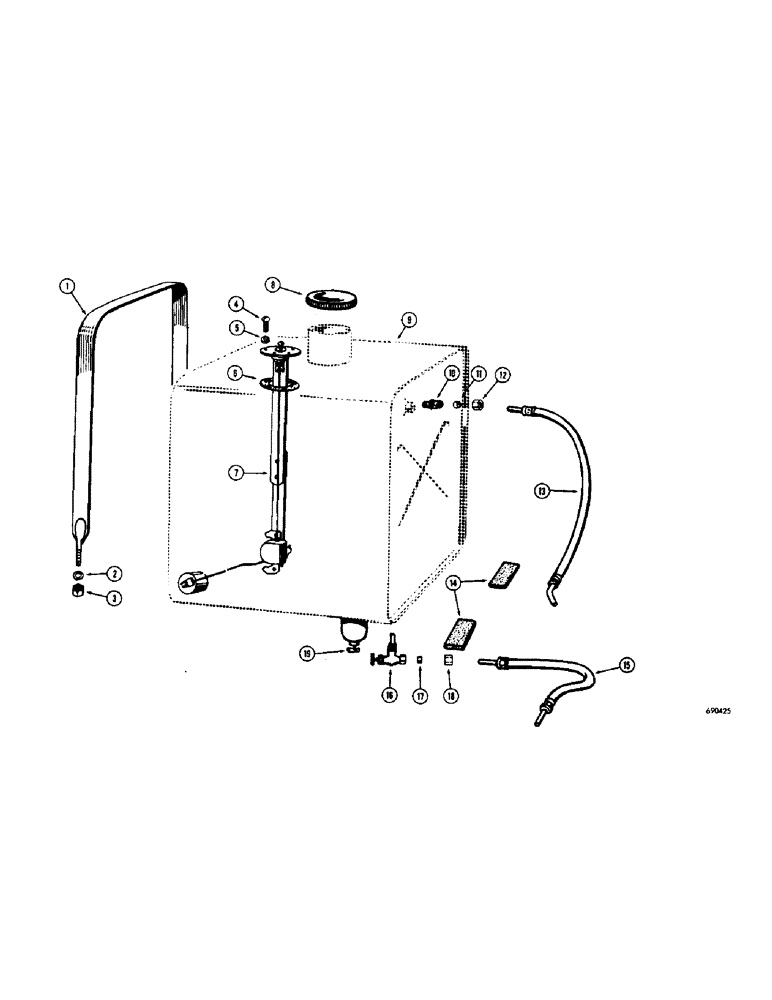

Запчасти Case W7 (098[1]) - FUEL TANK DIESEL ENGINE (03) - FUEL SYSTEM

1

A17222

STRAP

- mounting, fuel tank

2шт.

2

92-6

LOCK WASHER,3/8"

4шт.

3

25-116

NUT,Hex, 3/8"-24, G5

- hex. (3/8" - 24 NF)

4шт.

4

173-221

SCREW,Sl Rnd Hd, #10 - 32 x 7/16"

RHMS - #10-32 NC x 7/16" (Zinc plated)

5шт.

5

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

5шт.

6

A11822

GASKET

- sending, Serial Range: unit-tank

1шт.

7

A17219

UNIT

SENDING UNIT - fuel gauge

1шт.

8

A33558

CAP

- filler

1шт.

9

A17217

TANK - fuel

1шт.

222-23

FITTING,1/2"-24 x 1/4" NPTF w/Nut

CONNECTOR ASSEMBLY - flex tube, Includes: Ref. 10 - 12

1шт.

10

NSS

NOT SOLD SEPARAT

CONNECTOR - flex tube

1шт.

11

222-102

SLEEVE,1/4" Tube

1шт.

12

87017024

TUBE NUT,1/2"-24

NUT - flex tube fitting

1шт.

13

L10041

HOSE ASSY.

HOSE - return, injector, Serial Range: leak-off-tank

1шт.

14

A7390

CUSHION - tank mounting

4шт.

15

A17221

HOSE

-, Serial Range: tank-filter

1шт.

A27955

VALVE

ASSEMBLY - fuel shut-off, Includes: Ref. 16 - 18

1шт.

16

NSS

NOT SOLD SEPARAT

VALVE - needle, fuel tank

1шт.

17

222-104

SLEEVE,3/8" Tube

- flex tube fitting

1шт.

18

222-114

NUT,5/8"-24

NUT - flex tube fitting

1шт.

19

217-102

PLUG, DRAIN

VALVE - water drain

1шт.
