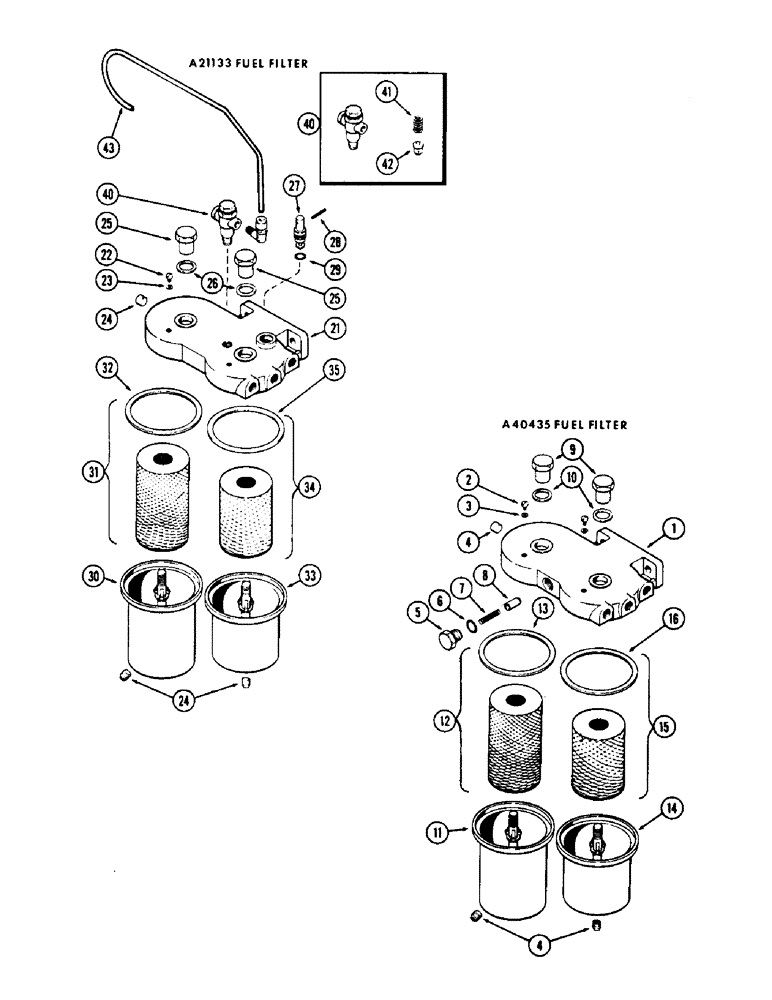

Запчасти Case W7 (040) - A40435 FUEL FILTER, (301) DIESEL ENGINE, A21133 FUEL FILTER (03) - FUEL SYSTEM

A40435

FILTER

ASSY. - primary fuel (1st & 2nd stage), Includes: Ref. 1 - 16

1шт.

1

A24915

HEAD - filter

1шт.

2

A20663

SCREW,Fil Hd, #10 - 32 x 5/16"

- bleed

2шт.

3

A20662

GASKET

WASHER - bleed screw

2шт.

4

221-1849

PLUG

- pipe, 1/8" P.T. ctsk. sckt. hd.

1шт.

5

A24916

PLUG

- relief valve

1шт.

6

A27410

O-RING,0.487" ID x 0.693" OD x 0.103"

"O" RING - valve plug, 1/2 x 11/16 x 3/32"

1шт.

7

A24918

SPRING

- relief valve

1шт.

8

A24917

PLUNGER

- relief valve

1шт.

9

A21131

NUT

- body retaining

2шт.

10

A28055

GASKET

- retaining nut

2шт.

11

A21129

BODY

- filter, 1st stage

1шт.

12

A21141

FILTER, ELEMENT

ELEMENT ASSY. - 1st stage filter, 4-13/16" long, Includes: Ref. 13

1шт.

13

A28056

GASKET

-, Serial Range: body-head

1шт.

14

A21132

BODY

- filter, 2nd stage

1шт.

15

A7627

FILTER, ELEMENT

ELEMENT ASSY. - 2nd stage filter, 3-7/8" long, Includes: Ref. 16

1шт.

16

A28056

GASKET

-, Serial Range: body-head

1шт.

A21133

FILTER

(NS) FILTER ASSY. - primary fuel, 1st & 2nd stage (order A40435 primary filter), Includes: Ref. 21 - 35

1шт.

21

A21077

FILTER HEAD

HEAD - filter, A21133 fuel filter

1шт.

22

A20663

SCREW,Fil Hd, #10 - 32 x 5/16"

- bleed, A21133 fuel filter

2шт.

23

A20662

GASKET

WASHER - bleed screw, A21133 fuel filter

2шт.

24

221-1849

PLUG

- 1/8" P.T. ctsk. sckt. hd., A21133 fuel filter

3шт.

25

A21131

NUT

- body retaining, A21133 fuel filter

2шт.

26

A28055

GASKET

- retaining nut, A21133 fuel filter

2шт.

27

A21097

VALVE - relief, A21133 fuel filter

1шт.

28

138-61

LOCK PIN,1/8" x 1", Slotted

PIN, , A21133 fuel filter 1/8" x 1", Slotted

1шт.

29

A29197

O-RING,0.424" ID x 0.63" OD x 0.103"

"O" RING - sealing, A21133 fuel filter

1шт.

30

A21129

BODY

- filter, 1st stage, A21133 fuel filter

1шт.

31

A21141

FILTER, ELEMENT

ELEMENT ASSY. - 1st stage filter (4-13/16" long), A21133 fuel filter, Includes: Ref. 32

1шт.

32

A28056

GASKET

- body to head, A21133 fuel filter

1шт.

33

A21132

BODY

- filter, 2nd stage, A21133 fuel filter

1шт.

34

A7627

FILTER, ELEMENT

ELEMENT ASSY. - 2nd stage filter, 3-7/8" long, A21133 fuel filter

1шт.

35

A28056

GASKET

- body to head, A21133 fuel filter

1шт.

40

A20637

LOCK VALVE

VALVE ASSY. - fuel filter, A21133, Includes: Ref. 41 and 42

1шт.

41

A41003

SPRING - overflow valve, A21133 fuel filter

1шт.

42

A41321

INSULATOR

VALVE - overflow, A21133 fuel filter

1шт.

43

A20638

TUBE - #6 injector to relief valve, A21133 fuel filter

1шт.
