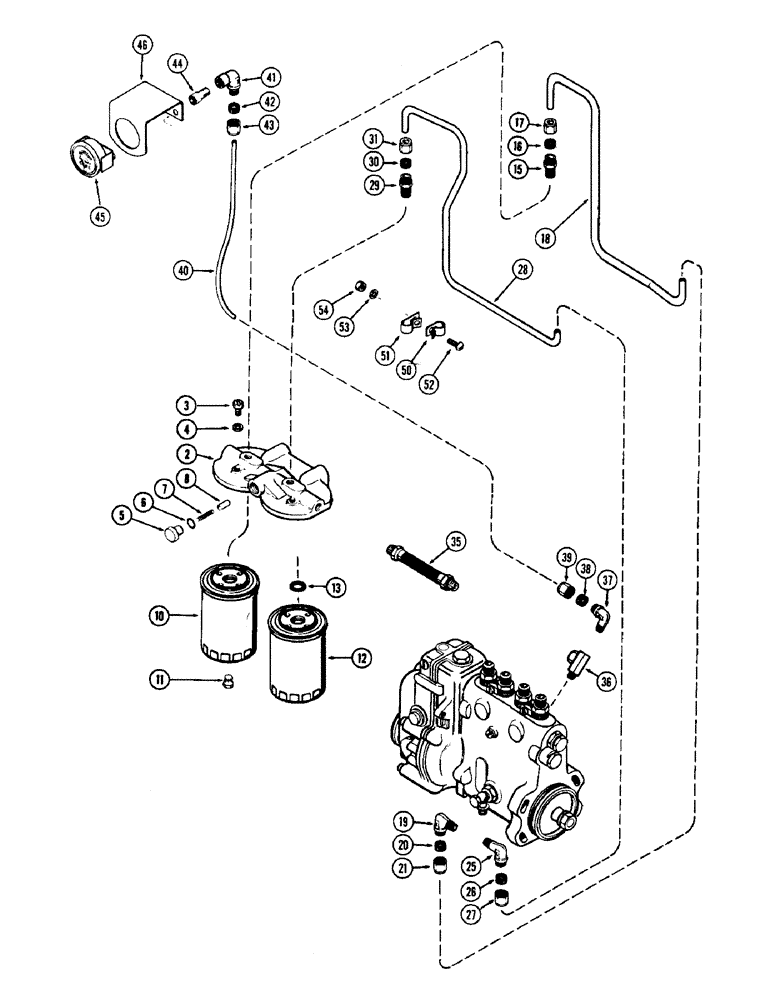

Запчасти Case W7 (037A) - FUEL INJECTION FILTER SYSTEM, (301) DIESEL ENGINE, 2 STAGE FILTERING SYSTEM (03) - FUEL SYSTEM

A60032

HEAD

ASSY. - fuel filter, Includes: Ref. 2 - 8

1шт.

2

A57860

HEAD

- 1st & 2nd stage filter

1шт.

3

A20663

SCREW,Fil Hd, #10 - 32 x 5/16"

- bleed

2шт.

4

A20662

GASKET

- bleed screw

2шт.

5

A24916

PLUG

- filter pressure valve

1шт.

6

A27410

O-RING,0.487" ID x 0.693" OD x 0.103"

"O" RING - pressure valve plug

1шт.

7

A24918

SPRING

- filter pressure vlave

1шт.

8

A24917

PLUNGER

- filter pressure valve

1шт.

CASA41745

FUEL FILTER

ELEMENT KIT - spin-on filters, Includes: Ref. 10 - 13

1шт.

10

A58712

KIT

FILTER - 1st stage, Includes: Ref. 11

1шт.

11

221-1661

PLUG

- 1/8" P.T. hex. hd.

1шт.

12

A58713

FILTER

- 2nd stage, Includes: Ref. 13

1шт.

13

A42315

GASKET

- 2nd stage filter

1шт.

15

222-27

HYD CONNECTOR,5/8"-24 x 1/4" NPTF W/Nut

CONNECTOR ASSY. - 3/8" tube, 1/4" P.T., Includes: Ref. 16 and 17

1шт.

16

222-104

SLEEVE,3/8" Tube

- for 3/8" Tube

1шт.

17

222-114

NUT,5/8"-24

NUT - for 3/8" tube

1шт.

18

A60075

TUBE

- 1st stage to inj. pump (3/8" tube)

1шт.

19

222-47

ELBOW,90 Degree, 5/8"-24 Fem x 1/4"-27 NPTF

ASSY. - 3/8" tube, 1/4" P.T., Includes: Ref. 20 and 21

1шт.

20

222-104

SLEEVE,3/8" Tube

- for 3/8" Tube

1шт.

21

222-114

NUT,5/8"-24

NUT - for 3/8" tube

1шт.

25

222-45

ELBOW,90 Degree, 9/16"-24 Fem x 1/4"-27 NPTF

ASSY. - 5/16" tube, 1/4" P.T., Includes: Ref. 26 and 27

1шт.

26

222-103

SLEEVE,5/16" Tube

1шт.

27

222-113

TUBE NUT,9/16"-24

NUT - for 5/16" tube

1шт.

28

A57863

TUBE

- pump to 2nd stage (5/16" tube)

1шт.

29

222-25

HYD CONNECTOR,9/16"-24 x 1/4" NPTF w/Nut

CONNECTOR ASSY. - 5/16" tube, 1/4" P.T., Includes: Ref. 30 and 31

1шт.

30

222-103

SLEEVE,5/16" Tube

1шт.

31

222-113

TUBE NUT,9/16"-24

NUT - for 5/16" tube

1шт.

35

A57861

HOSE

- 2nd stage to inj. pump

1шт.

36

A20539

FITTING

CONNECTOR - inj. pump to filter hose

1шт.

37

222-40

ELBOW,90 Degree, 3/8"-24 Fem x 1/8"-27 NPTF

ASSY. - 1/8" tube, 1/8" P.T., Includes: Ref. 38 and 39

1шт.

38

222-100

TUBE NUT,1/8" Tube

SLEEVE - for 1/8" Tube

1шт.

39

222-110

TUBE NUT,3/8"-24

NUT - for 1/8" tube

1шт.

40

A9364

TUBE

- fuel, Serial Range: pump-gauge

1шт.

41

222-53

ELBOW,3/8"-24 x 1/8 NPTF

ASSY. - 1/8" tube, 1/8" P.T., Includes: Ref. 42 and 43

1шт.

42

222-100

TUBE NUT,1/8" Tube

SLEEVE - for 1/8" Tube

1шт.

43

222-110

TUBE NUT,3/8"-24

NUT - for 1/8" tube

1шт.

44

A28061

FITTING

SNUBBER - gauge

1шт.

45

A8101

GAUGE

- fuel oil pressure

1шт.

46

A57077

BRACKET

SUPPORT - gauge

1шт.

50

A20688

CLIP

- 1st stage filter tube

1шт.

51

A27814

X

CLIP - 2ns stage tube

1шт.

52

75-410

SCREW,Rd, 1/4" - 20 x 5/8"

- 1/4 x 5/8" N.C. rd. hd.

1шт.

53

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

54

25-104

NUT,1/4"-20, G5

1шт.
