Запчасти Case W7 (036) - FUEL INJECTION FILTER SYSTEM, (301) DIESEL ENGINE, 3 STAGE FILTERING SYSTEM (03) - FUEL SYSTEM

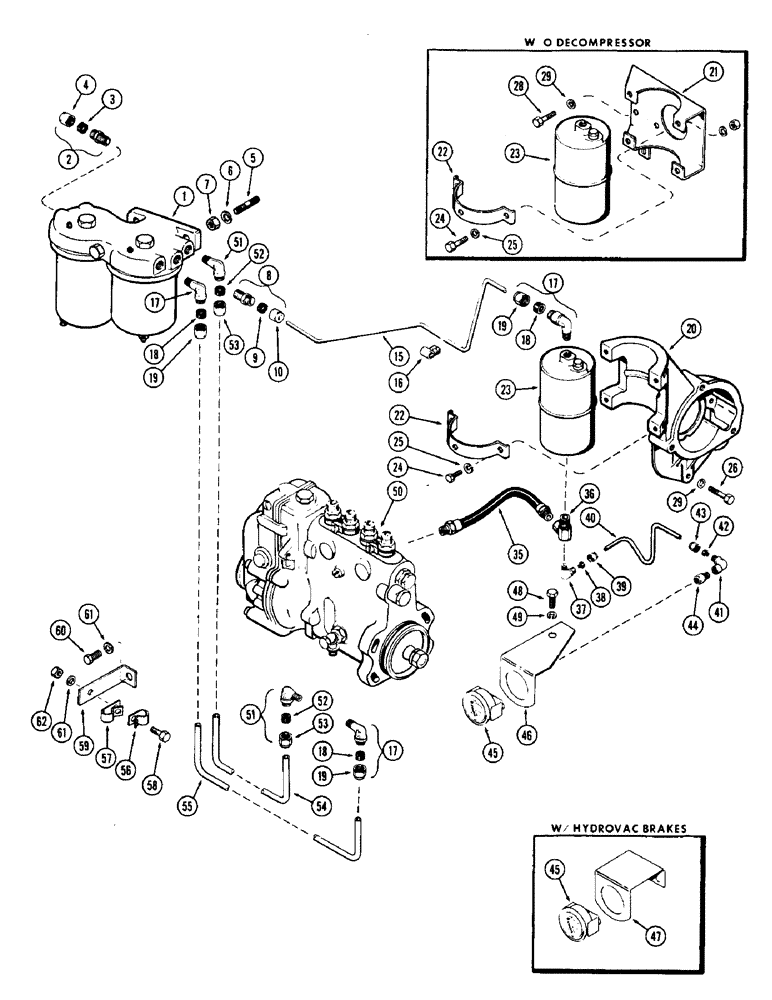

Схема запчастей Case W7 - (036) - FUEL INJECTION FILTER SYSTEM, (301) DIESEL ENGINE, 3 STAGE FILTERING SYSTEM (03) - FUEL SYSTEM

Артикул

Название

Примечание

Количество

1

A40435

FILTER

ASSY. - primary fuel (Late models) (Repairs, figure 40)

1шт.

1

A21133

FILTER

ASSY. - primary fuel (Early Model) (Order A40435) (Repairs figure 40)

1шт.

2

222-27

HYD CONNECTOR,5/8"-24 x 1/4" NPTF W/Nut

CONNECTOR ASSY. - 3/8" tube, 1/4" P.T., Includes: Ref. 3 and 4

2шт.

3

222-104

SLEEVE,3/8" Tube

- 3/8" Tube

1шт.

4

222-114

NUT,5/8"-24

NUT - 3/8" tube

1шт.

5

A26554

STUD - mounting, primary filter

2шт.

6

92-6

LOCK WASHER,3/8"

2шт.

7

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex.

2шт.

8

222-25

HYD CONNECTOR,9/16"-24 x 1/4" NPTF w/Nut

CONNECTOR ASSY. - 5/16" tube, 1/4" P.T., Includes: Ref. 9 and 10

1шт.

9

222-103

SLEEVE,5/16" Tube

1шт.

10

222-113

TUBE NUT,9/16"-24

NUT - 5/16" tube

1шт.

15

A22253

TUBE

- primary to final filter

1шт.

16

A7922

CLIP

- tube

1шт.

17

222-45

ELBOW,90 Degree, 9/16"-24 Fem x 1/4"-27 NPTF

ASSY. - 5/16" tube, 1/4" P.T., Includes: Ref. 18 and 19

3шт.

18

222-103

SLEEVE,5/16" Tube

1шт.

19

222-113

TUBE NUT,9/16"-24

NUT - 5/16" tube

1шт.

20

A22183

BRACKET - mounting, final filter (w/decompressor)

1шт.

21

A33617

BRACKET - mounting, final filter (w/o decompressor)

1шт.

22

A21144

CLAMP

- final filter

1шт.

23

A57228

FILTER

- fuel, final (Replaces A27983)

1шт.

24

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

4шт.

25

92-5

LOCK WASHER,5/16"

4шт.

26

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

26

13-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

- 5/16 x 1-1/2" N.C. hex

2шт.

28

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3шт.

29

92-6

LOCK WASHER,3/8"

3шт.

35

A21070

HOSE,9.53mm ID x 203.2mm L

- Final filter to fuel pump 0.38" ID x 8.00"

1шт.

36

A20539

FITTING

UNION - fuel hose, 90 degrees

1шт.

37

222-40

ELBOW,90 Degree, 3/8"-24 Fem x 1/8"-27 NPTF

ASSY. - 1/8" tube, 1/8" P.T., Includes: Ref. 38 and 39

1шт.

38

222-100

TUBE NUT,1/8" Tube

SLEEVE - 1/8" Tube

1шт.

39

222-110

TUBE NUT,3/8"-24

NUT - 1/8" tube

1шт.

40

A17496

TUBE - fuel pressure gauge

1шт.

41

222-53

ELBOW,3/8"-24 x 1/8 NPTF

ASSY. - 1/8" tube, 1/8" P.T., Includes: Ref. 42 and 43

1шт.

42

222-100

TUBE NUT,1/8" Tube

SLEEVE - 1/8" Tube

1шт.

43

222-110

TUBE NUT,3/8"-24

NUT - 1/8" tube

1шт.

44

A28061

FITTING

SNUBBER - fuel gauge

1шт.

45

A8101

GAUGE

- fuel pressure

1шт.

46

A17495

SUPPORT - fuel gauge

1шт.

47

A57077

BRACKET

SUPPORT - fuel gauge (w/hydrovac brake)

1шт.

48

13-712

SCREW,Hex, 7/16" - 14 x 3/4", Gr 5, Full Thd

BOLT, Hex, 7/16"- 14 x 3/4", G5, Full Thd

1шт.

49

92-7

LOCK WASHER,7/16"

1шт.

50

A20448

PUMP ASSY. - fuel (See figure 38)

1шт.

51

222-47

ELBOW,90 Degree, 5/8"-24 Fem x 1/4"-27 NPTF

ASSY. - 3/8" tube, 1/4" P.T., Includes: Ref. 52 and 53

2шт.

52

222-104

SLEEVE,3/8" Tube

- 3/8" Tube

1шт.

53

222-114

NUT,5/8"-24

NUT - 3/8" tube

1шт.

54

A20650

TUBE

- 1st stage, Serial Range: filter-pump

1шт.

55

A20651

TUBE

- pump to 2nd stage filter

1шт.

56

A27814

X

CLIP - tube

1шт.

57

A20688

CLIP

- tube

1шт.

58

75-412

SCREW,Rd, 1/4" x 3/4"

- 1/4 x 3/4" rd. hd. mach.

1шт.

59

A20656

BRACKET - clip mounting

1шт.

60

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

61

92-5

LOCK WASHER,5/16"

1шт.

62

25-104

NUT,1/4"-20, G5

1шт.

Выбрано товаров: 54
