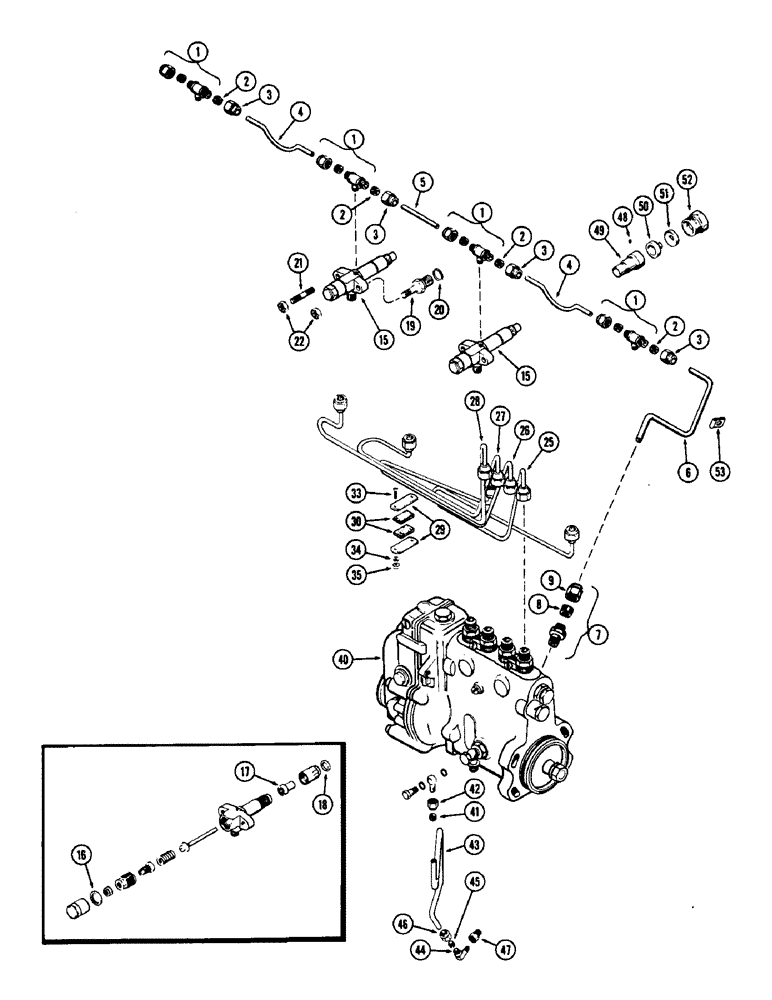

Запчасти Case W7 (034) - FUEL INJECTION SYSTEM, (301) DIESEL ENGINE (03) - FUEL SYSTEM

1

222-72

TEE,1/4" Flex Tube Run x 1/8" NPTF Br

ASSY. - 1/4" tube x 1/8" P.T., Includes: Ref. 2 and 3

4шт.

2

222-102

SLEEVE,1/4" Tube

2шт.

3

87017024

TUBE NUT,1/2"-24

NUT - 1/4" tube

2шт.

4

A27981

TUBE

- injector leak-off

2шт.

5

A20162

TUBE

- injector leak-off

1шт.

6

A22186

TUBE

- leak-off, #1, Serial Range: injector-pump

1шт.

7

A28098

VALVE

CONNECTOR ASSY. - check valve, Includes: Ref. 8 and 9

1шт.

8

222-102

SLEEVE,1/4" Tube

1шт.

9

87017024

TUBE NUT,1/2"-24

NUT - 1/4" tube

1шт.

15

A8013

NOZZLE INJECTION

INJECTOR ASSY. - fuel injection, Includes: Ref. 16 - 18

4шт.

16

A31062

GASKET

- injector cap

1шт.

17

A31159

NOZZLE INJECTION

NOZZLE ASSY. - injector, Includes: Ref. 18

1шт.

18

A27928

WASHER,14.22mm ID x 19.18mm OD x 2.06mm Thk

GASKET - nozzle seat

1шт.

19

A27929

STUD

- short, nozzle mounting

4шт.

20

A10679

GASKET

- nozzle stud

4шт.

21

A10678

STUD

- large, nozzle mounting

4шт.

22

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex.

8шт.

25

A20501

TUBE

ASSY. - fuel injection, #1 cylinder

1шт.

26

A20502

TUBE

ASSY. - fuel injection, #2 cylinder

1шт.

27

A20503

TUBE

ASSY. - fuel injection, #3 cylinder

1шт.

28

A20504

TUBE

ASSY. - fuel injection, #4 cylinder

1шт.

29

A28046

CLAMP

- injection tubes (4 tubes)

2шт.

30

A28047

CUSHION

- injection clamp

2шт.

29

A27977

CLAMP

- injection tubes (3 tubes)

2шт.

30

A27979

CUSHION

- tube clamp

2шт.

33

173-102

SCREW,Sl Rnd Hd, #10 - 24 x 1"

- mach., #10 x 1" N.C. rd. hd.

4шт.

34

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

4шт.

35

129-7

NUT,Hex, #10 - 24

- #10 N.C. hex.

4шт.

40

A20448

PUMP ASSY. - fuel (Repairs, figure 38)

1шт.

41

222-102

SLEEVE,1/4" Tube

1шт.

42

87017024

TUBE NUT,1/2"-24

NUT - 1/4" tube

1шт.

43

A17497

TUBE

- oil, pump to block oil gallery

1шт.

44

222-42

ELBOW,90 Degree, 1/2"-24 Fem x 1/8"-27 NPTF

- 1/4" tube x 1/8" P.T., 90 degrees, Includes: Ref. 45 and 46

1шт.

45

222-102

SLEEVE,1/4" Tube

1шт.

46

87017024

TUBE NUT,1/2"-24

NUT - 1/4" tube

1шт.

47

221-1052

PLUG

BUSHING - reducer, 3/8 to 1/8", Serial Range: tube-block

1шт.

48

A11810

PIN,3.19mm OD x 6.99mm L

- locating, powrcel body

4шт.

49

A22978

BODY

- powrcel

4шт.

50

A22975

CAP

- powrcel

4шт.

51

A11812

CLAMP

- powrcel

4шт.

52

A11813

PLUG

SCREW - powrcel clamp

4шт.

53

A20541

CLIP

- leak-off tube

1шт.
