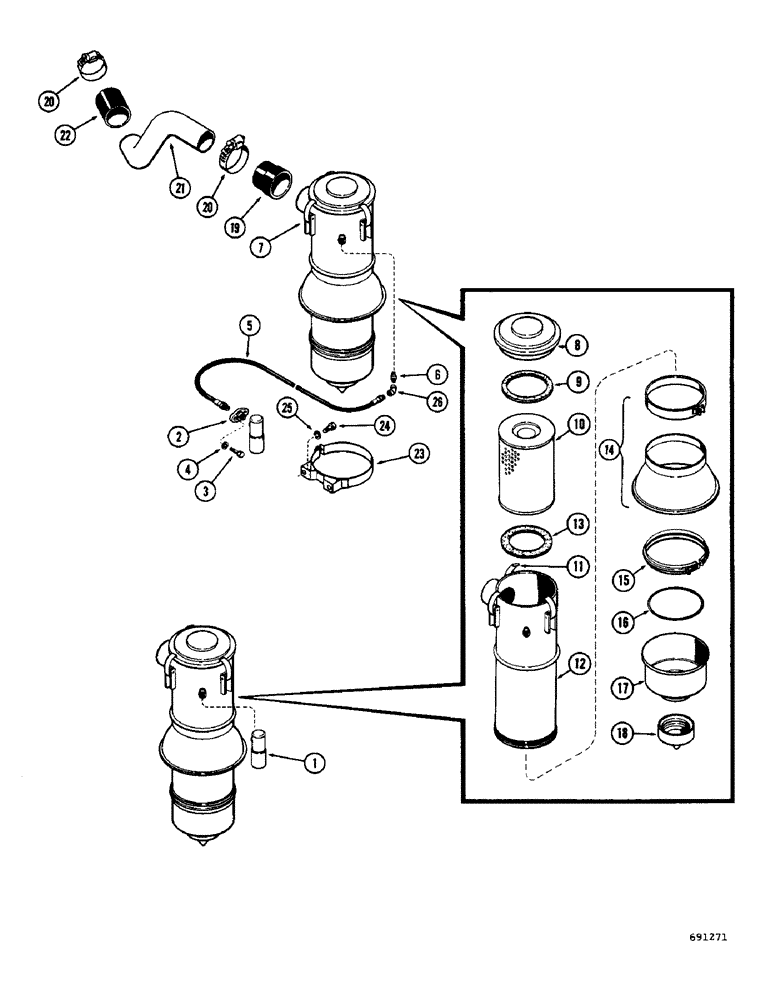

Запчасти Case W7 (102) - DRY TYPE AIR CLEANER (OPTIONAL), GASOLINE ENGINE (02) - ENGINE

1

A17652

ELECTRICAL GAUGE

GAUGE - restriction indicator

1шт.

2

L10235

FLANGE

- gauge mounting

1шт.

3

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

2шт.

4

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

5

L10232

HOSE - air, Serial Range: cleaner-gauge

1шт.

6

D36264

FITTING

- filter, special

1шт.

7

L10237

AIR CLEANER - complete, Includes: Ref. 8 - 19

1шт.

8

L30406

COVER - top, air cleaner

1шт.

9

L30407

GASKET - top cover

1шт.

10

L30408

ELEMENT - air cleaner

1шт.

11

NSS

NOT SOLD SEPARAT

CLIP - spring, top cover

3шт.

12

NSS

NOT SOLD SEPARAT

BODY - air cleaner (Order L10237)

1шт.

13

L30410

GASKET - lower, element

1шт.

14

L30411

SHIELD - air cleaner, includes bracket

1шт.

15

G45153

CLAMP

- cup

1шт.

16

L30413

SEAL - "O" ring, cup mounting

1шт.

17

L30412

CUP - dust

1шт.

18

L30414

VALVE

- vacuator, air cleaner

1шт.

19

L10239

ADAPTER - air cleaner tube

1шт.

20

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

- adapter and hose #36, 1.81/2.75 Type F Worm

4шт.

21

L10284

TUBE - air, Serial Range: cleaner-carburetor

1шт.

22

A20197

HOSE ASSY.

HOSE -, Serial Range: tube-carburetor

1шт.

23

A19589

BAND - air cleaner mounting

2шт.

24

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

4шт.

25

92-5

LOCK WASHER,5/16"

4шт.

26

221-1365

ELBOW,45 Degree, 1/8" NPT

- pipe, 45 degrees (1/8" NPT)

1шт.
