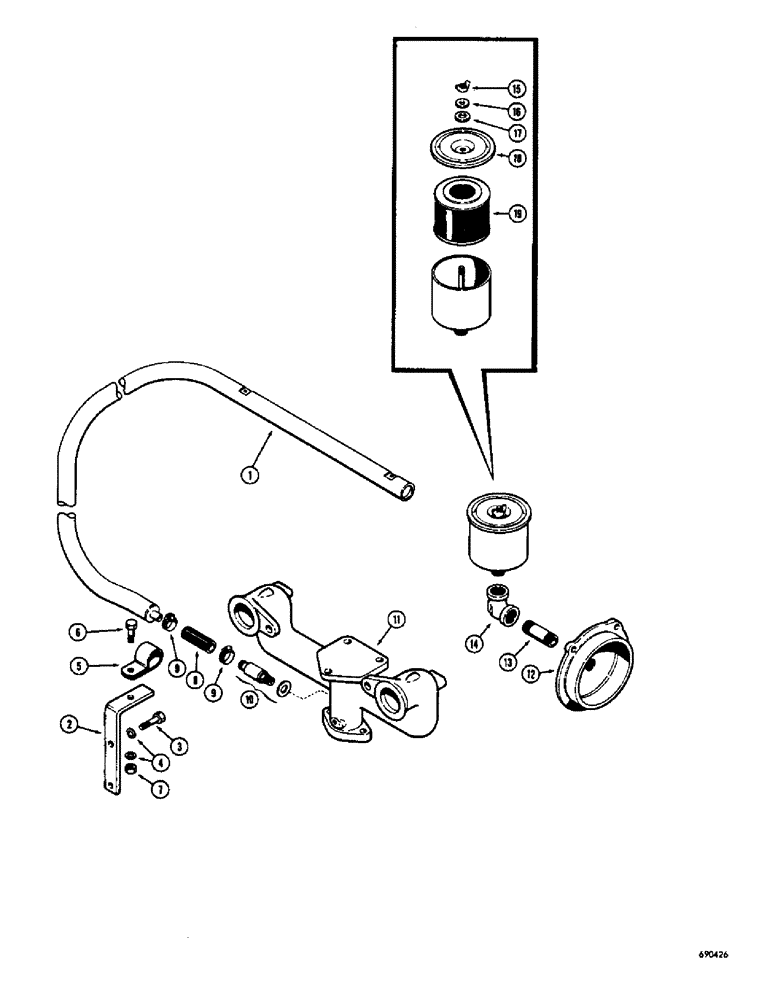

Запчасти Case W7 (100) - CRANKCASE VENT ATTACHMENT (02) - ENGINE

A34153

CRANKCASE VENT - engine (Machinery item), Includes: Ref. 1 - 19

1шт.

1

A34156

TUBE - breather

1шт.

2

A34152

BRACKET - support, breather tube

1шт.

3

13-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

2шт.

4

92-6

LOCK WASHER,3/8"

3шт.

5

A24324

CLIP - breather tube

1шт.

6

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

7

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

1шт.

8

A34148

HOSE -, Serial Range: breather-manifold

1шт.

9

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose

2шт.

10

A34147

VALVE - assembly

1шт.

11

43362

NUT,M8 x 1.25, Cl 10

MANIFOLD - intake

1шт.

12

A34144

COVER - magneto opening

1шт.

13

221-1190

PIPE,Nipple, 1/2" NPT x 2"

NIPPLE - magneto cover to elbow (1/2" NPT)

1шт.

14

221-1377

ELBOW,90 Degree, 1/2" NPT

- 90 degrees, nipple to filter (1/2" NPT)

1шт.

A34145

FILTER ASSEMBLY - crankcase air, Includes: Ref. 15 - 19

1шт.

15

129-404

WING NUT,1/4"-20

NUT - wing (1/4" - 20 NC)

1шт.

16

95-4

WASHER,1/4"

- plain () 1/4"

1шт.

17

A40768

GASKET - center bolt

1шт.

18

A40769

COVER - air filter

1шт.

19

A40767

SPARE PART

CARTRIDGE - filter

1шт.
