Запчасти Case W7 (096) - DRY TYPE AIR CLEANER, GASOLINE ENGINE, OIL BATH AIR CLEANER GASOLINE ENG. (02) - ENGINE

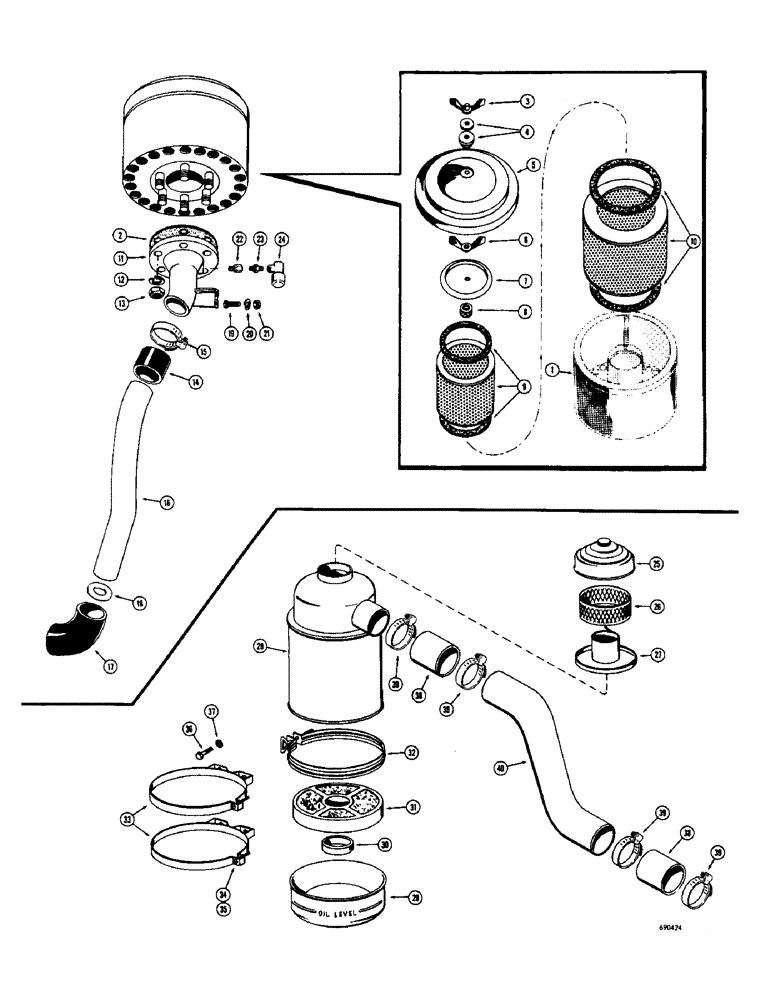

Схема запчастей Case W7 - (096) - DRY TYPE AIR CLEANER, GASOLINE ENGINE, OIL BATH AIR CLEANER GASOLINE ENG. (02) - ENGINE

Артикул

Название

Примечание

Количество

A17650

FILTER

AIR CLEANER - dry type, Includes: Ref. 1 - 10

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - air cleaner

1шт.

2

A17749

GASKET

- cleaner to mounting bracket

1шт.

3

A17745

NUT

NUT - wing, outer cover

1шт.

4

A17744

GROMMET

- cover

1шт.

5

A17743

X

COVER - outer, air cleaner

1шт.

6

A17746

NUT

- wing, inner cover

1шт.

7

A17747

PLATE ASSY.

COVER - inner, air cleaner

1шт.

8

A17748

GASKET

- cover

1шт.

9

A17742

AIR CLEANER

FILTER ELEMENT - inner

1шт.

10

A17741

AIR CLEANER

FILTER ELEMENT - outer

1шт.

11

A17651

BRACKET - mounting, air cleaner

1шт.

12

92-5

LOCK WASHER,5/16"

6шт.

13

25-115

NUT,5/16"-24, G5

- hex (5/16"-24 NF)

6шт.

14

G46338

INTAKE AIR HOSE,2.25" ID x 3.00", SAE 20R2

- Mounting bracket to intake tube 2.25" ID x 3.00", SAE 20R2

1шт.

15

214-262

HOSE CLAMP,#44, 2.31" - 3.25", Type F Worm

CLAMP - hose

4шт.

16

A17147

TUBE - air intake

1шт.

17

A17517

HOSE

- intake, Serial Range: tube-carburetor

1шт.

18

A19838

WASHER - special, carburetor restrictor

1шт.

19

11-620

CARRIAGE BOLT,Short NK, 3/8"-16 x 1 1/4", G2

BOLT - round head, square shoulder (3/8" - 16 NC x 1-1/4")

2шт.

20

92-6

LOCK WASHER,3/8"

2шт.

21

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

2шт.

22

217-1

ADAPTER

-, Serial Range: bracket-fitting

1шт.

23

D36264

FITTING

- filter, special

1шт.

24

A17652

ELECTRICAL GAUGE

GAUGE - restrictor, air cleaner

1шт.

A21430

CAP

ASSEMBLY - pre-screener, Includes: Ref. 25 - 27

1шт.

25

A8301

COVER - pre-screener, oil bath air cleaner gasoline engine

1шт.

26

A8300

FILTER

SCREEN - pre-screener, oil bath air cleaner gasoline engine

1шт.

27

A8302

SLEEVE - pre-screener, oil bath air cleaner gasoline engine

1шт.

A20000

AIR CLEANER - oil bath air cleaner gasoline engine, Includes: Ref. 28 - 32

1шт.

28

NSS

NOT SOLD SEPARAT

BODY - air cleaner, oil bath air cleaner gasoline engine

1шт.

29

A8296

CUP - oil, oil bath air cleaner gasoline engine

1шт.

30

A8298

CLAMP - screen retainer, oil bath air cleaner gasoline engine

1шт.

31

A8295

SCREEN - oil bath, air cleaner gasoline engine

1шт.

32

A8297

CLAMP

- retainer, oil cup and screen, oil bath air cleaner gasoline engine

1шт.

33

A16504

BAND - mounting, air cleaner, oil bath air cleaner gasoline engine

2шт.

34

75-424

SCREW

- machine, round head (1/4" - 20 NC x 1-1/2"), oil bath air cleaner gasoiline engine

2шт.

35

25-104

NUT,1/4"-20, G5

Oil bath air cleaner gasoline engine 1/4"-20, G5

2шт.

36

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Oil bath air cleaner gasoline engine Hex, 3/8"-16 x 1", G5, Full Thd

4шт.

37

92-6

LOCK WASHER,3/8"

oil bath air cleaner gasoline engine 3/8"

4шт.

38

G46338

INTAKE AIR HOSE,2.25" ID x 3.00", SAE 20R2

- Air cleaner to carburetor, Oil bath air cleaner gasoline engine 2.25" ID x 3.00", SAE 20R2

2шт.

39

214-262

HOSE CLAMP,#44, 2.31" - 3.25", Type F Worm

CLAMP - hose, oil bath air cleaner gasoline engine

4шт.

40

A16505

TUBE - air cleaner to carburetor, oil bath air cleaner gasoline engine

1шт.

Выбрано товаров: 43
