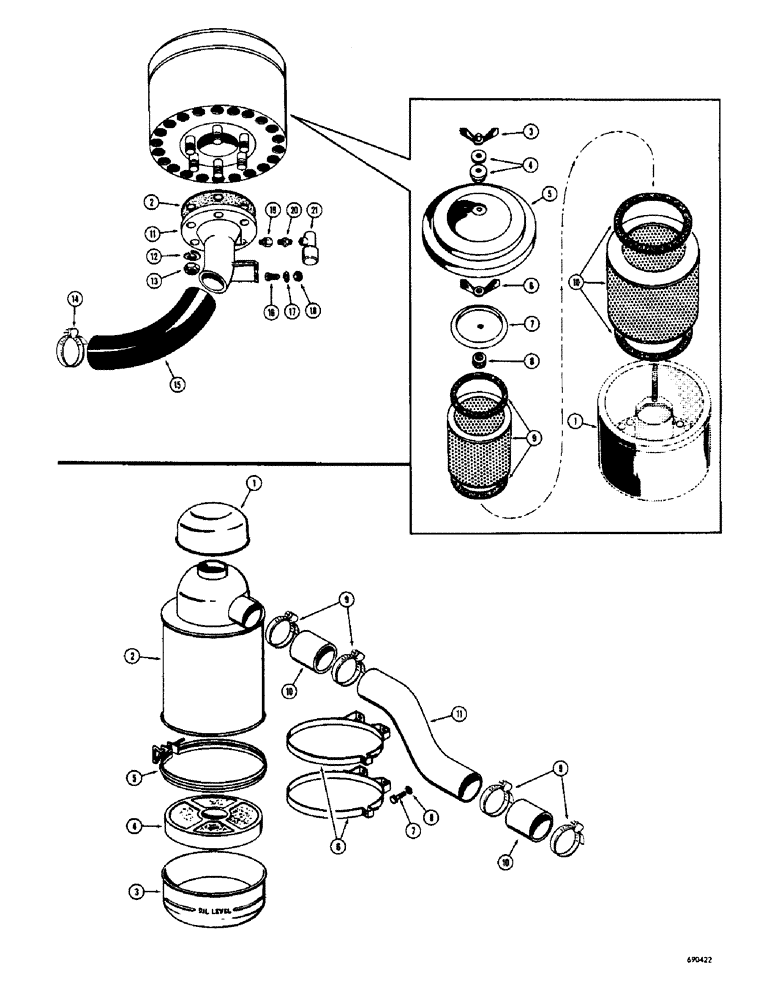

Запчасти Case W7 (094) - DRY TYPE AIR CLEANER, DIESEL ENGINE, OIL BATH AIR CLEANER DIESEL ENGINE (02) - ENGINE

A17650

FILTER

AIR CLEANER - dry type, Includes: Ref. 1 - 10

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - air cleaner

1шт.

2

A17749

GASKET

- cleaner to mounting bracket

1шт.

3

A17745

NUT

NUT - wing, outer cover

1шт.

4

A17744

GROMMET

- cover

1шт.

5

A17743

X

COVER - outer, air cleaner

1шт.

6

A17746

NUT

- wing, inner cover

1шт.

7

A17747

PLATE ASSY.

COVER - inner, air cleaner

1шт.

8

A17748

GASKET

- cover

1шт.

9

A17742

AIR CLEANER

FILTER ELEMENT - inner

1шт.

10

A17741

AIR CLEANER

FILTER ELEMENT - outer

1шт.

11

A17651

BRACKET - mounting, air cleaner

1шт.

12

92-5

LOCK WASHER,5/16"

6шт.

13

25-115

NUT,5/16"-24, G5

- hex (5/16"-24 NF)

6шт.

14

214-262

HOSE CLAMP,#44, 2.31" - 3.25", Type F Worm

CLAMP - hose

2шт.

15

A15172

HOSE ASSY.

HOSE - air, Serial Range: cleaner-manifold

1шт.

16

11-620

CARRIAGE BOLT,Short NK, 3/8"-16 x 1 1/4", G2

BOLT - round head, square shoulder (3/8" - 16 NC x 1-1/4")

2шт.

17

92-6

LOCK WASHER,3/8"

2шт.

18

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

2шт.

19

217-1

ADAPTER

-, Serial Range: bracket-fitting

1шт.

20

D36264

FITTING

- filter, special

1шт.

21

A17652

ELECTRICAL GAUGE

GAUGE - restrictor, air cleaner

1шт.

1

A21433

CAP

- air cleaner, oil bath diesel engine

1шт.

A21432

CLEANER

AIR CLEANER - oil bath, diesel engine, Includes: Ref. 2 - 5

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - air cleaneroil bath, diesel engine

1шт.

3

A22193

CUP - oil, bath air cleaner diesel engine

1шт.

4

A22194

ELEMENT

SCREEN - air cleaner, oil bath diesel engine

1шт.

5

A30865

CLAMP

- retaining, screen and cup, oil bath air cleaner diesel engine

1шт.

6

A16485

CLAMP

BAND - mounting, air cleaner, oil bath diesel engine

2шт.

7

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

Oil bath air cleaner diesel engine Hex, 5/16"-18 x 1", G5, Full Thd

4шт.

8

92-5

LOCK WASHER,5/16"

oil bath air cleaner diesel engine 5/16"

4шт.

9

214-262

HOSE CLAMP,#44, 2.31" - 3.25", Type F Worm

CLAMP - hose, oil bath air cleaner diesel engine

4шт.

10

A20197

HOSE ASSY.

HOSE - air cleaner to manifold, oil bath diesel engine

2шт.

11

A16499

TUBE

- air cleaner to manifold, oil bath diesel engine

1шт.
