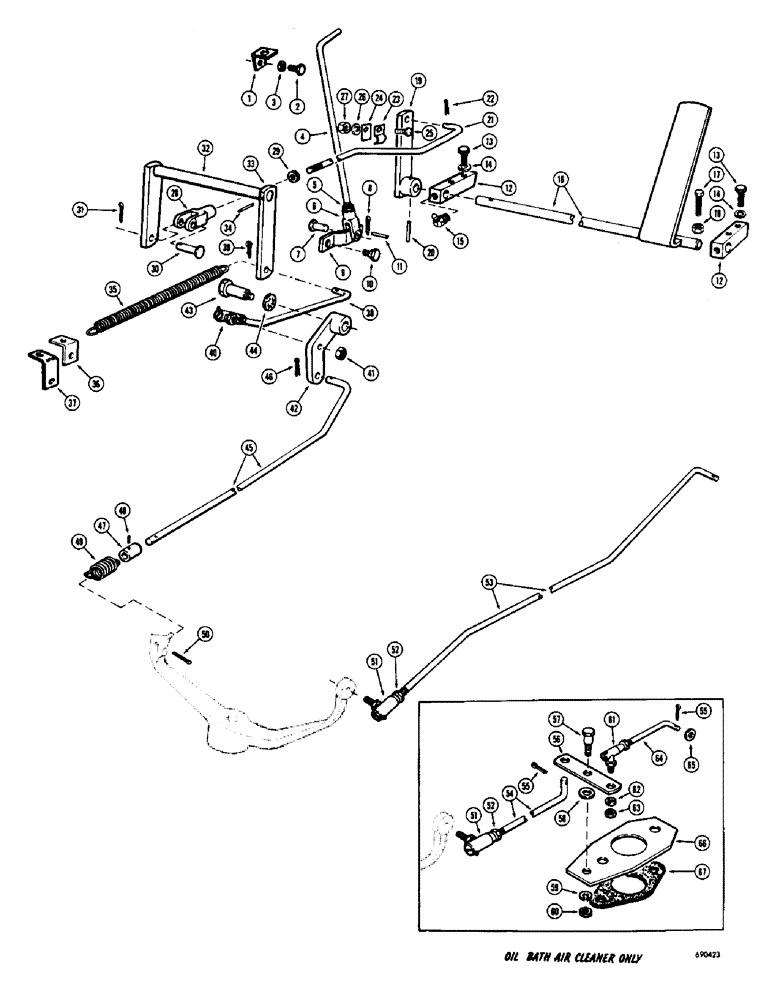

Запчасти Case W7 (090) - THROTTLE CONTROL LINKAGE, (GASOLINE) (02) - ENGINE

1

A13904

CLIP - rod, fuel shut-off

1шт.

2

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

1шт.

3

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

4

A17253

ROD

- fuel shut-off

1шт.

5

25-154

JAM NUT,Jam, 1/4"-28, G5

- hex, jam (1/4"-28 NF)

1шт.

6

213-2

ADJUSTABLE CLEVIS,1/4"-28 x 2"

YOKE - rod (1/4")

1шт.

7

141-2

CLEVIS PIN,1/4" x .770"

PIN - yoke

1шт.

8

132-5

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), 1/16" x 1/2"

1шт.

9

A12421

LEVER

- stop, foot throttle

1шт.

10

A8018

STEP BOLT

STUD - fuel shut-off lever

1шт.

11

138-130

LOCK PIN,1/4" x 3/4", Slotted

PIN, 1/4" x 3/4", Slotted

1шт.

12

A17249

SUPPORT

- throttle cross shaft

2шт.

13

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

14

92-5

LOCK WASHER,5/16"

4шт.

15

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

2шт.

16

A17246

THROTTLE AND SHAFT - foot control

1шт.

17

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

HHCS - 3/8" - 16 NC x 1-1/2"

1шт.

18

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

1шт.

19

A17250

SUPPORT

LEVER - foot throttle

1шт.

20

135-341

GROOVED PIN,3/16" x 1", Type F

Pin, Grooved, , Lever 3/16" x 1", Type F

1шт.

21

A17254

ROD - throttle control, front

1шт.

22

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

1шт.

23

A27128

CLIP - throttle rod

1шт.

24

A17255

SPACER - rod clip

1шт.

25

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

1шт.

26

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

27

25-104

NUT,1/4"-20, G5

1шт.

28

213-3

ADJUSTABLE CLEVIS,5/16"-24

YOKE - throttle rod

1шт.

29

25-155

JAM NUT,Jam, 5/16"-24, G5

- hex., jam (5/16" - 24 NF)

1шт.

30

141-3

CLEVIS PIN,5/16" x .940"

PIN, CLEVIS, , Yoke 5/16" x .940"

1шт.

31

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

1шт.

32

A17256

SHAFT

- pivot, throttle control

1шт.

33

A14898

LEVER - throttle shaft

1шт.

34

138-73

LOCK PIN,5/32" x 3/4", Slotted

PIN, 5/32" x 3/4", Slotted

1шт.

35

A22619

SPRING

- throttle return

1шт.

36

A17498

CLIP - retaining, spring

1шт.

37

A20656

BRACKET - spring clip, Serial Range: -2205979

1шт.

38

A17259

ROD - throttle control, rear

1шт.

39

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

1шт.

40

A10329

BALL JOINT,1/4" - 28 x 1"

- throttle rod

1шт.

41

25-114

NUT,1/4"-28, G5

- hex. (1/4" - 28 NF)

1шт.

42

A16507

LEVER - throttle control

1шт.

43

A15213

BOLT - retaining, throttle lever

1шт.

44

193-39

WASHER - lock, Shakeproof (3/8")

1шт.

45

A17507

ROD - throttle, rear

1шт.

46

132-5

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), 1/16" x 1/2"

1шт.

47

A20846

COLLAR

- throttle rod

1шт.

48

84-44

SET SCREW,Hex Soc, 1/4"-28 x 1/4"

SCREW - set, hex. socket head (1/4" - 20 NC x 1/4")

1шт.

49

A20868

SPRING

- governor

1шт.

50

132-46

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

51

A10326

BALL JOINT

- governor to carburetor rod

1шт.

52

129-27

NUT,Hex, #10 - 32

- hex. (#10 - 32 NF)

1шт.

53

A24307

ROD

- governor to carburetor (Used with dry type air cleaner only)

1шт.

54

A16509

ROD -, Serial Range: governor-carburetor

1шт.

55

132-5

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), 1/16" x 1/2"

2шт.

56

A16507

LEVER - throttle linkage

1шт.

57

A8018

STEP BOLT

STUD - throttle lever

1шт.

58

A26951

WASHER - throttle stud

1шт.

59

92-6

LOCK WASHER,3/8"

1шт.

60

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

1шт.

61

A10326

BALL JOINT

- carburetor rod

1шт.

62

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

63

129-27

NUT,Hex, #10 - 32

- hex. (#10 - 32 NF)

1шт.

64

A16506

CAP

ROD - carburetor

1шт.

65

195-12

WASHER,#10

- plain () #10

1шт.

66

A16508

PLATE - support, throttle lever

1шт.

67

A26434

GASKET

- carburetor

1шт.
