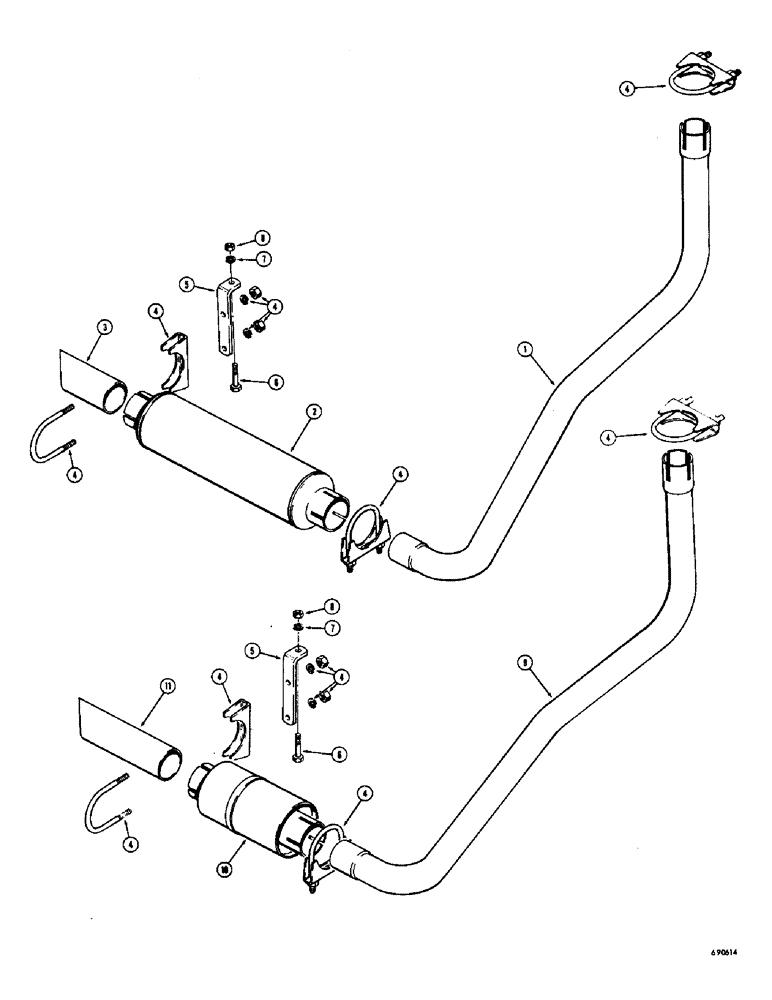

Запчасти Case W7 (086) - MUFFLER, (GASOLINE AND DIESEL ENGINES), SPARK ARRESTER (02) - ENGINE

1

A18723

PIPE - exhaust, manifold to muffler (Gas engine only)

1шт.

A18722

PIPE

- exhaust, muffler (Diesel engine only)

1шт.

2

A15163

MUFFLER

- exhaust

1шт.

3

A17311

PIPE CLAMP

PIPE - tail, muffler

1шт.

4

A13240

CLAMP,2-5/8" ID

- muffler and tail pipe

3шт.

5

A17309

BRACKET

- muffler support

1шт.

6

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

1шт.

7

92-6

LOCK WASHER,3/8"

1шт.

8

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

1шт.

9

A17310

PIPE - exhaust, manifold to muffler (Used with spark arrester only), spark arrester

1шт.

10

L10226

MUFFLER - spark arrester

1шт.

11

L10227

PIPE - tail, spark arrester muffler

1шт.
