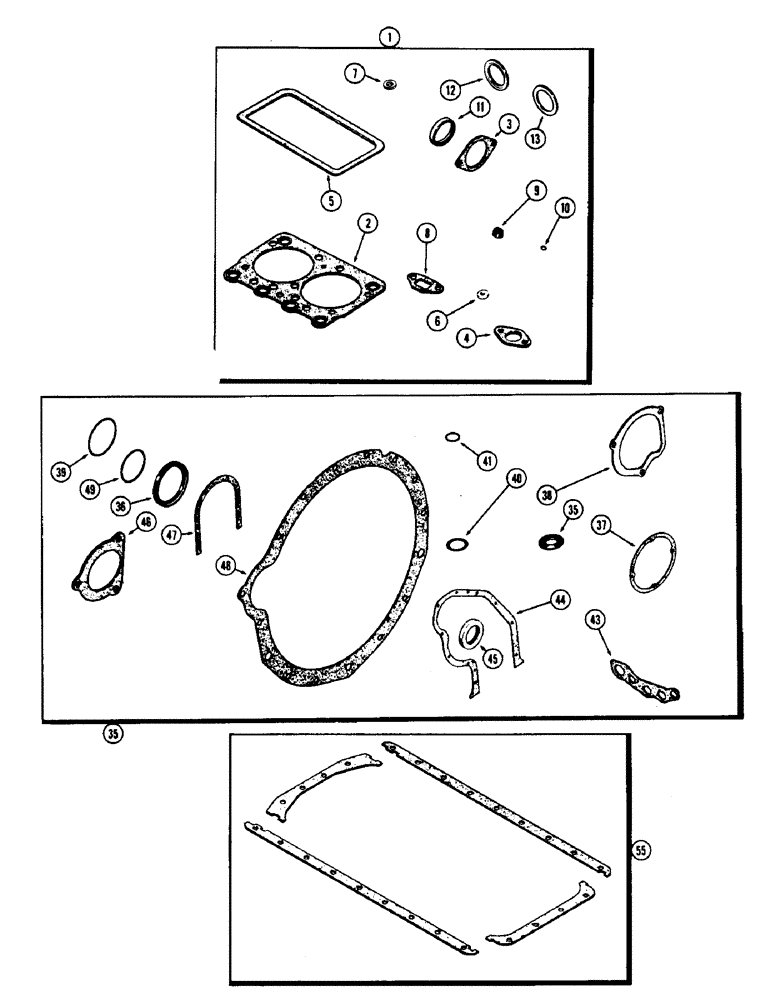

Запчасти Case W7 (064) - ENGINE GASKET KITS, (284) SPARK IGNITION ENGINE (02) - ENGINE

1

A41579

KIT

GASKET KIT - valve grind (Replaces A40345), Includes: Ref. 2 - 13

1шт.

For complete engine overhaul, order (1) A41579, (1) A40349 & (1) A7616.

1шт.

2

A57593

GASKET

- cylinder head

2шт.

3

A28113

GASKET

- thermostat housing

1шт.

4

A26434

GASKET

-, Serial Range: carburetor-manifold

1шт.

5

A57595

CYLINDER HEAD GASKET

- cylinder head cover

2шт.

6

A23684

GASKET

GASKET - cylinder head cover stud

4шт.

7

A23685

GASKET

- breather tube

2шт.

8

A27905

GASKET

- water manifold

4шт.

9

A10726

SEAL

SHIELD - oil, intake valve stem (rubber)

4шт.

10

A27880

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

"O" RING - rocker shaft oil tube

2шт.

11

A30954

GASKET

SEAL - thermostat

1шт.

12

A29943

GASKET

- intake manifold

2шт.

13

A11889

GASKET

- exhaust manifold

4шт.

35

A40349

KIT

GASKET KIT - cylinder block, Includes: Ref. 36 - 49

1шт.

For complete engine overhaul, order (1) A41579, (1) A40349 & (1) A7616.

1шт.

36

A23085

OIL SEAL

- oil, rear crankshaft, not part of A40349 kit

1шт.

37

A27867

GASKET

- cap, timing cover

1шт.

38

A57596

GASKET

- water pump

1шт.

39

A23316

O-RING,0.139" Thk x 4.484" ID, -246, Cl 5, 75 Duro

"O" RING - cover, magneto opening (Not applicable)

1шт.

40

A27355

O-RING,0.139" Thk x 1.17" ID, -217, Cl 5, 75 Duro

"O" RING - oil pump (Not applicable)

2шт.

41

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

"O" RING - distributor mounting

1шт.

42

A7292

SEAL

- bearing, governor shaft

1шт.

43

A21084

GASKET

- base, oil filter

1шт.

44

A33018

GASKET

- cover, timing gear

1шт.

45

A57342

SEAL

- oil, front crankshaft, not part of A40349 kit

1шт.

46

A27933

GASKET

- starter motor mounting

1шт.

47

A32830

GASKET

- rear crank seal retainer

1шт.

48

A11649

GASKET

- converter housing (Not applicable)

1шт.

49

A27996

O-RING,0.139" Thk x 2.734" ID, -232, Cl 5, 75 Duro

"O" RING - flywheel to crankshaft (Not applicable)

1шт.

55

A7616

GASKET KIT

- oil pan

1шт.

For complete engine overhaul, order (1) A41579, (1) A40349 & (1) A7616.

1шт.

A34686

RING

GASKET - fire ring cylinder

1шт.
