Запчасти Case W7 (060) - OIL FILTER, (284) SPARK IGNITION ENGINE, OIL PAN (02) - ENGINE

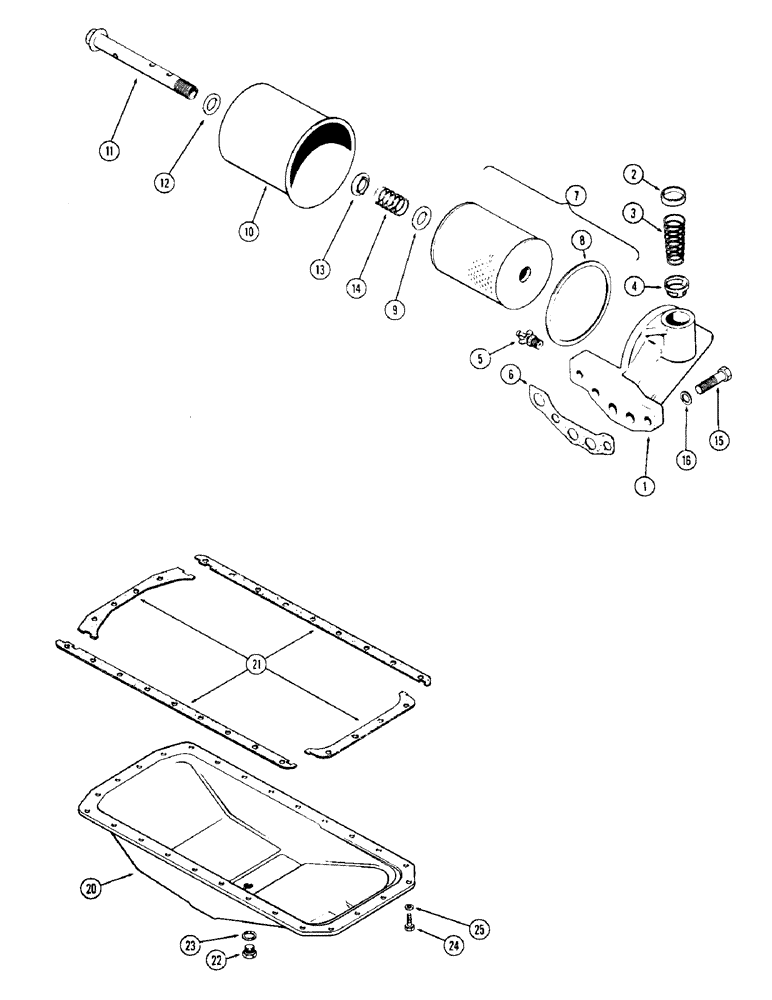

Схема запчастей Case W7 - (060) - OIL FILTER, (284) SPARK IGNITION ENGINE, OIL PAN (02) - ENGINE

Артикул

Название

Примечание

Количество

1

A23467

BASE ASSY. - lube oil filter, Includes: Ref. 2 - 5

1шт.

2

41-1620

PLUG,Cup, 1 1/4", Stainless

- relief valve spring

1шт.

3

A21091

VALVE SPRING

SPRING - relief valve

1шт.

4

A21090

VALVE

- relief

1шт.

5

A23656

COCK, DRAIN

VALVE - drain

1шт.

6

A21084

GASKET

- filter base

1шт.

7

A21475

ENGINE OIL FILTER

ELEMENT KIT - filter, Includes: Ref. 8 and 9

1шт.

8

A21473

GASKET

-, Serial Range: filter-base

1шт.

9

A21474

GASKET

- bolt, inner

1шт.

10

A21471

SHELL

COVER - filter element

1шт.

11

A21476

BOLT

- stand pipe

1шт.

12

A21479

GASKET

- bolt, outer

1шт.

13

A21477

RETAINER

- spring

1шт.

14

A21478

SPRING

- tension

1шт.

15

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

1шт.

15

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- 1/2 x 1-3/4" N.C. hex.

1шт.

16

92-8

LOCK WASHER,1/2"

2шт.

20

NLS

NO LONGER SERVICED

PAN - oil

1шт.

21

A7616

GASKET KIT

- oil pan

1шт.

22

A14280

PLUG

- oil pan drain

1шт.

23

A58608

GASKET

- drain plug (Replaces A27927), oil pan

1шт.

24

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

Oil pan Hex, 3/8"-16 x 7/8", G5, Full Thd

26шт.

25

92-6

LOCK WASHER,3/8"

oil pan 3/8"

26шт.

Выбрано товаров: 23
