Запчасти Case W7 (054) - CRANKSHAFT - FLYWHEEL & HOUSING, (284) SPARK IGNITION ENGINE (02) - ENGINE

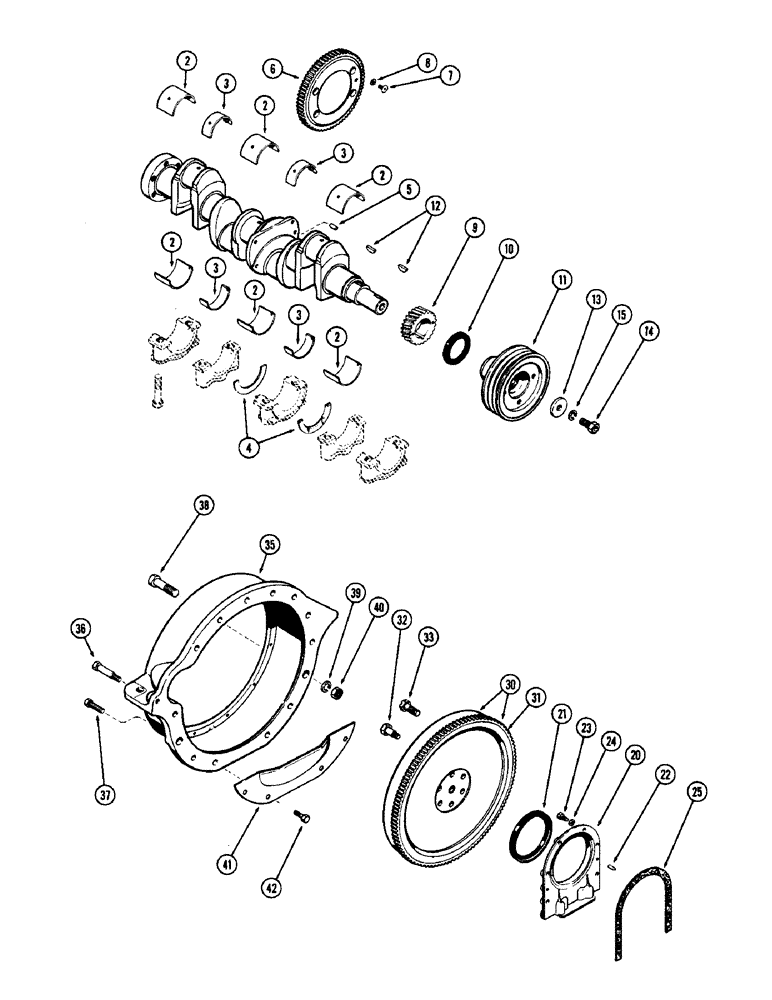

Схема запчастей Case W7 - (054) - CRANKSHAFT - FLYWHEEL & HOUSING, (284) SPARK IGNITION ENGINE (02) - ENGINE

Артикул

Название

Примечание

Количество

1

A42802

KIT

CRANKSHAFT - engine, Replaces A22578

1шт.

2

A28687

LINING

INSERT KIT - main brg. (Set of 2) (Wide) (Std.)

3шт.

2

A7182

KIT

INSERT KIT - main brg. (Set of 2) (Wide) (-.002")

3шт.

2

A7188

BEARING LINER

INSERT KIT - main brg. (Set of 2) (Wide) (-.010")

3шт.

2

A7194

KIT

INSERT KIT - main brg. (Set of 2) (Wide) (-.020")

3шт.

2

A7200

KIT

INSERT KIT - main brg. (Set of 2) (Wide) (-.030")

3шт.

3

A20394

LINING

INSERT KIT - main brg. (Set of 2) (Narrow) (Std.)

2шт.

3

A20579

LINING

INSERT KIT - main brg. (Set of 2) (Narrow) (-.002")

2шт.

3

A20582

LINING

INSERT KIT - main brg. (Set of 2) (Narrow) (-.010")

2шт.

3

A20585

KIT

INSERT KIT - main brg. (Set of 2) (Narrow) (-.020")

2шт.

3

A20588

KIT

INSERT KIT - main brg. (Set of 2) (Narrow) (-.030")

2шт.

4

A27835

WASHER

- thrust, crankshaft (Std.)

2шт.

4

A7204

WASHER

- thrust, crankshaft (.006" oversize)

2шт.

5

A8134

PIN

- dowel, balancer drive gear

1шт.

6

A22576

GEAR

- balancer drive

1шт.

7

A23583

HEX SOC SCREW,Flat Hd, 3/8" - 24 x 3/4"

SCREW - balancer drive gear

4шт.

8

193-56

LOCK WASHER,Ext Csk Tooth, 3/8"

WASHER, LOCK, Ext Csk Tooth, 3/8"

4шт.

9

A27837

GEAR

- crankshaft front

1шт.

10

A57342

SEAL

- oil, crankshaft front, 2-5/8 x 3-5/8 x 1/2"

1шт.

11

A23644

PULLEY

- fan

1шт.

12

126-129

WOODRUFF KEY,#C, 5/16" x 1 1/8", HT

Pulley & crankshaft gear #C, 5/16" x 1 1/8", HT

2шт.

13

A27903

WASHER

- fan drive pulley

1шт.

14

88112

BOLT,Hex, 5/8" - 18 x 1 1/2", Gr 5

- drive pulley ret., 5/8 x 1-1/2" N.C. hex.

1шт.

15

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

20

A57457

RETAINER

- crankshaft rear oil seal, Includes: Ref. 21

1шт.

21

A23085

OIL SEAL

- oil, 4-3/4 x 5-3/4 x 1/2"

1шт.

22

A27840

PIN

- dowel, retainer

2шт.

23

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

6шт.

24

92-6

LOCK WASHER,3/8"

6шт.

25

A32830

GASKET

- retainer

1шт.

30

A17501

FLYWHEEL ASSY. - engine, flywheel and housing, Includes: Ref. 31

1шт.

31

A20875

GEAR, RING

GEAR - ring, flywheel and housing

1шт.

32

A11549

STEP BOLT

BOLT - dowel, flywheel and housing

2шт.

33

A11550

BOLT (SPREADER)

BOLT - flywheel and housing

4шт.

35

A58684

HOUSING - flywheel and housing

1шт.

36

A32607

STEP BOLT

- dowel, short, flywheel and housing

1шт.

36

A32608

STEP BOLT

BOLT - dowel, long, flywheel and housing

1шт.

37

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

Flywheel and housing Hex, 1/2"-13 x 1 1/4", G5, Full Thd

3шт.

37

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- 1/2 x 1-3/4" N.F. hex., flywheel and housing

3шт.

38

A20108

BOLT - housing to block, flywheel and housing

2шт.

39

92-12

LOCK WASHER,3/4"

WASHER, LOCK, , Flywheel and housing 3/4"

2шт.

40

25-1112

NUT,3/4"-16, G5

- 3/4" N.F. hex., flywheel and housing

2шт.

41

A58931

GUARD

SHIELD - dust, flywheel housing (Replaces A14508), flywheel and housing

1шт.

42

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

Flywheel and housing Hex, 1/2"-13 x 1", G5, Full Thd

2шт.

42

14-820

BOLT,Hex, 1/2" - 20 x 1-1/4", Gr 5

- 1/2 x 1-1/4" N.F. hex., flywheel and housing

2шт.

Выбрано товаров: 45
