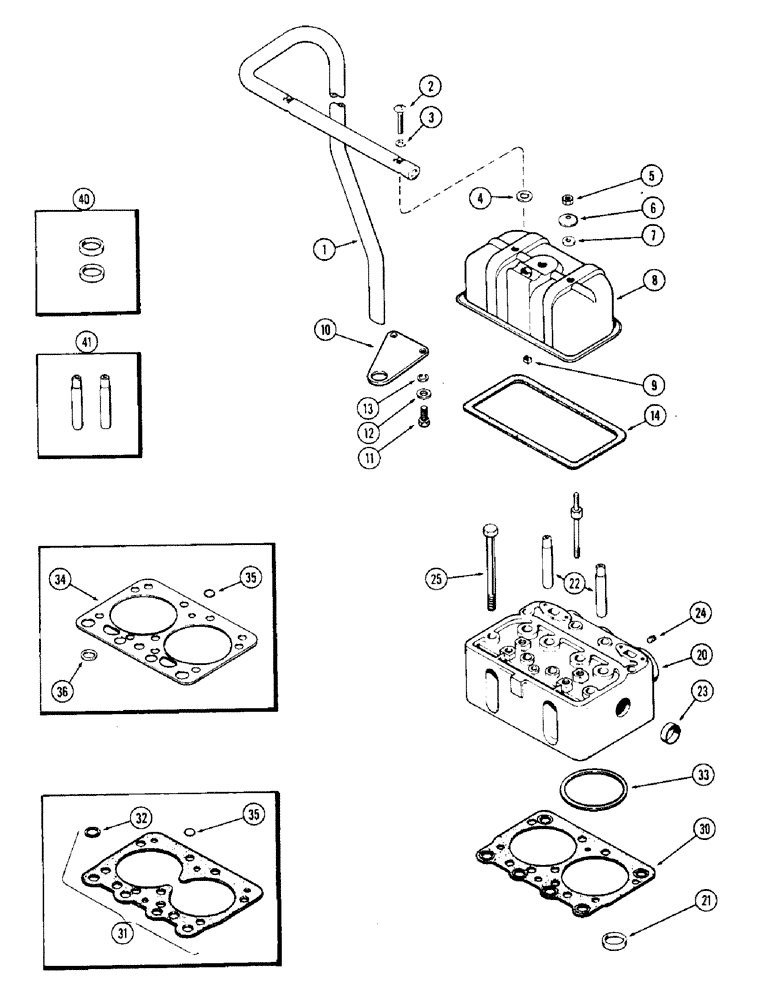

Запчасти Case W7 (046) - CYLINDER HEAD AND COVER, (284) SPARK IGNITION ENGINE (02) - ENGINE

1

A17486

TUBE - breather-oil

1шт.

2

75-432

SCREW

- 1/4 x 2" N.C. rd. hd. mach.

2шт.

3

A34133

GASKET

- breather tube screw

2шт.

4

A23685

GASKET

- breather tube seat

2шт.

5

25-117

NUT,7/16"-20, G5

- 7/16" N.F. hex.

4шт.

6

A23683

WASHER

- bevel, valve head cover stud

4шт.

7

A23684

GASKET

GASKET - valve head cover stud

4шт.

8

A23681

COVER ASSY

. - cylinder head, Includes: Ref. 9

2шт.

9

131-2

NUT,1/4"-20, GB

NUT - 1/4" N.C. Tinnerman

2шт.

10

A23686

BRACKET

- breather tube

1шт.

11

A9936

BOLT - mounting, bracket (Special)

2шт.

12

195-25

WASHER,3/8"

- 13/32 x 13/16 x 1/16"

4шт.

13

92-6

LOCK WASHER,3/8"

2шт.

14

A57595

CYLINDER HEAD GASKET

- cylinder head cover

2шт.

20

A20809

CYLINDER HEAD

HEAD ASSY. - cylinder, Includes: Ref. 21 - 24

2шт.

21

NSS

NOT SOLD SEPARAT

INSERT - exhaust valve (Order ref. 40)

2шт.

22

NSS

NOT SOLD SEPARAT

GUIDE - intake & exhaust (Order ref. 41)

2шт.

23

A34124

PLUG,Cup, 1 5/8", Stainless

- 1-21/32" cup type

2шт.

24

217-433

PLUG,Hex Soc, 1/4" - 18 NPTF

4шт.

25

A23355

BOLT

- cylinder head, 9/16 x 6" N.C. hex.

18шт.

30

A57593

GASKET

- cylinder head, Start Serial: 2197563

1шт.

31

A41385

X

GASKET KIT - cylinder head (Order A57593 & A34686), Includes: Ref. 32, Serial Range: 2145201-2197563

1шт.

32

NSS

NOT SOLD SEPARAT

RING - cylinder head gasket

8шт.

33

A34686

RING

- fire, cylinder head gasket (Std.)

4шт.

33

A34688

RING

- fire-cylinder head gasket (Oversize, blue)

4шт.

34

A23117

GASKET

- cylinder head (Order A57593 & A34686), Serial Range: -2145201

1шт.

35

A27410

O-RING,0.487" ID x 0.693" OD x 0.103"

"O" RING - oil passage, 1/2 x 11/16 x 3/32" (Used w/A23117 & A41385)

2шт.

36

A7669

RING

- water passage, 7/8 x 1-3/32 x 5/64" (Used w/A23117 only)

4шт.

40

A33454

INSERT

KIT - exhaust valve (Set of 2)

2шт.

41

A21673

GUIDE

KIT - intake & exhaust valve (Set of 2)

4шт.
