Запчасти Case W7 (042) - MANIFOLD AND MUFFLER, (284) SPARK IGNITION ENGINE (02) - ENGINE

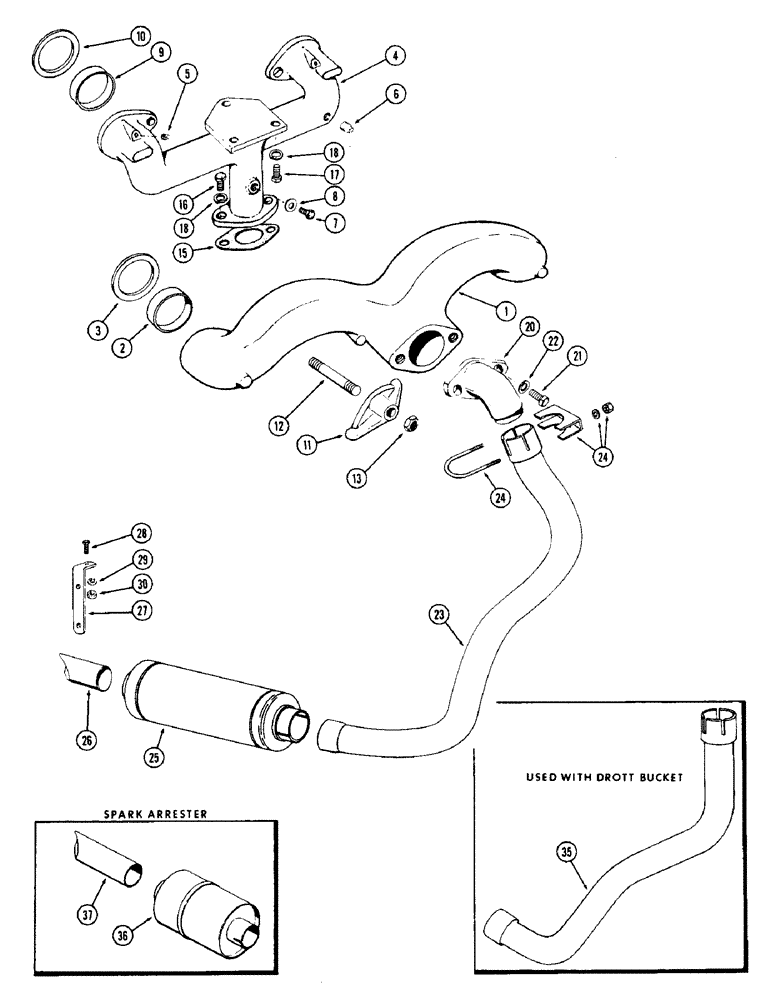

Схема запчастей Case W7 - (042) - MANIFOLD AND MUFFLER, (284) SPARK IGNITION ENGINE (02) - ENGINE

Артикул

Название

Примечание

Количество

1

A20811

MANIFOLD - exhaust

1шт.

2

A11837

FERRULE

- exhaust manifold

4шт.

3

A11889

GASKET

- exhaust manifold

4шт.

4

A18508

MANIFOLD

- intake

1шт.

5

221-11

PLUG,Sq Hd, 1/8"-27

- 1/8" P.T. sq. head

2шт.

6

211-13

BALL,1/2" Dia

PLUG - 3/8" P.T. sq. hd.

1шт.

7

13-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

1шт.

8

A20778

GASKET - intake manifold

1шт.

9

A20814

BUSHING,39.69mm ID x 42.93mm OD x 12.7mm L

FERRULE - intake manifold

2шт.

10

A29943

GASKET

- intake manifold

2шт.

11

A24368

CLAMP

- intake & exhaust manifold

4шт.

12

A27911

STUD

- intake & exhaust manifold clamp

4шт.

13

25-117

NUT,7/16"-20, G5

- 7/16" N.F. hex.

4шт.

15

A26434

GASKET

-, Serial Range: carburetor-manifold

1шт.

16

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

2шт.

17

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

3шт.

18

92-6

LOCK WASHER,3/8"

5шт.

20

A17488

ELBOW

- exhaust manifold outlet

1шт.

21

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

22

92-8

LOCK WASHER,1/2"

2шт.

23

A17310

PIPE - exhaust

1шт.

24

A13240

CLAMP,2-5/8" ID

- exhaust pipe

3шт.

25

A15163

MUFFLER

1шт.

26

A17311

PIPE CLAMP

PIPE - muffler, tail (6-1/4" long)

1шт.

27

A17309

BRACKET

SUPPORT - muffler

1шт.

28

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

1шт.

29

92-6

LOCK WASHER,3/8"

1шт.

30

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

1шт.

35

A18723

PIPE - exhaust (Used w/Drott bucket)

1шт.

36

L10226

MUFFLER - exhaust spark arrester

1шт.

37

L10227

PIPE - tail, spark arrester (9" long)

1шт.

Выбрано товаров: 31
