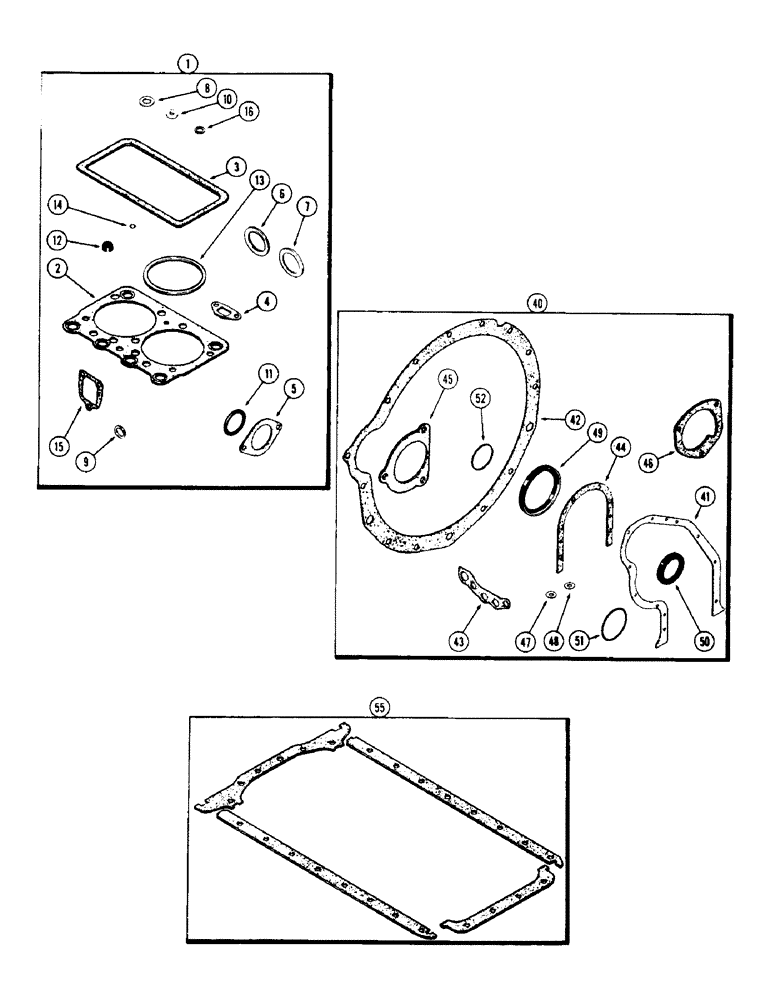

Запчасти Case W7 (032) - ENGINE GASKET KITS, (301) DIESEL ENGINE (02) - ENGINE

1

A41576

GASKET

KIT - valve grind, (Replaces A40338), Includes: Ref. 2 - 15

1шт.

For complete engine overhaul order 1-A41576, 1-A40348 & 1-A7616.

1шт.

2

A57593

GASKET

- cylinder head

2шт.

3

A57595

CYLINDER HEAD GASKET

- cylinder head cover

2шт.

4

A27905

GASKET

- water manifold

4шт.

5

A28113

GASKET

- thermostat housing

1шт.

6

A21054

MANIFOLD GASKET

- intake manifold

4шт.

7

A11888

MANIFOLD GASKET

- exhaust manifold

2шт.

8

A23685

GASKET

- breather, Serial Range: tube-cover

2шт.

9

A27928

WASHER,14.22mm ID x 19.18mm OD x 2.06mm Thk

GASKET - fuel injection nozzle

4шт.

10

A23684

GASKET

GASKET - cylinder head cover studs

4шт.

11

A30954

GASKET

SEAL - thermostat

1шт.

12

A10726

SEAL

SHIELD - oil, intake valve stem

4шт.

13

A34686

RING

- fire

4шт.

14

A27880

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

"O" RING - rocker shaft oil tube

2шт.

15

A22939

GASKET

- decompressor lever housing

2шт.

40

A40348

KIT

GASKET KIT - cylinder block, Includes: Ref. 41 - 52

1шт.

For complete engine overhaul order 1-A41576, 1-A40348 & 1-A7616.

1шт.

41

A33018

GASKET

- timing gear cover

1шт.

42

A11649

GASKET

- converter housing (Not applicable)

1шт.

43

A21084

GASKET

- oil filter base

1шт.

44

A32830

GASKET

- rear oil seal retainer

1шт.

45

A27933

GASKET

- starting motor

1шт.

46

A57596

GASKET

- water pump

1шт.

47

A22670

SHIM,.005" Thk

Balancer .005" Thk

4шт.

48

A22671

SHIM,.010" Thk

Balancer .010" Thk

4шт.

49

A23085

OIL SEAL

- oil, rear crankshaft

1шт.

50

A57342

SEAL

- oil, crankshaft front

1шт.

51

A23316

O-RING,0.139" Thk x 4.484" ID, -246, Cl 5, 75 Duro

"O" RING - fuel pump housing

1шт.

52

A27996

O-RING,0.139" Thk x 2.734" ID, -232, Cl 5, 75 Duro

"O" RING - flywheel to crankshaft (Not applicable)

1шт.

55

A7616

GASKET KIT

- oil pan

1шт.

For complete engine overhaul order 1-A41576, 1-A40348 & 1-A7616.

1шт.
