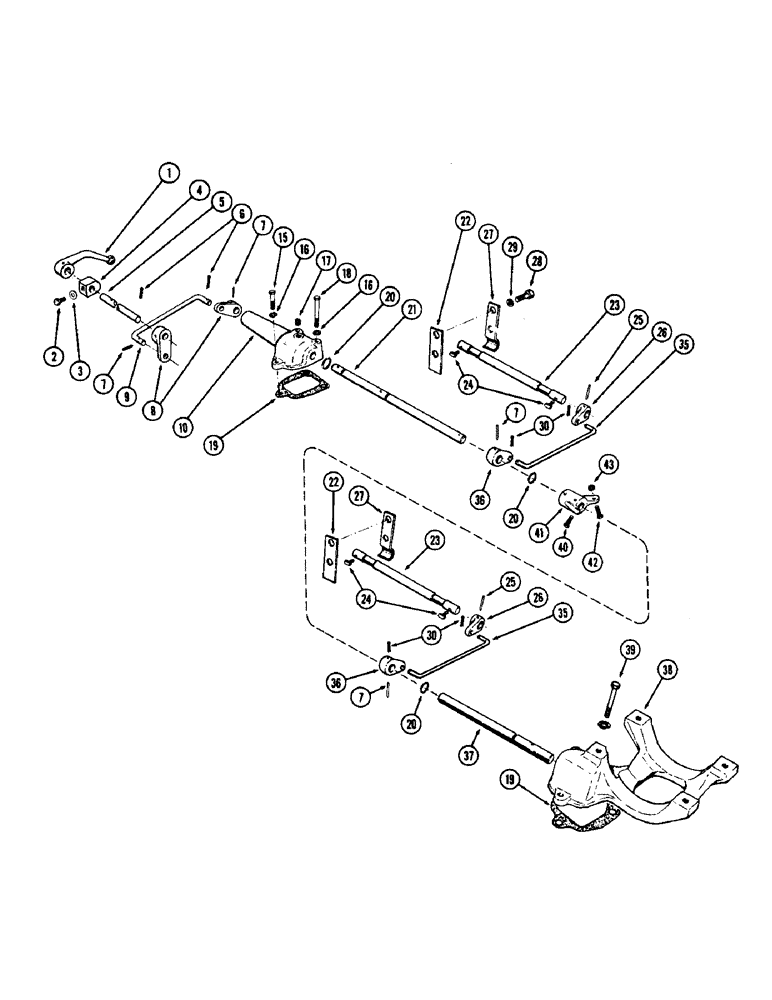

Запчасти Case W7 (028) - DECOMPRESSOR, (301) DIESEL ENGINE (02) - ENGINE

1

A26310

LEVER - control

1шт.

2

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

3

92-5

LOCK WASHER,5/16"

1шт.

4

A17482

INTERIOR LIGHT

BEARING - lever shaft

1шт.

5

A17481

SHAFT - lever

1шт.

6

132-45

COTTER PIN,1/8" x 5/8"

Pin, Split (Cotter), 1/8" x 5/8"

2шт.

7

138-96

LOCK PIN,3/16" x 1", Slotted

PIN, 3/16" x 1", Slotted

4шт.

8

A7541

LEVER - control shaft

2шт.

9

A17483

LINK - control shaft levers

1шт.

10

A26330

HOUSING - control

1шт.

15

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

16

92-5

LOCK WASHER,5/16"

6шт.

17

221-41

PLUG

- 1/8" P.T. sltd. hd.

1шт.

18

13-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

- 5/16 x 1-3/4" N.C. hex.

2шт.

19

A22939

GASKET

- housing

2шт.

20

A27891

O-RING,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro

"O" RING - control shaft

3шт.

21

A17500

SHAFT - control, intermediate

1шт.

22

A27887

BRACKET - shaft bottom

4шт.

23

A23096

SHAFT ASSY. - control, Includes: Ref. 24 - 26

2шт.

24

A23095

AXLE PIN

PIN - trip

2шт.

25

138-96

LOCK PIN,3/16" x 1", Slotted

PIN, 3/16" x 1", Slotted

1шт.

26

A26326

LEVER - control shaft

1шт.

27

A27886

BRACKET

- shaft trip

4шт.

28

15-764

BOLT (SPREADER)

BOLT - 7/16 x 4" N.C. hex.

4шт.

29

92-7

LOCK WASHER,7/16"

4шт.

30

132-6

COTTER PIN,1/16" x 5/8"

Pin, Split (Cotter) 1/16" x 5/8"

4шт.

35

A27894

LINK - control

2шт.

36

A26326

LEVER - control

2шт.

37

A27889

SHAFT - intermediate control

1шт.

38

A22183

HOUSING - control

1шт.

39

13-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

- 5/16 x 1-1/2" N.C. hex

2шт.

40

A27892

SET SCREW,1/4" - 20 x 7/8"

- set, control shaft

2шт.

41

A26331

COUPLING - control shaft stop

1шт.

42

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

SCREW - set, 1/4 x 1" N.C. sq. hd. oval pt.

2шт.

43

25-104

NUT,1/4"-20, G5

2шт.
