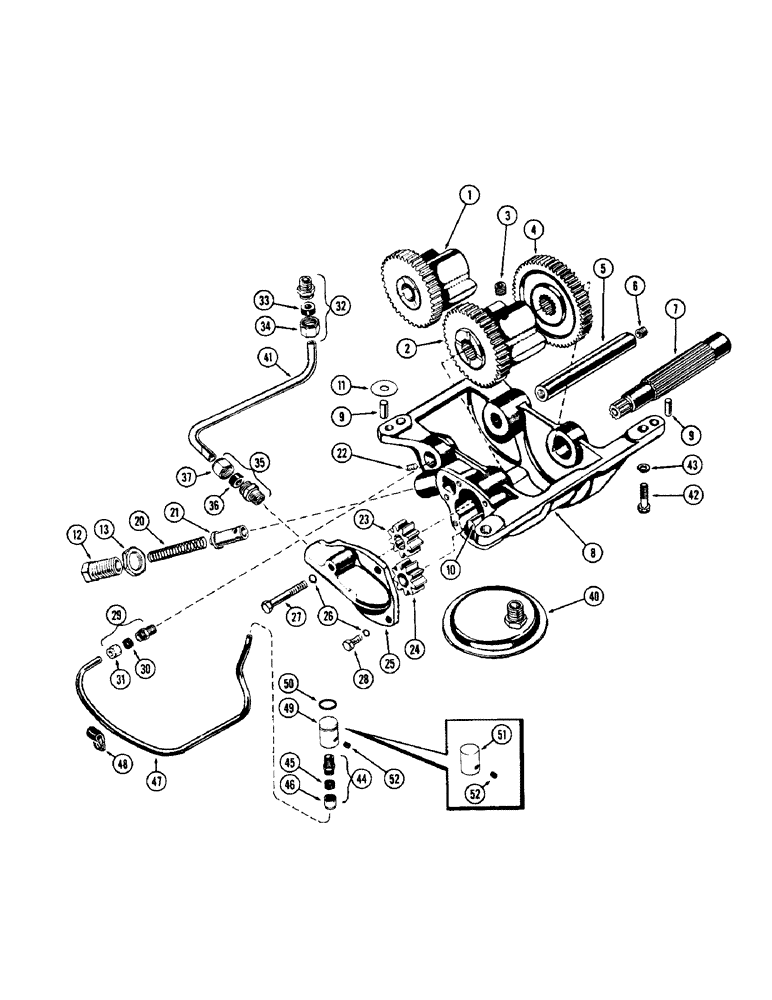

Запчасти Case W7 (024) - BALANCER AND OIL PUMP, (301) DIESEL ENGINE (02) - ENGINE

A57960

X

BALANCER ASSY. - w/oil pump, Includes: Ref. 1 - 34

1шт.

P/N A57960 and A22540 replaced by A62450, A62451 and A43000.

1шт.

A22540

BALANCER

ASSY. - w/oil pump (Order A57960), Includes: Ref. 1 - 34

1шт.

P/N A57960 and A22540 replaced by A62450, A62451 and A43000.

1шт.

1

A22546

FILTER ASSY

COUNTERWEIGHT ASSY. - driven

1шт.

2

A22561

COUNTERWEIGHT - drive (Splined)

1шт.

3

83-66

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW - set, 3/8 x 3/8" N.C. sckt. hd. cup pt.

1шт.

4

A57958

GEAR

- drive, counterweight (w/partial internal spline) (Used w/A57960 balancer assy.)

1шт.

4

A22562

X

GEAR - drive, counterweight (w/full internal spline) (Used w/A22540 balancer assy.)

1шт.

5

A22563

SHAFT

- stationary (Used w/A57960 balancer assy.) (Used w/A22540 balancer assy.) (Order 1-A57958 gear & 1-A57957 shaft)

1шт.

8

A22541

HOUSING ASSY. - balancer

1шт.

7

A22558

SHAFT

ASSY. - drive, counterweight (w/sleeve)

1шт.

7

A57957

SHAFT

- drive, counterweight (w/out sleeve)

1шт.

6

217-433

PLUG,Hex Soc, 1/4" - 18 NPTF

Incl Ref. 9 and 10 Hex Soc, 1/4"-18 NPTF

1шт.

9

A8134

PIN

- dowel, housing, 3/8 x 3/4"

2шт.

10

A22543

SHAFT

- stub, oil pump gear

1шт.

11

A22670

SHIM,.005" Thk

Hsg. to cyl. block .005" Thk

1шт.

11

A22671

SHIM,.010" Thk

Hsg. to cyl. block .010" Thk

1шт.

12

A8902

ADJUSTMENT SCREW,7/8" x 1 5/8"

SCREW - adjusting, oil pump relief

1шт.

13

A27858

NUT

- adjusting screw

1шт.

20

A23598

VALVE SPRING

SPRING - relief, oil pump

1шт.

21

A22566

PLUNGER

- relief, oil pump

1шт.

22

178-40

SET SCREW,Hex Soc, 5/16"-18 x 3/8"

SCREW - set, 5/16 x 3/8" hex. sckt. hd., cone pt.

1шт.

23

A22564

GEAR

- drive, oil pump (Splined)

1шт.

24

A22555

GEAR

ASSY. - oil pump, w/bushing

1шт.

25

A22565

COVER ASSY

COVER - outlet, oil pump

1шт.

26

193-29

LOCK WASHER,Int Tooth, 5/16"

WASHER, LOCK, Int Tooth, 5/16"

5шт.

27

13-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

Cover Hex, 5/16"-18 x 2", G5

2шт.

28

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

Cover Hex, 5/16"-18 x 7/8", G5, Full Thd

3шт.

29

222-23

FITTING,1/2"-24 x 1/4" NPTF w/Nut

CONNECTOR ASSY. - 1/4" P.T., Includes: Ref. 30 and 31

1шт.

30

222-102

SLEEVE,1/4" Tube

Connector 1/4" Tube

1шт.

31

87017024

TUBE NUT,1/2"-24

NUT - connector, 1/4" tube

1шт.

32

222-31

HYD CONNECTOR,1"-18 x 1/2" NPTF w/Nut

CONNECTOR - 1/2" P.T., Includes: Ref. 33 and 34

1шт.

33

222-106

SLEEVE,5/8" Tube

- connector

1шт.

34

222-116

TUBE NUT,1"-18

NUT - connector, 5/8" tube

1шт.

35

222-31

HYD CONNECTOR,1"-18 x 1/2" NPTF w/Nut

CONNECTOR - 1/2" P.T., Includes: Ref. 36 and 37

1шт.

36

222-106

SLEEVE,5/8" Tube

- connector

1шт.

37

222-116

TUBE NUT,1"-18

NUT - connector, 5/8" tube

1шт.

40

A22590

FILTER SCREEN

SCREEN ASSY. - oil inlet

1шт.

41

A22595

TUBE

- oil, Serial Range: pump-filter

1шт.

42

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

Housing Hex, 1/2"-13 x 1 1/2", G5, Full Thd

4шт.

43

92-8

LOCK WASHER,1/2"

4шт.

44

222-22

FITTING,1/2"-24 x 1/8" NPTF w/Nut

CONNECTOR ASSY. - 1/8" P.T., Includes: Ref. 45 and 46

1шт.

45

222-102

SLEEVE,1/4" Tube

Connector 1/4" Tube

1шт.

46

87017024

TUBE NUT,1/2"-24

NUT - connector, 1/4" tube

1шт.

47

A22596

TUBE

- oil gallery to balancer shaft

1шт.

48

A20541

CLIP

- oil tube

1шт.

49

A57075

PLUG

- oil gallery, cylinder block

1шт.

50

A27355

O-RING,0.139" Thk x 1.17" ID, -217, Cl 5, 75 Duro

"O" RING - oil gallery plug

1шт.

51

A22592

PLUG

- oil gallery, cylinder block (Order A57075 & A27355)

1шт.

52

A22593

SET SCREW,1/4" - 18 x 7/8"

- set, Serial Range: plug-block

1шт.
