Запчасти Case W7 (020) - CRANKSHAFT - FLYWHEEL & HOUSING, (301) DIESEL ENGINE (02) - ENGINE

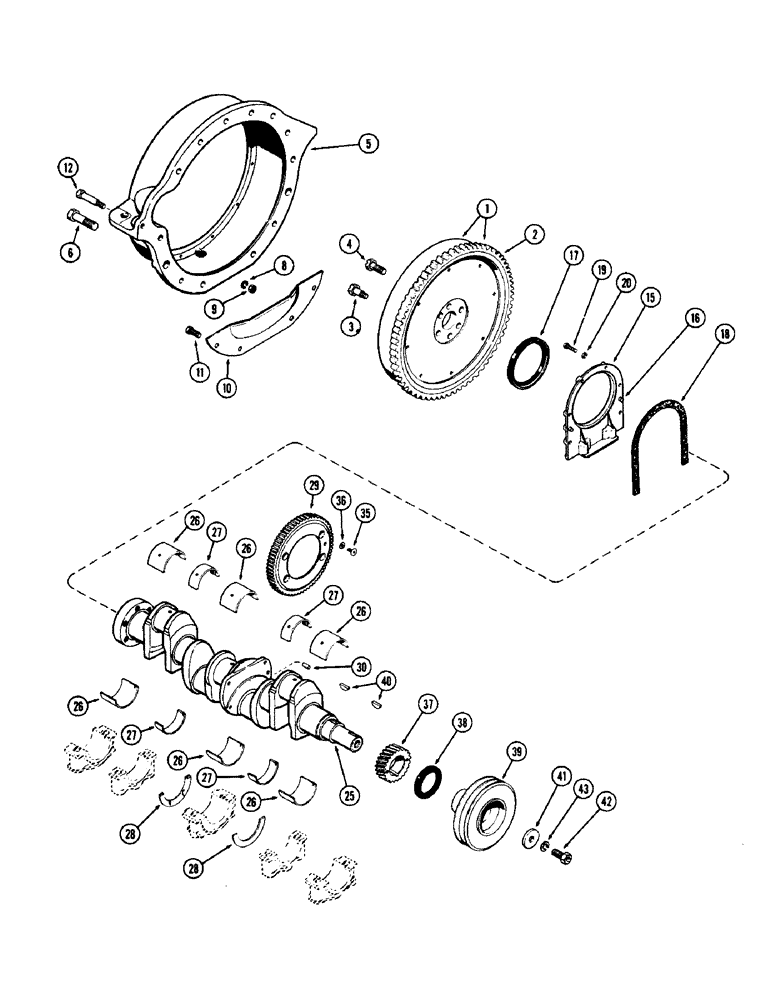

Схема запчастей Case W7 - (020) - CRANKSHAFT - FLYWHEEL & HOUSING, (301) DIESEL ENGINE (02) - ENGINE

Артикул

Название

Примечание

Количество

1

A17491

FLYWHEEL

ASSY. - engine, Includes: Ref. 2

1шт.

2

A27920

GEAR

RING - gear-flywheel

1шт.

3

A11549

STEP BOLT

BOLT - dowel, flywheel mounting

2шт.

REF#3 IF CUSTOMER HAS 5/8 DOWEL IT IS NO LONGER NEEDED. OK TO USE REF#4 IF CUSTOMER WANTS TO USE.

1шт.

REF#3 IS 9/16-18 FINE THREAD

1шт.

4

A11550

BOLT (SPREADER)

BOLT - flywheel mounting

4шт.

5

A58684

HOUSING - flywheel

1шт.

6

A20108

BOLT -, Serial Range: housing-block

2шт.

6

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

3шт.

6

14-828

BOLT,Hex, 1/2" - 20 x 1-3/4", Gr 5

- 1/2 x 1-3/4" N.F. hex.

3шт.

8

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

9

25-1112

NUT,3/4"-16, G5

- 3/4" N.F. hex.

2шт.

10

A58931

GUARD

SHIELD - dust, flywheel housing (Replaces A14508)

1шт.

11

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

2шт.

11

14-820

BOLT,Hex, 1/2" - 20 x 1-1/4", Gr 5

- 1/2 x 1-1/4" N.F. hex.

2шт.

12

A32607

STEP BOLT

- dowel, short, Serial Range: housing-block

1шт.

12

A32608

STEP BOLT

BOLT - dowel, long, Serial Range: housing-block

1шт.

15

A57457

RETAINER

ASSY. - rear seal, crankshaft

1шт.

16

A27840

PIN

- dowel, retainer

2шт.

17

A23085

OIL SEAL

- oil, 4-3/4 x 5-3/4 x 1/2"

1шт.

18

A32830

GASKET

- rear retainer

1шт.

19

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

6шт.

20

92-6

LOCK WASHER,3/8"

6шт.

25

A22578

CRANKSHAFT - engine

1шт.

26

A28687

LINING

INSERT ASSY. - main brg. (Set of 2) (Wide) (Std.)

3шт.

26

A7182

KIT

INSERT ASSY. - main brg. (Set of 2) (Wide) (-.002")

3шт.

26

A7188

BEARING LINER

INSERT ASSY. - main brg. (Set of 2) (Wide) (-.010")

3шт.

26

A7194

KIT

INSERT ASSY. - main brg. (Set of 2) (Wide) (-.020")

3шт.

26

A7200

KIT

INSERT ASSY. - main brg. (Set of 2) (Wide) (-.030")

3шт.

27

A20394

LINING

INSERT ASSY. - main brg. (Set of 2) (Narrow) (Std.)

2шт.

27

A20579

LINING

INSERT ASSY. - main brg. (Set of 2) (Narrow) (-.002")

2шт.

27

A20582

LINING

INSERT ASSY. - main brg. (Set of 2) (Narrow) (-.010")

2шт.

27

A20585

KIT

INSERT ASSY. - main brg. (Set of 2) (Narrow) (-.020")

2шт.

27

A20588

KIT

INSERT ASSY. - main brg. (Set of 2) (Narrow) (-.030")

2шт.

28

A27835

WASHER

- thrust, crankshaft brg. (Std.)

2шт.

28

A7204

WASHER

- thrust, crankshaft brg. (.006" oversize)

2шт.

29

A22576

GEAR

- drive balancer

1шт.

30

A8134

PIN

- dowel, balancer drive gear, 3/8 x 3/4"

1шт.

35

A23583

HEX SOC SCREW,Flat Hd, 3/8" - 24 x 3/4"

SCREW - mtg., drive gear, 3/8 x 3/4" N.F., flat sckt. hd.

4шт.

36

193-56

LOCK WASHER,Ext Csk Tooth, 3/8"

WASHER, LOCK, Ext Csk Tooth, 3/8"

4шт.

37

A27837

GEAR

- crankshaft

1шт.

38

A57342

SEAL

- oil, crankshaft front

1шт.

39

A23644

PULLEY

- drive, fan

1шт.

REF#39 REPLACED BY A15486

1шт.

40

126-129

WOODRUFF KEY,#C, 5/16" x 1 1/8", HT

Crankshaft gear & pulley, #6 Woodruff

2шт.

41

A27903

WASHER

- drive pulley, 21/32 x 2-1/8 x 17/64"

1шт.

42

88112

BOLT,Hex, 5/8" - 18 x 1 1/2", Gr 5

- drive pulley ret., 5/8 x 1-1/2" N.C. hex. spec.

1шт.

43

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

Выбрано товаров: 48
