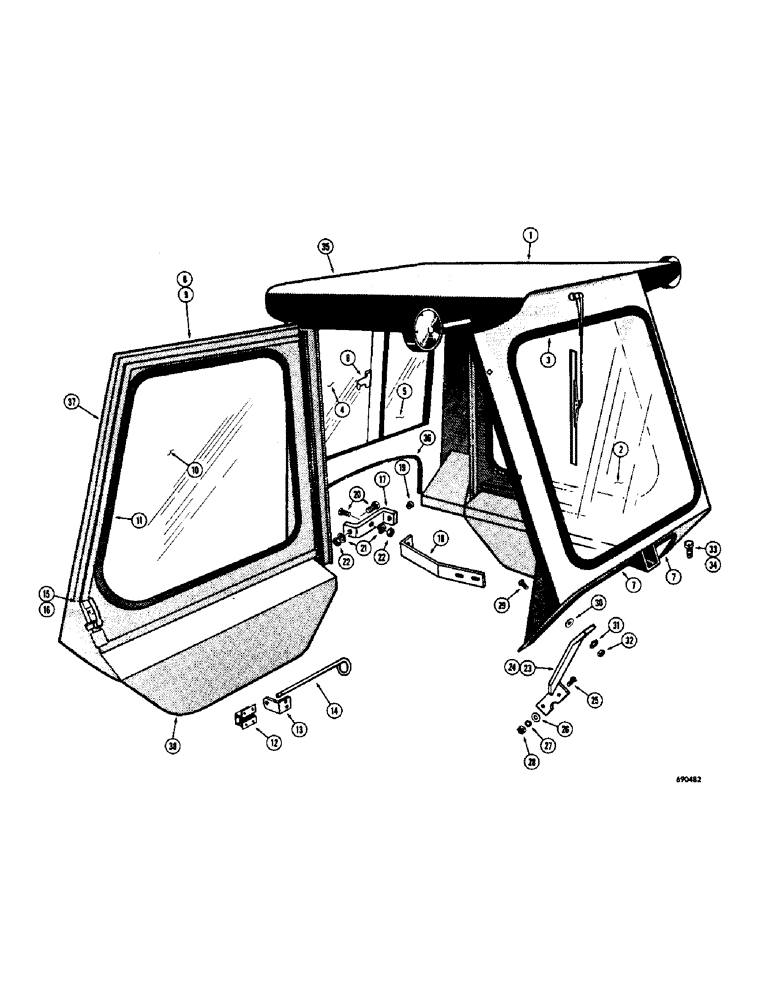

Запчасти Case W7 (286) - OPERATORS CAB, S/N 9800472 AND AFTER (09) - CHASSIS

L10166

CAB ASSEMBLY - operator (Machinery item), Includes: Ref. 1 - 18

1шт.

1

L10132

CAB - operator (Machinery item), Includes: Ref. 2 - 16

1шт.

2

L10136

GLASS - windshield

1шт.

3

L10137

MOULDING - windshield

1шт.

4

A19846

GLASS - sliding, rear (R.H.)

1шт.

5

A19847

GLASS - stationary, rear (L.H.)

1шт.

THE FELT MATERIAL AROUND THE WINDOW IS NSS

1шт.

6

A19860

HANDLE - pull, rear glass

1шт.

7

L10138

WEATHER - strip, cab

2шт.

8

L10139

DOOR - cab, R.H., Includes: Ref. 10 - 16

1шт.

9

L10140

DOOR - cab, L.H., Includes: Ref. 10 - 16

1шт.

10

A19856

GLASS - door

1шт.

11

A19859

MOULDING - door glass

1шт.

12

A19852

CATCH - door opening

1шт.

13

A19858

CLIP - rod guide

1шт.

14

A19857

ROD - door hold down

1шт.

15

A19854

LATCH - cab door (R.H. door only)

1шт.

16

A19855

LATCH - cab door (L.H. door only)

1шт.

17

L10160

CATCH - hold down, door

2шт.

18

L10157

BRACE - striker strap

2шт.

19

A19872

BUMPER - door, rubber

2шт.

20

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

21

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

22

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

23

L10141

BRACKET - cab mounting, R.H. front

1шт.

24

L10142

BRACKET - cab mounting, L.H. front

1шт.

25

113-120

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

4шт.

26

195-521

WASHER,5/16", SAE

- plain (5/16") Zinc plated

4шт.

27

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

28

9635082

NUT,5/16" - 18, Gr 5

4шт.

29

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

30

195-525

WASHER,3/8", SAE

- plain (3/8") Zinc plated

1шт.

31

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

32

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

33

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

1шт.

34

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

35

A18822

GASKET

MOULDING - cab roof, rubber

2шт.

36

L10162

WEATHER STRIP - cab, lower rear

2шт.

37

L10156

WEATHER STRIP - cab, door jam

2шт.

38

L10159

WEATHER STRIP - cab, lower door

2шт.
