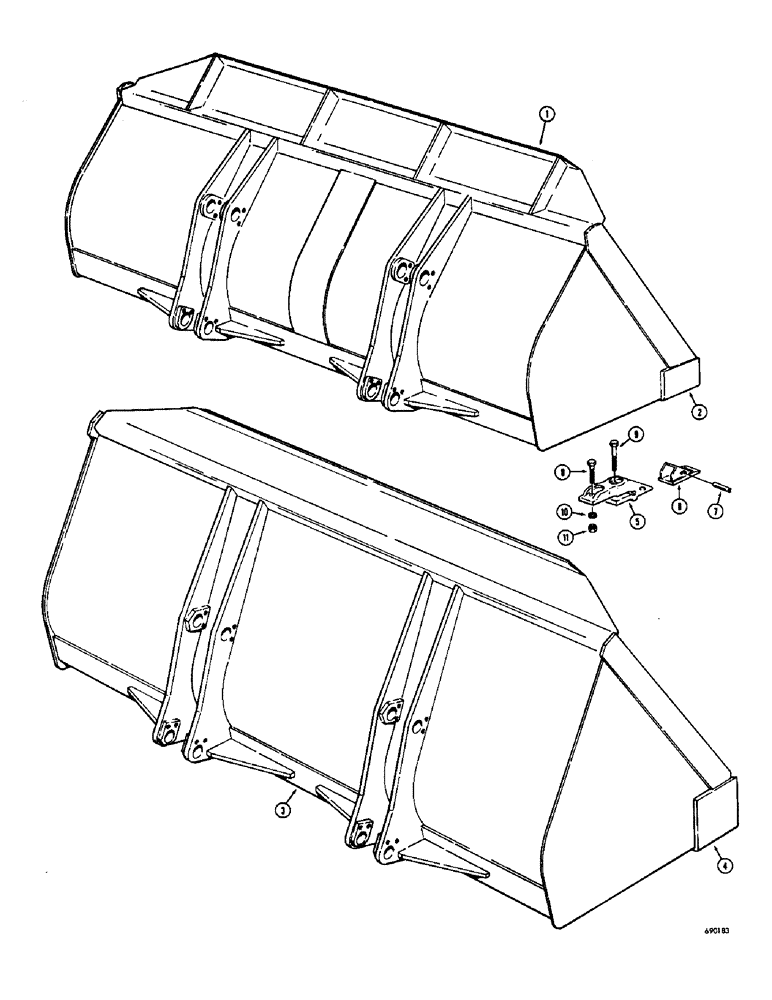

Запчасти Case W7 (248) - LOADER BUCKETS-MACHRY ITEM(OPTL TYP),1 CU YD BCK,1.25CU YD BCK,1 3/8CU YD BCK,2 CU YD BCK,BCKT TEETH (09) - CHASSIS

1

A17584

BUCKET - loader, 1 cu. yd., Includes: Ref. 2

1шт.

2

A17552

EDGE

CUTTING EDGE - bucket

1шт.

1

A17545

BUCKET - loader, 1-1/4 cu. yd., Includes: Ref. 2

1шт.

2

A17552

EDGE

CUTTING EDGE - bucket

1шт.

1

L10191

BUCKET - loader, 1-3/8" cu. yd., Includes: Ref. 2

1шт.

2

L10194

CUTTING EDGE

- bucket

1шт.

3

A17569

BUCKET - loader, 2 cu. yd. (machinery item), Includes: Ref. 4

1шт.

4

A17576

CUTTING EDGE - bucket, 2 cubic yard loader bucket (machinery item)

1шт.

L16667

TOOTH

ASSEMBLY - bucket (9 teeth used with L10191 bucket only), Includes: Ref. 5 - 7

8-9шт.

5

NSS

NOT SOLD SEPARAT

SHANK - tooth, bucket teeth (optional on A17545 and L10191 buckets only)

1шт.

6

D39093

TOOTH

POINT - tooth, bucket teeth (optional on A17545 and L10191 buckets only)

1шт.

7

D39094

BUCKET TOOTH KEY

FLEX PIN - point, bucket teeth (optional on A17545 and L10191 buckets only)

1шт.

8

13-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

Bucket teeth (optional on A17545 and L10191 buckets only) Hex, 5/8"-11 x 2 1/2", G5

8-9шт.

9

13-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

Bucket teeth (optional on A17545 and L10191 buckets only) Hex, 5/8"-11 x 3 1/4", G5

8-9шт.

10

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , Bucket teeth (optional on A17545 and L10191 buckets only) 5/8"

18шт.

11

86625068

NUT,5/8"-11, G8

- hex. (5/8" - 11 NC), bucket teeth (optional on A17545 and L10191 buckets only)

18шт.
