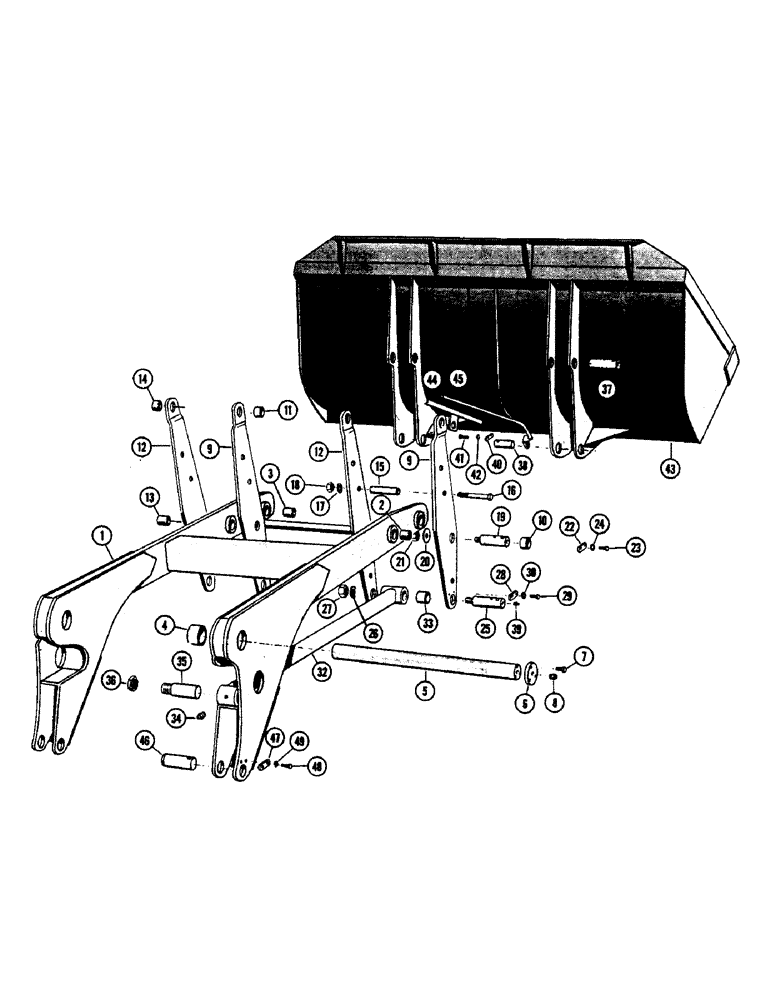

Запчасти Case W7 (246) - LOADER LIFT FRAME AND RELATED PARTS (09) - CHASSIS

1

A17463

ARM - loader lift, Includes: Ref. 2 - 4

1шт.

2

A12062

BUSHING

- pivot

4шт.

3

A16760

BUSHING

- bucket pivot

2шт.

4

A17122

BUSHING

- lift arm pivot

2шт.

5

A17479

SHAFT

- lift arm pivot

1шт.

6

A17480

HARDWARE

PLATE - end, lift arm pivot shaft

2шт.

7

121-300

LOCK BOLT,Lock Place, Hex, 7/16" - 20 x 1 1/8", Gr 8

BOLT - place 7/16" - 20 NF x 1-1/8"

6шт.

8

219-3

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8" NPT, long

2шт.

9

A17432

BELLCRANK

BELL CRANK - R.H., Includes: Ref. 10 and 11

2шт.

10

A12062

BUSHING

- center pivot

1шт.

11

A13487

BUSHING

- upper pivot

1шт.

12

A17433

DIPPER

BELL CRANK - L.H., Includes: Ref. 13 and 14

1шт.

13

A12062

BUSHING

- center pivot

1шт.

14

A13487

BUSHING

- upper pivot

1шт.

15

A17447

SPACER - bell crank

6шт.

16

13-1092

BOLT,Hex, 5/8" - 11 x 5-3/4", Gr 5

HHCS - 5/8" - 10 NC x 5-3/4"

6шт.

17

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

6шт.

18

25-1010

NUT,5/8"-11, G5

- hex. 5/8" - 10 NC

6шт.

19

A17450

PIN

- bell crank pivot

2шт.

20

193-17

LOCK WASHER,Ext Tooth, 1"

WASHER, LOCK, Ext Tooth, 1"

2шт.

21

25-1516

NUT,Jam, 1"-14, G5

- hex. jam 1" - 14 NF

2шт.

22

A17204

COVER PLATE

LOCK - bell crank pivot pin

2шт.

23

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

24

92-6

LOCK WASHER,3/8"

4шт.

25

A17448

PIN

- level link, front

2шт.

26

193-17

LOCK WASHER,Ext Tooth, 1"

WASHER, LOCK, Ext Tooth, 1"

2шт.

27

25-1516

NUT,Jam, 1"-14, G5

- hex., jam (1" - 14 NF)

2шт.

28

A17204

COVER PLATE

LOCK - level link front pivot pins

2шт.

29

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

30

92-6

LOCK WASHER,3/8"

4шт.

32

A17442

LINK - level, Includes: Ref. 33

2шт.

33

A17446

BUSHING

- level link

4шт.

34

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - straight grease 1/8" NPT

2шт.

35

A17449

PIN,31.75mm OD x 155.57mm L

- level link rear

2шт.

36

131-215

NUT

- hex., lock 1-1/4" - 12 NF

2шт.

37

A17560

PIN

- bucket pivot, upper R.H.

1шт.

38

A17561

PIN

- bucket pivot, upper L.H. and lower both sides

3шт.

39

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - straight grease, 1/8" NPT

4шт.

40

L16422

LOCK

- bucket pivot pin

4шт.

41

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

8шт.

42

92-6

LOCK WASHER,3/8"

8шт.

43

REF

INSTRUCTION

BUCKET - loader (See figures 248 and 250 for optional types)

1шт.

44

A17461

GAUGE - bucket sight level

1шт.

45

A17459

ROD - bucket sight level gauge

1шт.

46

A17344

LOCK

PIN - lift cylinder, front pivot

1шт.

47

L16422

LOCK

- lift cylinder front and rear pivot pin

4шт.

48

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

8шт.

49

92-6

LOCK WASHER,3/8"

8шт.
