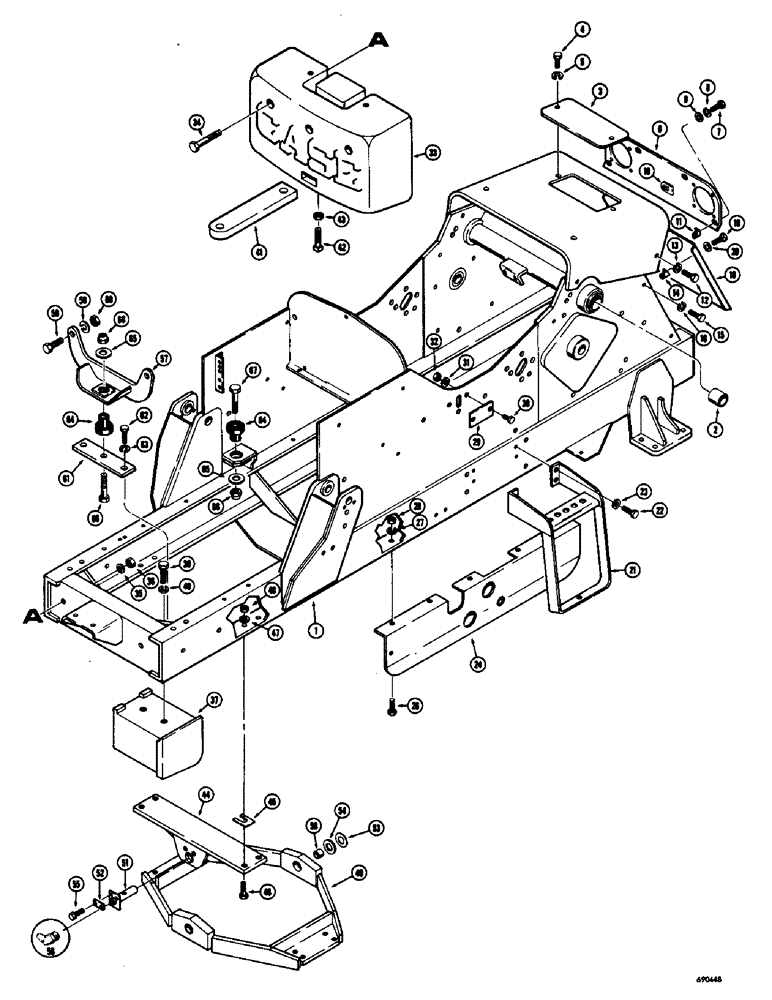

Запчасти Case W7 (188) - CHASSIS, ENGINE MOUNTS AND RELATED PARTS (09) - CHASSIS

1

A17006

CHASSIS - engine and frame

1шт.

2

A17122

BUSHING

- pivot, lift arm

2шт.

3

A17120

PLATE - access, froont

1шт.

4

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

5

92-6

LOCK WASHER,3/8"

2шт.

6

A17107

PLATE - headlight mounting, front

1шт.

7

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

4шт.

8

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

9

195-521

WASHER,5/16", SAE

- plain (5/16") Zinc plated

4шт.

10

131-134

SPRING NUT

- Tinnerman (5/16" - 18 NC)

2шт.

11

A16832

ANGLE

CLIP - mounting, headlight plate

2шт.

12

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

13

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

14

A16834

CLIP - mounting, front cover

4шт.

15

113209

SHAFT

HHCS - 3/8" - 16 NC x 1-1/2" (Zinc plated)

4шт.

16

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

18

A17112

COVER - chassis, front

1шт.

19

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

20

195-525

WASHER,3/8", SAE

- plain (3/8") Zinc plated

4шт.

21

A17115

BRACKET

STEP - operator compartment

2шт.

22

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

8шт.

23

92-6

LOCK WASHER,3/8"

8шт.

24

A19320

PANEL - side, front (R.H.)

1шт.

25

A17111

PANEL - side, front (L.H.) Not illusrated

1шт.

26

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

8шт.

27

92-6

LOCK WASHER,3/8"

8шт.

28

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

8шт.

29

L10158

COVER - slot, R.H. side plate

1шт.

30

113-221

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

2шт.

31

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

32

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

33

A17099

COUNTERWEIGHT - rear

1шт.

34

13-1280

BOLT,Hex, 3/4" - 10 x 5", Gr 5

3шт.

35

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

3шт.

36

25-1012

NUT,3/4"-10, G5

3шт.

37

A18506

COUNTERWEIGHT - rear, R.H.

1шт.

38

A18507

COUNTERWEIGHT - rear, L.H. (Not illustrated)

1шт.

39

13-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 5

4шт.

40

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

41

A13990

DRAWBAR - rear

1шт.

42

85-1048

SET SCREW,Sq Hd, 5/8"-11 x 3"

SCREW - set, square head (5/8" - 11 NC x 3")

1шт.

43

25-1010

NUT,5/8"-11, G5

1шт.

44

A17081

BRACKET - pivot, rear axle

1шт.

45

A56516

SHIM,.030" Thk

Pivot bracket to chassis .030" Thk

1шт.

46

13-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

4шт.

47

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

48

25-1010

NUT,5/8"-11, G5

4шт.

49

A17084

ROD - radius, rear axle

1шт.

50

A17094

BUSHING

- mounting, rear axle

2шт.

51

A17095

AXLE PIN

PIN - pivot, rear axle

2шт.

52

A15157

LOCK ASSY

LOCK - pivot bolt, rear axle

2шт.

53

A17097

WASHER

- thrust mounting, rear axle (Thin)

1шт.

54

A17098

WASHER

- thrust mounting, rear axle (Thick)

1шт.

55

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

4шт.

56

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease, 45 degrees (1/8" NPT)

2шт.

57

A17510

MOUNT - engine, front

1шт.

58

13-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 5

2шт.

59

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

60

25-1012

NUT,3/4"-10, G5

2шт.

61

A17514

PLATE - engine support

1шт.

62

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

63

92-8

LOCK WASHER,1/2"

2шт.

64

A17515

MOUNTING PARTS

MOUNT - engine, rubber

3шт.

65

A17516

WASHER

- engine mount

3шт.

66

13-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 5

HHCS - 5/8" - 11 NC x 4"

1шт.

67

13-1068

BOLT,Hex, 5/8" - 11 x 4-1/4", Gr 5

HHCS - 5/8" - 11 NC x 4-1/4"

2шт.

68

131-14

LOCK NUT,5/8"-11, GC

NUT, LOCK, 5/8"-11, GC

3шт.
