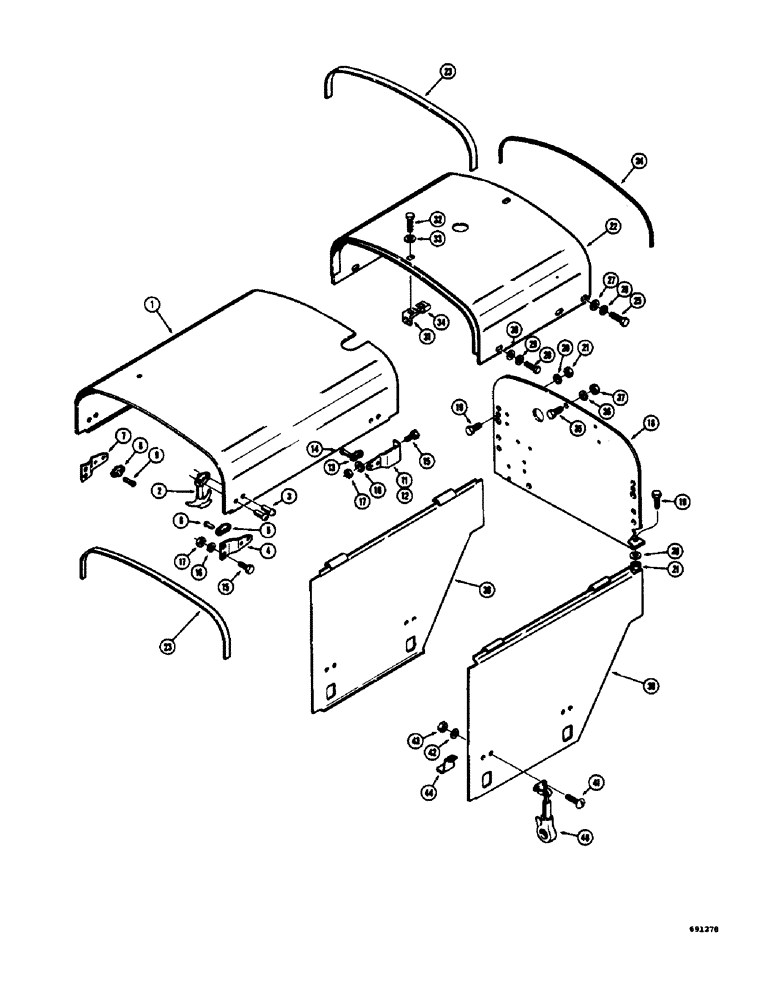

Запчасти Case W7 (182) - HOOD AND ENGINE SIDE PANELS (09) - CHASSIS

1

A17231

HOOD ASSEMBLY - engine, Includes: Ref. 2 and 3

1шт.

2

A17232

LATCH ASSY.

LATCH - hood

4шт.

3

49-46

RIVET - box head, 1/4" dia. x 3/8"

8шт.

4

A17238

BRACKET

ASSEMBLY - hood holddown, R.H. rear, Includes: Ref. 5 and 6

1шт.

5

A17237

HOOK

CATCH - holddown

1шт.

6

49-310

RIVET - truss head, 3/16" dia. x 5/8"

2шт.

7

A17239

BRACKET

ASSEMBLY - hood holddown, L.H. rear (Gas models only), Includes: Ref. 8 and 9

1шт.

8

A17237

HOOK

CATCH - holddown

1шт.

9

49-310

RIVET - truss head, 3/16" dia. x 5/8"

2шт.

11

A17234

BRACKET ASSEMBLY - hood holddown, R.H. front, Includes: Ref. 13 and 14

1шт.

12

A17235

BRACKET

ASSEMBLY - hood holddown, L.H. front, Includes: Ref. 13 and 14

1шт.

13

A17237

HOOK

CATCH - holddown

1шт.

14

49-310

RIVET - truss head, 3/16" dia. x 5/8"

2шт.

15

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

6-8шт.

16

92-6

LOCK WASHER,3/8"

6-8шт.

17

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

6-8шт.

18

A17113

PLATE - mounting, fuel tank

1шт.

19

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

6шт.

20

92-6

LOCK WASHER,3/8"

6шт.

21

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

6шт.

22

A17228

HOOD - fuel tank (Front)

1шт.

23

L11785

SHIM

PAD -, Serial Range: hood-chassis

2шт.

24

A9091

MOULDING - hood edge

1шт.

25

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

4шт.

26

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

27

195-533

WASHER,1/2", SAE

- plain (1/2") Zinc plated

4шт.

28

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

29

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

30

195-525

WASHER,3/8", SAE

- plain (3/8") Zinc plated

2шт.

31

A15595

ANGLE - holddown, hood

2шт.

32

175-410

SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

HHCS - 5/16" - 18 NC x 3/4" (Zinc plated)

2шт.

33

195-521

WASHER,5/16", SAE

- plain (5/16") Zinc plated

2шт.

34

131-124

NUT

- Tinnerman (5/16" - 18 NC)

2шт.

35

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

36

92-6

LOCK WASHER,3/8"

2шт.

37

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

2шт.

38

A17241

SIDE PANEL - engine, L.H. (Used with dry and oil bath air cleaner)

1шт.

38

A19605

SIDE PANEL - engine, L.H. (Used with dry and oil bath air cleaners) Backhoe models only

1шт.

39

A17240

SIDE PANEL - engine, R.H. (Used with dry type air cleaner only)

1шт.

39

A18724

SIDE PANEL - engine, R.H. (Used with oil bath air cleaner only)

1шт.

39

A19604

SIDE PANEL - engine, R.H. (Backhoe models only)

1шт.

40

A12514

LATCH

- engine panel

4шт.

41

173-118

SCREW,Sl Rnd Hd, #12 - 24 x 5/8"

- machine, round head (#12 - 24 NC x 5/8")

8шт.

42

492-11012

LOCK WASHER,#12

WASHER, LOCK, #12

8шт.

43

225-14112

NUT,#12-24

- hex. (#12 - 24 NC)

8шт.

44

A12197

BRACKET - holddown, panel

4шт.
