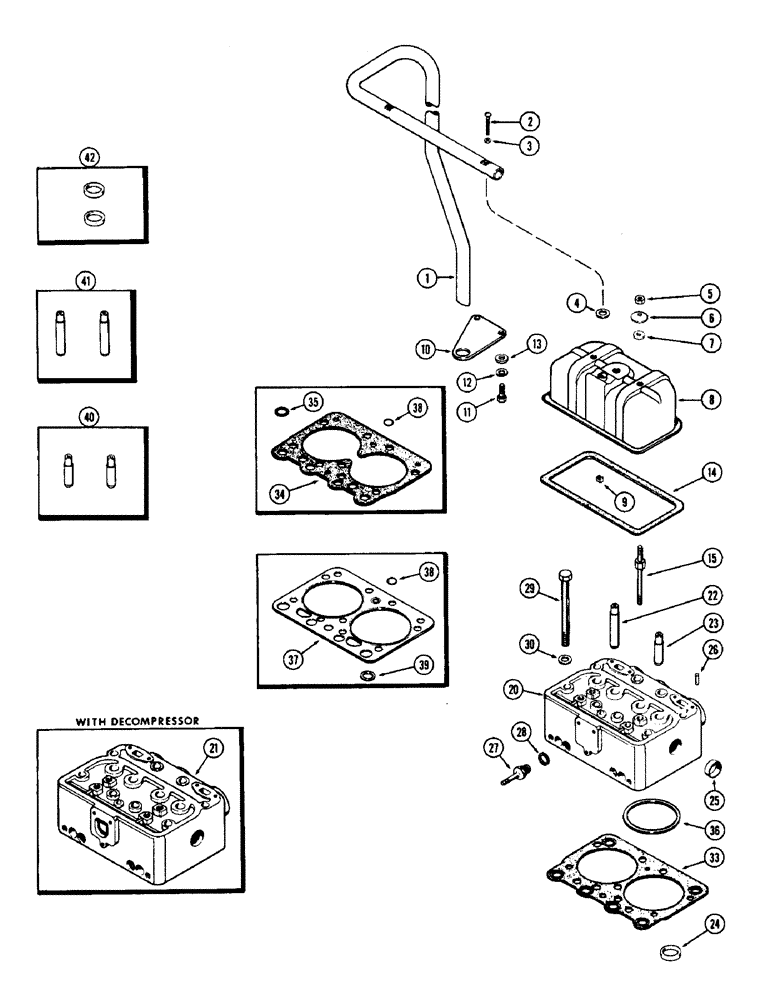

Запчасти Case W7 (012) - CYLINDER HEAD AND COVER, (301) DIESEL ENGINE (02) - ENGINE

1

A17486

TUBE - breather, oil

1шт.

2

75-432

SCREW

- 1/4 x 2" N.C. rd. hd. mach.

2шт.

3

A34133

GASKET

- breather screw

2шт.

4

A23685

GASKET

- breather tube seat

2шт.

5

25-117

NUT,7/16"-20, G5

- 7/16" N.F. hex.

4шт.

6

A23683

WASHER

- bevel, valve head cover stud

4шт.

7

A23684

GASKET

GASKET - valve head cover stud

4шт.

8

A23681

COVER ASSY

. - cylinder head, Includes: Ref. 9

2шт.

9

131-2

NUT,1/4"-20, GB

NUT - Tinnerman, 1/4" N.C.

2шт.

10

A23686

BRACKET

- breather tube

1шт.

11

A9936

BOLT - mounting, bracket (Special)

2шт.

12

92-6

LOCK WASHER,3/8"

2шт.

13

195-25

WASHER,3/8"

- 13/32 x 13/16 x 1/16"

2шт.

14

A57595

CYLINDER HEAD GASKET

- cylinder head cover (Replaces A27972)

2шт.

15

A57458

STUD

- bracket & cover (w/o decompressor)

4шт.

15

A27882

STUD - bracket & cover (w/o decompressor)

4шт.

20

A33644

X

HEAD ASSY. - cylinder (w/o decompressor)

2шт.

21

A21022

HEAD

ASSY. - cylinder (w/decompressor), Includes: Ref. 22 - 28

2шт.

22

NSS

NOT SOLD SEPARAT

GUIDE - valve, intake (Order ref. 40)

2шт.

23

NSS

NOT SOLD SEPARAT

GUIDE - valve, exhaust (Order ref. 41)

2шт.

24

NSS

NOT SOLD SEPARAT

INSERT - valve, exhaust (Order ref. 42)

2шт.

25

A34124

PLUG,Cup, 1 5/8", Stainless

- cylinder head, 1-21/32" cup type

2шт.

26

A11810

PIN,3.19mm OD x 6.99mm L

- locating, powrcel, 1/8 x 17/64"

2шт.

27

A10678

STUD

- nozzle holder

2шт.

28

A10679

GASKET

- stud, 23/32 x 29/32 x 1/32" copper

2шт.

29

A57482

STEP BOLT

BOLT - cylinder head, 9/16 x 6 1/4" N.C. hex.

18шт.

30

A27870

WASHER

- cylinder head bolt

18шт.

33

A57593

GASKET

- cylinder head, Start Serial: 2197563

2шт.

34

A41385

X

GASKET KIT - cylinder head (Order 1-A57593 & 2-A34686), Includes: Ref. 35, Serial Range: 2145201-2197563

2шт.

35

NSS

NOT SOLD SEPARAT

RING - cylinder head gasket

8шт.

36

A34686

RING

- fire, cylinder head gasket (Std.)

4шт.

36

A34688

RING

- fire-cylinder head gasket (Oversize, blue)

4шт.

37

A23117

GASKET

- cylinder head (Order A57593), Serial Range: -2145201

2шт.

38

A27410

O-RING,0.487" ID x 0.693" OD x 0.103"

"0" RING - oil passage, 1/2 x 11/16 x 3/32" (Used w/A23117 & A41385)

2шт.

39

A7669

RING

- water passage, 7/8 x 1-3/32 x 5/64" (Used w/A23117 only)

4шт.

40

A21671

GUIDE

KIT - intake valve (Set of 2)

2шт.

41

A21674

GUIDE

KIT - exhaust valve (Set of 2)

2шт.

42

A57485

INSERT

KIT - exhaust valve (Set of 2) (Replaces A21683)

2шт.
