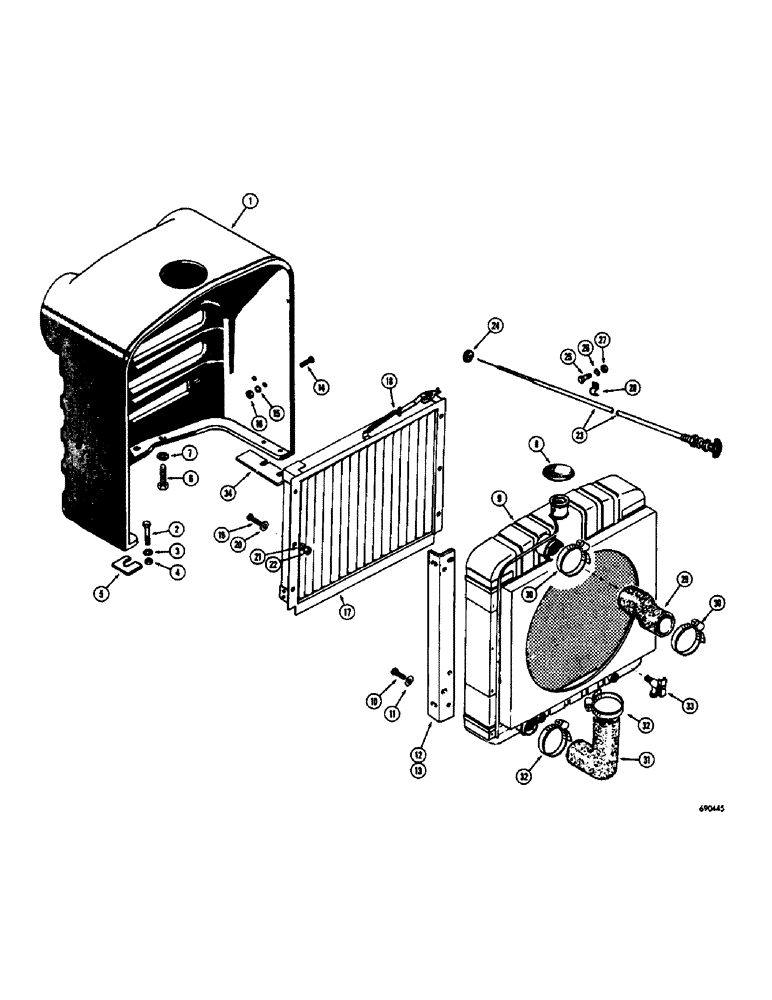

Запчасти Case W7 (180) - RADIATOR, GRILLE AND SHUTTER (09) - CHASSIS
№
Артикул
Название
Примечание
Количество
1
A17568
GRILLE ASSY
GRILLE - radiator guard
1шт.
2
13-832
BOLT,Hex, 1/2" - 13 x 2", Gr 5
4шт.
3
92-8
LOCK WASHER,1/2"
4шт.
4
25-108
NUT,1/2"-13, G5
- hex. (1/2" - 13 NC)
4шт.
5
A15087
SPACER -, Serial Range: grille-frame
1шт.
6
14-820
BOLT,Hex, 1/2" - 20 x 1-1/4", Gr 5
HHCS - 1/2" - 20 NF x 1-1/4"
2шт.
7
92-8
LOCK WASHER,1/2"
2шт.
8
A21389
CAP
- radiator (7 PSI)
1шт.
9
A17563
RADIATOR - cooling system
1шт.
10
14-58
BOLT,Hex, 5/16" - 24 x 1/2", Gr 5, Full Thd
HHCS - 5/16" - 24 NF x 1/2"
4шт.
11
195-21
WASHER,5/16"
- plain () 5/16"
4шт.
12
A17566
ANGLE - radiator mounting, L.H.
1шт.
13
A17567
ANGLE
- radiator mounting, R.H.
1шт.
14
13-620
BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd
4шт.
15
92-6
LOCK WASHER,3/8"
4шт.
16
25-106
NUT,3/8"-16, G5
- hex. (3/8" - 16 NC)
4шт.
17
A17597
SHUTTER - radiator, Includes: Ref. 18
1шт.
18
A9909
SPRING - shutter
1шт.
19
14-510
SCREW,Hex, 5/16" - 24 x 5/8", Gr 5, Full Thd
BOLT, Hex, 5/16"-24 x 5/8", G5, Full Thd
4шт.
20
195-21
WASHER,5/16"
- plain () 5/16"
4шт.
21
92-5
LOCK WASHER,5/16"
4шт.
22
25-115
NUT,5/16"-24, G5
- hex (5/16"-24 NF)
4шт.
23
A9251
CABLE - shutter control
1шт.
24
A17599
GROMMET,1/4" ID x 7/16" Groove Dia
- rubber, shutter cable
1шт.
26
92-3
LOCK WASHER,#10
WASHER, LOCK, #10
1шт.
27
129-7
NUT,Hex, #10 - 24
- hex. (No. 10 - 24 NC)
1шт.
28
A26673
CLIP
- shutter cable
1шт.
29
A17564
RADIATOR HOSE,2.50" ID x 6.00", SAE 20R4 CLASS SC
2.50" ID x 6.00 ", SAE 20R4, Upper
1шт.
30
214-262
HOSE CLAMP,#44, 2.31" - 3.25", Type F Worm
CLAMP - hose, upper
2шт.
31
A17565
RADIATOR HOSE,2.00" ID x 9.31", SAE 20R4 CLASS SC
2.00" ID, SAE 20R4, Lower
1шт.
32
214-260
HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm
lower #36, 1.81/2.75 Type F Worm
2шт.
33
A23655
VALVE
- radiator drain
1шт.
34
L19701
SPACER -, Serial Range: grille-frame
2шт.
