Запчасти Case W7 (282) - A18702 ACCUMULATOR, A13758 ACCUMULATOR VALVE (08) - HYDRAULICS

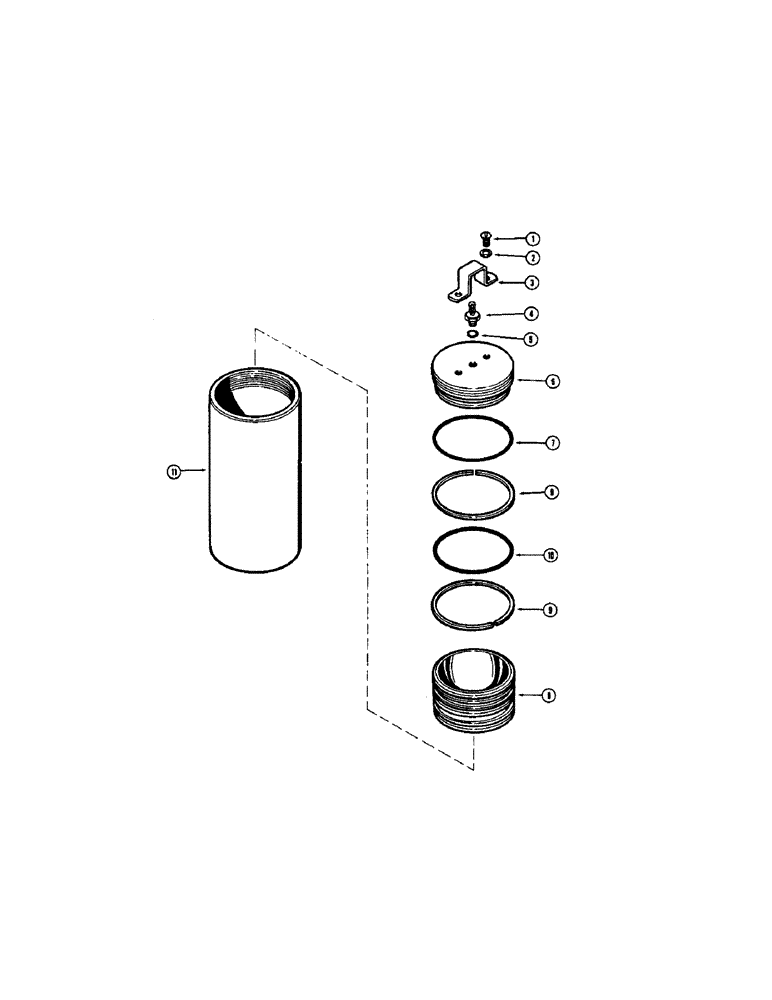

Схема запчастей Case W7 - (282) - A18702 ACCUMULATOR, A13758 ACCUMULATOR VALVE (08) - HYDRAULICS

Артикул

Название

Примечание

Количество

A18702

ACCUMULATOR - hydraulic, Includes: Ref. 1 - 11

1шт.

1

75-610

X

SCREW - machine, round head (3/8" - 16 NC x 5/8")

2шт.

2

92-6

LOCK WASHER,3/8"

2шт.

3

A14932

GUARD - gas valve

1шт.

4

A14931

VALVE - gas

1шт.

5

A14933

O-RING

SEAL - "O" ring, gas valve

1шт.

6

NSS

NOT SOLD SEPARAT

CAP - end, accumulator

1шт.

7

A14934

O-RING,0.139" Thk x 3.734" ID, -240, Cl 5, 75 Duro

SEAL - "O" ring, end cap

1шт.

8

NSS

NOT SOLD SEPARAT

PISTON - accumulator

1шт.

9

A14930

RING - piston, accumulator

2шт.

10

A14929

O-RING

SEAL - "O" ring, piston

1шт.

11

NSS

NOT SOLD SEPARAT

CYLINDER - accumulator

1шт.

Выбрано товаров: 12
