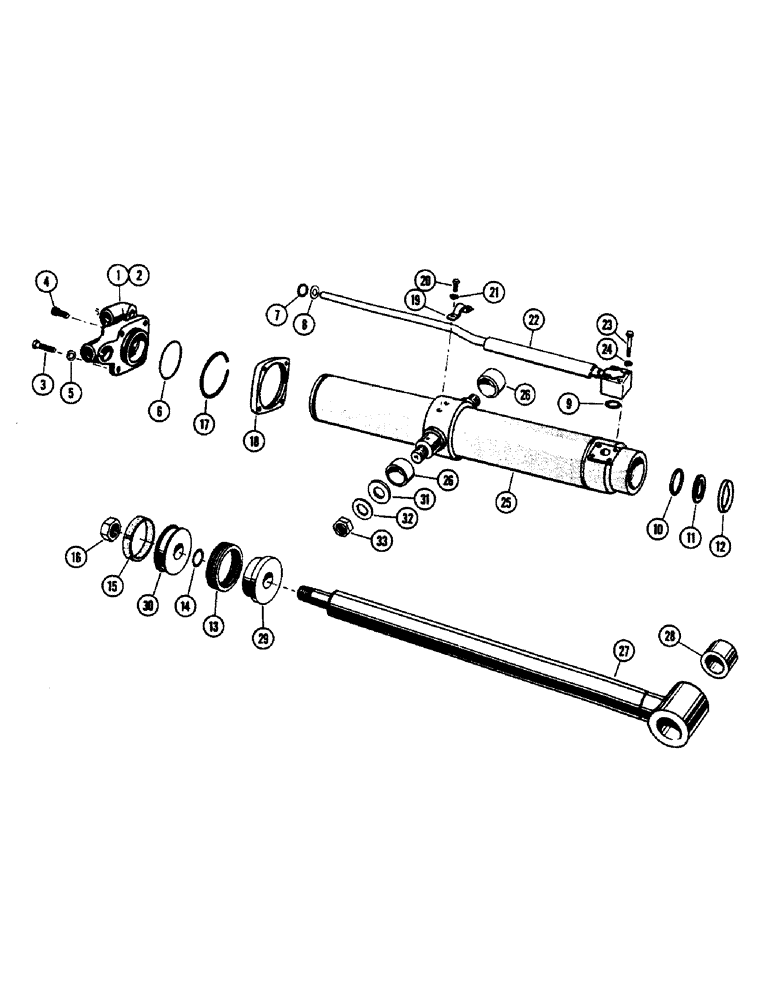

Запчасти Case W7 (276) - A17346 AND A17347 TILT CYLINDERS (08) - HYDRAULICS

A17346

CYLINDER - hydraulic, loader tilt (R.H.), Includes: Ref. 1 - 30

1шт.

A17347

CYLINDER - hydraulic, loader tilt (L.H.), Includes: Ref. 1 - 30

1шт.

1

A17348

HEAD

- cylinder, R.H.

1шт.

2

A17349

HEAD

- cylinder, L.H.

1шт.

3

14-832

BOLT,Hex, 1/2" - 20 x 2", Gr 5

HHCS - 1/2" - 20 NF x 2"

3шт.

4

62-840

SCREW - hex. socket head, 1/2" - 20 NF x 2-1/2" (Grade 8)

1шт.

5

92-8

LOCK WASHER,1/2"

4шт.

A18611

KIT

- tilt cylinder repair, Includes: Ref. 6 - 16

1шт.

6

A27996

O-RING,0.139" Thk x 2.734" ID, -232, Cl 5, 75 Duro

SEAL - "O" ring, cylinder head

1шт.

7

F62114

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

SEAL - "O" ring, port tube

1шт.

8

A17371

WASHER

- leather, port tube

1шт.

9

A30843

O-RING,0.103" Thk x 0.799" ID, -117, Cl 5, 75 Duro

SEAL - "O" ring, port tube block

1шт.

10

A17366

RING

- quad, piston rod

1шт.

11

A17365

WASHER

- leather, piston ring

1шт.

12

A17364

RING

- wiper, piston rod

1шт.

13

A17362

PACKING

- "V" ring, piston

1шт.

14

A29456

O-RING,0.139" Thk x 1.046" ID, -215, Cl 5, 75 Duro

SEAL - "O" ring, piston to rod

1шт.

15

A17360

RING

- wear follower

1шт.

16

R12336

LOCK NUT

- lock, piston rod (1")

1шт.

17

A17359

RING

SNAP RING - cylinder head

1шт.

18

A17358

CLAMP - cylinder head

1шт.

19

A17372

CLAMP - port tube

1шт.

20

13-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

2шт.

21

92-5

LOCK WASHER,5/16"

2шт.

22

A17367

TUBE

- oil port

1шт.

23

14-524

BOLT,Hex, 5/16" - 24 x 1-1/2", Gr 5

HHCS - 5/16" - 24 NF x 1-1/2"

4шт.

24

92-5

LOCK WASHER,5/16"

4шт.

25

A17350

TUBE - cylinder

1шт.

26

A12062

BUSHING

- cylinder trunnion

2шт.

27

A17355

PISTON

ROD - piston, Includes: Ref. 28

1шт.

28

A16760

BUSHING

- piston rod

1шт.

29

A17363

PISTON

1шт.

30

A17361

PLATE ASSY.

PLATE - follower, piston

1шт.

31

F62113

WASHER - cylinder trunnion

2шт.

32

193-38

LOCK WASHER,1 1/8"

WASHER - lock, internal tooth, Shakeproof (1-1/8")

2шт.

33

25-1518

JAM NUT,Jam, 1 1/8"-12, G5

- hex., jam (1-1/8" - 14 NF)

2шт.
