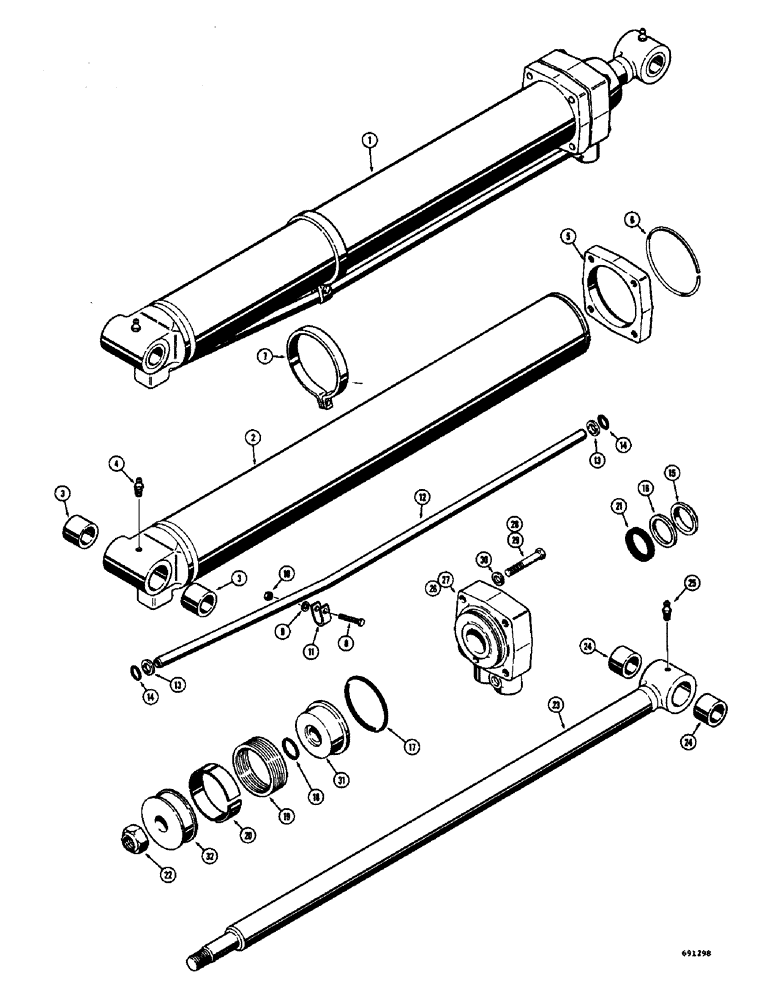

Запчасти Case W7 (274) - A17326 AND A17327 LOADER LIFT CYLINDER (08) - HYDRAULICS

1

A17326

CYLINDER ASSY.

CYLINDER - hydraulic, R.H. loader lift (4" I.D. x 33" stroke), Includes: Ref. 2 - 32

1шт.

A17327

CYLINDER ASSY.

CYLINDER - hydraulic, L.H. loader lift (4" I.D. x 33" stroke) (Not illustrated), Includes: Ref. 2 - 32

1шт.

2

A17330

TUBE

- cylinder, R.H., Includes: Ref. 3

1шт.

A17331

TUBE - cylinder, L.H. (Not illustrated), Includes: Ref. 3

1шт.

3

A13386

BUSHING

- tube

2шт.

4

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

1шт.

5

A13455

CLAMP - cylinder cap

1шт.

6

A13454

RING, SNAP

RING - retaining, cylinder clamp

1шт.

7

A17343

CLAMP - mounting, port tube

1шт.

8

13-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

- 5/16"-18 NC x 1-1/2"

1шт.

9

92-5

LOCK WASHER,5/16"

1шт.

10

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

1шт.

11

A15383

CLAMP - port tube

1шт.

12

A17342

TUBE

- oil, port

1шт.

A18610

REPAIR KIT

KIT - cylinder repair, Includes: Ref. 13 - 22

1шт.

13

A14398

WASHER

RING - backup, leather

2шт.

14

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

SEAL - "O" ring, port tube

2шт.

15

A13893

WIPER

- piston rod

1шт.

16

A13902

WASHER

RING - backup, leather

1шт.

17

A14249

O-RING,0.139" Thk x 3.734" ID, -240, Cl 5, 75 Duro

SEAL - cylinder cap

1шт.

18

A27355

O-RING,0.139" Thk x 1.17" ID, -217, Cl 5, 75 Duro

SEAL - "O" ring, piston rod

1шт.

19

A17339

PACKING

- piston

1шт.

20

A17341

RING

- wear, piston guide

1шт.

21

A14230

RING

SEAL - piston rod

1шт.

22

131-61

LOCK NUT,1 1/8"-12

NUT - hex., lock (1-1/8" - 12 NF)

1шт.

23

A17335

ROD

- piston (2" dia.), Includes: Ref. 24

1шт.

24

A13386

BUSHING

- piston rod

2шт.

25

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

1шт.

26

A17328

CAP - cylinder, R.H.

1шт.

27

A17329

CAP - cylinder, L.H. (Not illustrated)

1шт.

28

14-840

BOLT,Hex, 1/2" - 20 x 2-1/2", Gr 5

HHCS - 1/2" - 20 NF x 2-1/2"

2шт.

29

14-848

BOLT,Hex, 1/2" - 20 x 3", Gr 5

HHCS - 1/2" - 20 NF x 3"

2шт.

30

92-8

LOCK WASHER,1/2"

4шт.

31

A17338

PISTON - cylinder

1шт.

32

A17340

PLATE ASSY.

GUIDE - piston

1шт.
