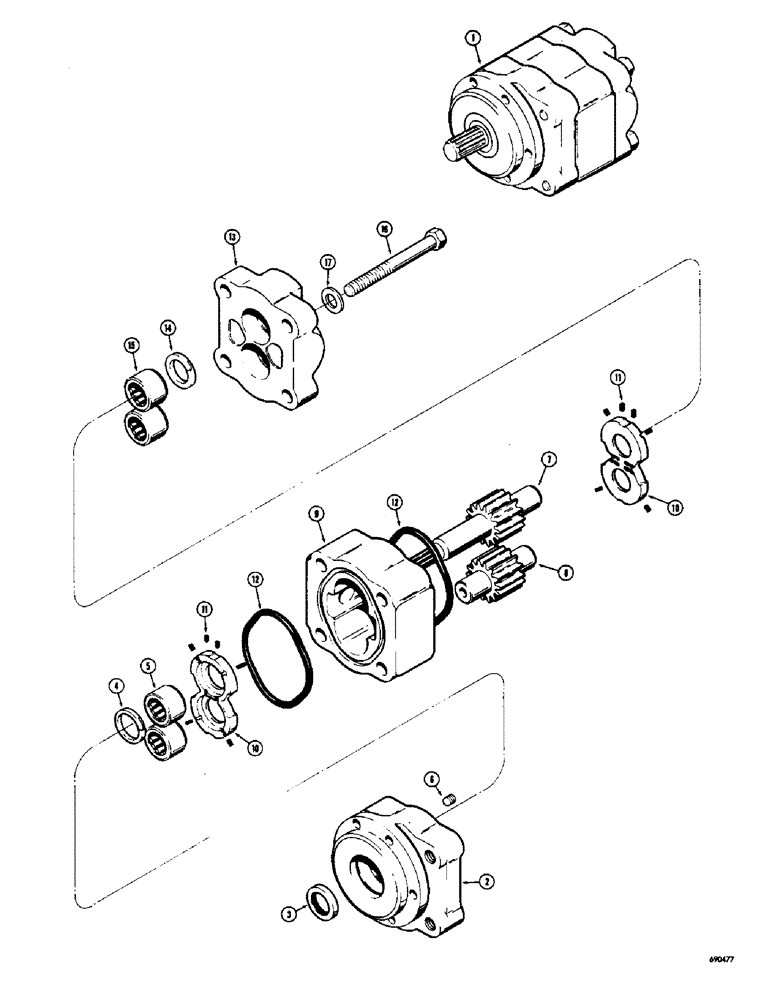

Запчасти Case W7 (273A) - L19456 HYDRAULIC PUMP (08) - HYDRAULICS

1

L19456

PUMP

- hydraulic, 33 G.P.M. at 2150 R.P.M. (Commercial Shearing #C230-70), Includes: Ref. 2 - 17

1шт.

L32417

COVER ASSEMBLY - shaft end, Includes: Ref. 2 - 6

1шт.

2

NSS

NOT SOLD SEPARAT

COVER - shaft end

1шт.

3

L32418

SEAL,26.99mm ID x 42.93mm OD x 7.92mm Thk

- pump shaft

1шт.

4

L32096

RING

- wear

1шт.

5

L32097

BEARING, ROLLER, CYL

- roller, pump shaft and driven gear

2шт.

6

L32419

X

PLUG - end cover

1шт.

L32420

GEAR

SHAFT AND GEAR SET - drive and driven, Includes: Ref. 7 and 8

1шт.

7

NSS

NOT SOLD SEPARAT

SHAFT AND GEAR - drive

1шт.

8

NSS

NOT SOLD SEPARAT

GEAR - driven

1шт.

9

L32421

HOUSING

- gear

1шт.

10

L32101

PLATE

- thrust

2шт.

11

L32099

SEAL

- pocket

12шт.

12

L32100

SEAL,Square, 3.17mm Thk x 101.6mm ID, 70 Duro

- gear, Serial Range: housing-cover

2шт.

L32422

COVER

ASSEMBLY - port end, Includes: Ref. 13 - 15

1шт.

13

NSS

NOT SOLD SEPARAT

COVER - port end

1шт.

14

L32096

RING

- wear

1шт.

15

L32097

BEARING, ROLLER, CYL

- roller, pump shaft and driven gear

2шт.

16

13-1080

BOLT,Hex, 5/8" - 11 x 5", Gr 5

HHCS - 5/8" - 11 NC x 5"

4шт.

17

D31957

WASHER

- special

4шт.
