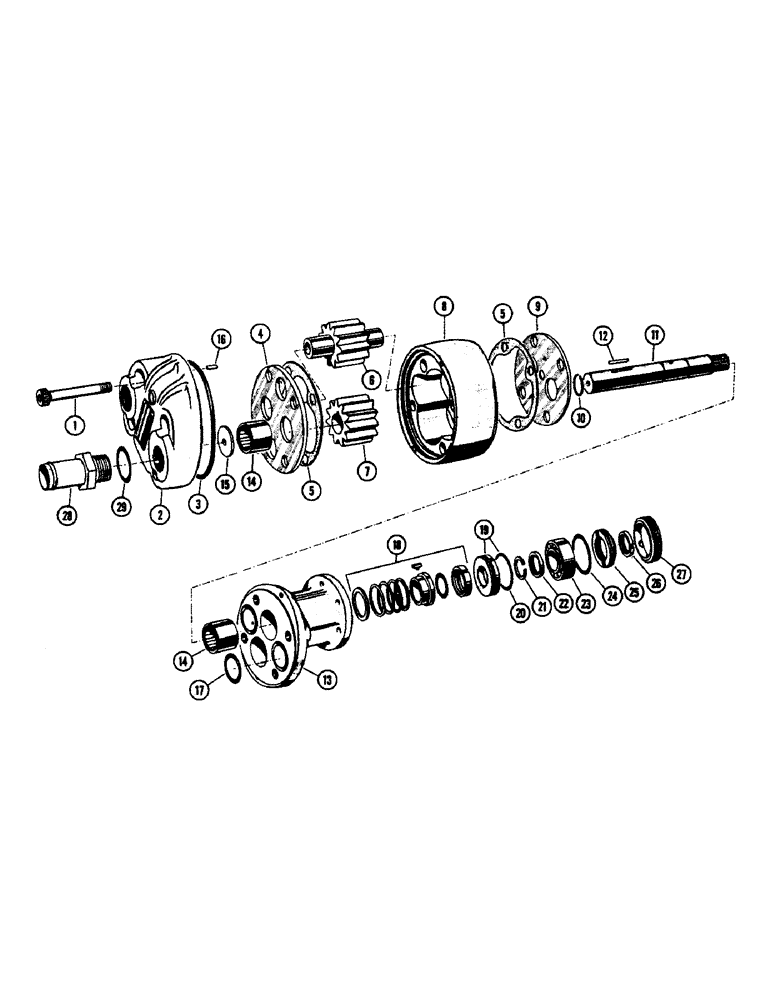

Запчасти Case W7 (272) - A17618 HYDRAULIC PUMP (08) - HYDRAULICS

A17618

PUMP - hydraulic, Includes: Ref. 1 - 27

1шт.

1

A9677

SCREW - pump, Serial Range: cover-body

4шт.

2

A18343

COVER ASSY

COVER - pump body

1шт.

3

NLS

NO LONGER SERVICED

SEAL - "O" ring, Serial Range: covers-body

2шт.

4

A18344

PLATE - wear

1шт.

5

D24014

SHIM,.002" Thk

Gear and wear plates .002" Thk

1шт.

5

NLS

NO LONGER SERVICED

SHIM - gear and wear plates (.001")

1шт.

6

R17794

GEAR

- driven

1шт.

7

R17795

GEAR

- drive

1шт.

8

A18345

BODY

- pump

1шт.

9

D24012

PLATE - wear

1шт.

10

14245

RING, SNAP

SNAP RING - seal retainer

1шт.

11

A18346

SHAFT

- drive

1шт.

12

R17820

AXLE PIN,4.76mm OD x 25.4mm L

KEY - drive, Serial Range: gear-shaft

1шт.

13

R17827

ADAPTER - pump

1шт.

14

D24009

BEARING

- needle

4шт.

15

D24018

WASHER

- thrust, drive shaft

1шт.

16

17258

AXLE PIN

DOWEL - pump body

4шт.

17

D24010

O-RING,0.139" Thk x 1.359" ID, -220, Cl 5, 75 Duro

SEAL - "O" ring pump cover and adapter to wear plates

4шт.

18

D25847

SEAL ASSY.

SEAL ASSEMBLY - drive shaft

1шт.

19

D24029

SEAL

SEAT - seal assembly, Includes: Ref. 20

1шт.

20

D24028

O-RING

SEAL - "O" ring, seat

1шт.

21

D24026

RING, SNAP

SNAP RING - bearing

1шт.

22

D24027

RETAINER

- snap ring

1шт.

23

D24025

BEARING

- ball, drive shaft

1шт.

24

D24024

O-RING

SEAL - "O" ring sleeve

1шт.

25

D24023

SLEEVE CYLINDER

SLEEVE - wiper seal

1шт.

26

D24022

SEAL ASSY.

SEAL - wiper

1шт.

27

D24021

RETAINER - wiper seal

1шт.

28

A17617

FITTING - pump inlet

1шт.

29

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - "O" ring, inlet fitting

1шт.
